MAINTENANCE

5. Remove the flame detector and ignition

cable wires from the flame detector and
ignitor contactor. Remove the ignitor and
flame detector per paragraphs 7.2, and 7.3.

6. Remove the grounding terminal from the

burner by loosening the upper screw and
sliding the connector from the grounding rod.
(See Figure 7.2).


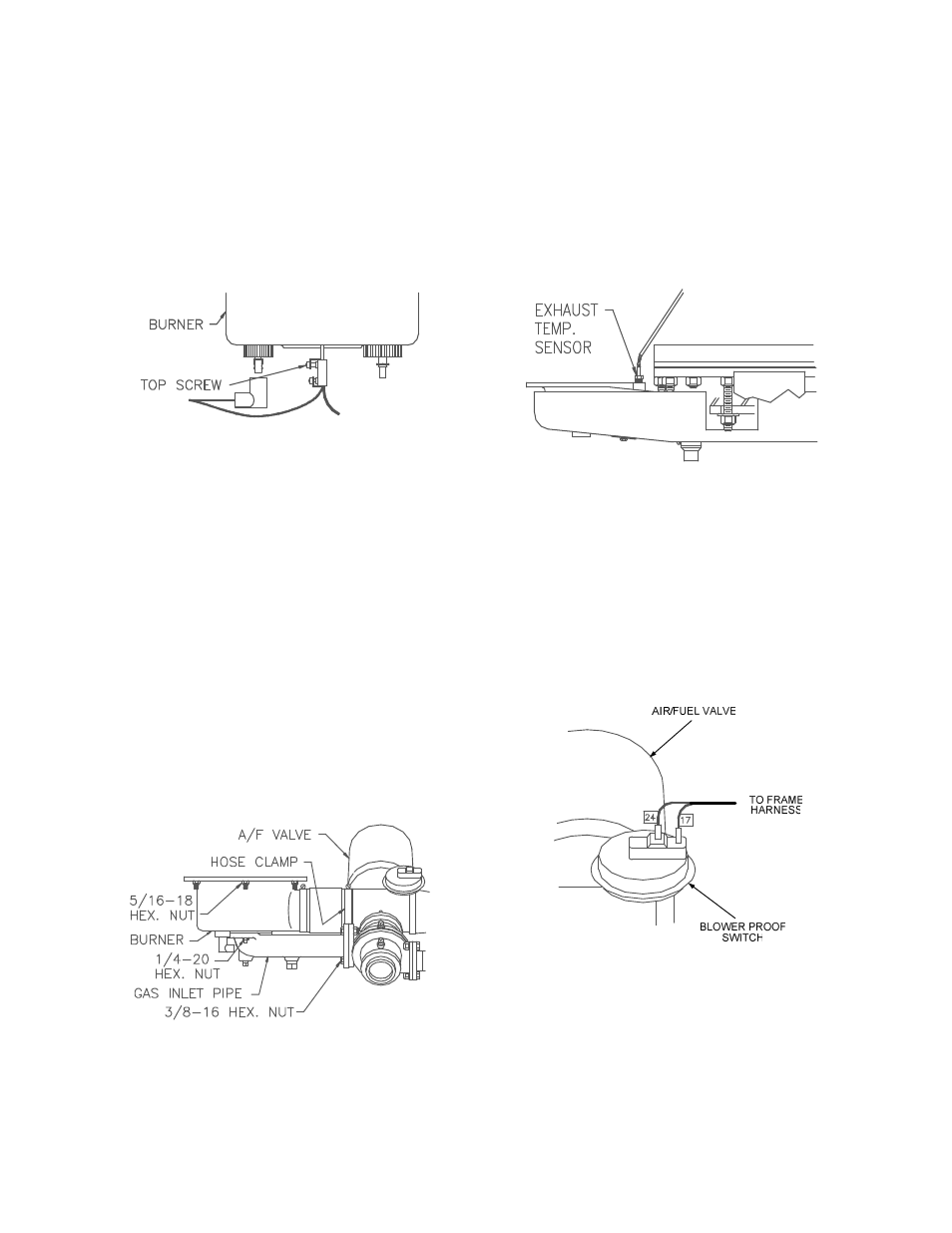

Figure 7.2

Grounding Terminal Location

7. Using a 7/16” socket or open end wrench

remove the four 1/4”-20 nuts on the gas inlet
pipe flange at the burner (See Figure 7.3).

8. Using two 9/16” wrenches remove the 3/8"-

16 hex nuts and bolts on the gas inlet pipe
flange at the air/fuel valve (See Figure 7.3).

9. Loosen the hose clamp nearest the air/fuel

valve outlet on the air/fuel valve to burner
adapter (See Figure 7.3).

10. Using a 1/2” socket wrench remove six

5/16-18 hex nuts supporting the burner (See
Fig. 7.3).



Figure 7.3

Burner Disassembly Diagram

11. Lower the burner while sliding the air hose

off the air/fuel valve. Remove the burner
through the rear of the unit.

12. Disconnect the exhaust temperature sensor

by unscrewing it from the exhaust manifold
(See Fig. 7.4).




Figure 7.4

Exhaust Sensor Connector Location


13. Disconnect the air/fuel valve wire harness,

the 12 pin connector, from the control panel.

14. Disconnect wires #24 and #17 from the

blower proof switch (See Figure 7.5).

Figure 7.5

Blower Proof Switch Wire Locations

15. Loosen the hose clamp on the air/fuel valve

inlet and slide the clamp back towards the
blower (See Figure 7.6).
