CHAPTER 4 – INITIAL START-UP
OMM-0086_0D AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 63 of 210
GF-133
Ph.: 800-526-0288
03/20/14
It is important to perform the following procedure as outlined. This will keep readjustments to a
minimum and provide optimum performance.
Natural Gas Combustion Calibration
1. Open the water supply and return valves to the unit and ensure that the system pumps
are running.
2. Open the natural gas supply valve to the unit and then slowly open the Pilot gas valve.
3. Set the control panel ON/OFF switch to the OFF position
4. Turn on external ac power to the unit. The display will show loss of power and the time and
date.
5. Set the unit to the manual mode by pressing the AUTO/MAN key. A flashing manual valve
position message will be displayed with the present position in %. Also, the MANUAL LED
will light.
6. Adjust the air/fuel valve position to 0% by pressing the
▼ arrow key.
7. Ensure that the leak detection ball valve downstream of the SSOV is open and the
manometer is attached and functioning properly.
8. Set the ON/OFF switch to the ON position.
9. Change the valve position to 50
% using the ▲ arrow key. The unit should begin its start
sequence and fire.
10. Next, verify that the gas pressure downstream of the SSOV is set to 7.5” to 8.3” W.C. If
gas pressure adjustment is required, remove the brass hex nut on the SSOV actuator to
access the gas pressure adjustment screw (Figure 4-3). Make gas pressure adjustments
using a flat-tip screwdriver to obtain a gas pressure between 7.5” and 8.3” W.C.

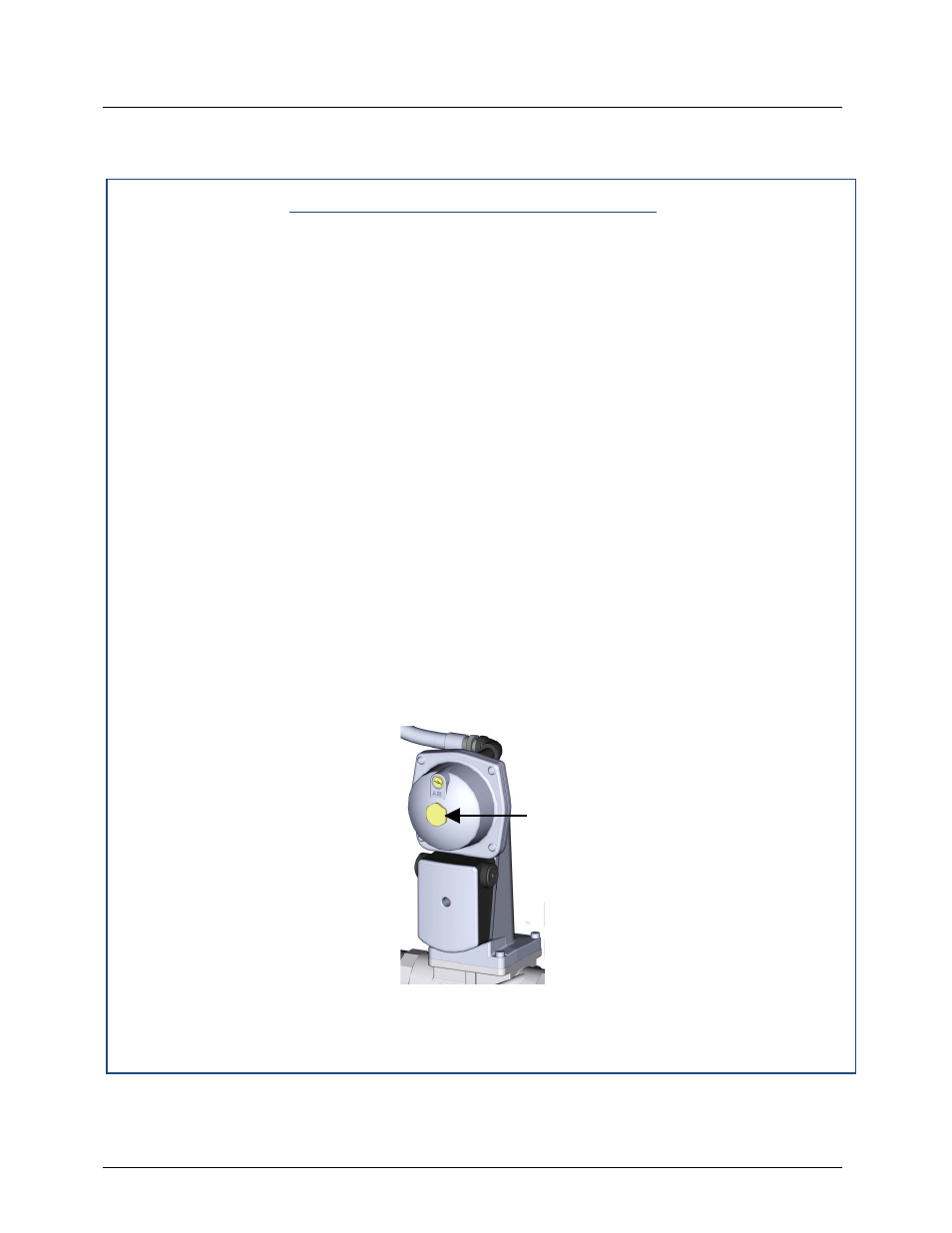

Figure 4-3: Gas Pressure Adjustment Screw Location
BRASS HEX HEAD
(Remove to access
the Gas Pressure
Adjustment Screw).
