Chapter 2 Installation and Assembly
2-10
2
English ENGLISH
5. Intermediate support bracket (OP-42373) mounting method
To prevent a malfunction of SL-CS32HS to SL-CS64HS due to vibration, mount an intermediate
support bracket in one or two intermediate positions as appropriate. Mount the bracket correctly by
following the instructions below. For information regarding the mounting position,
➮ see the “1-4
Dimensional Drawings” (page 1-5).

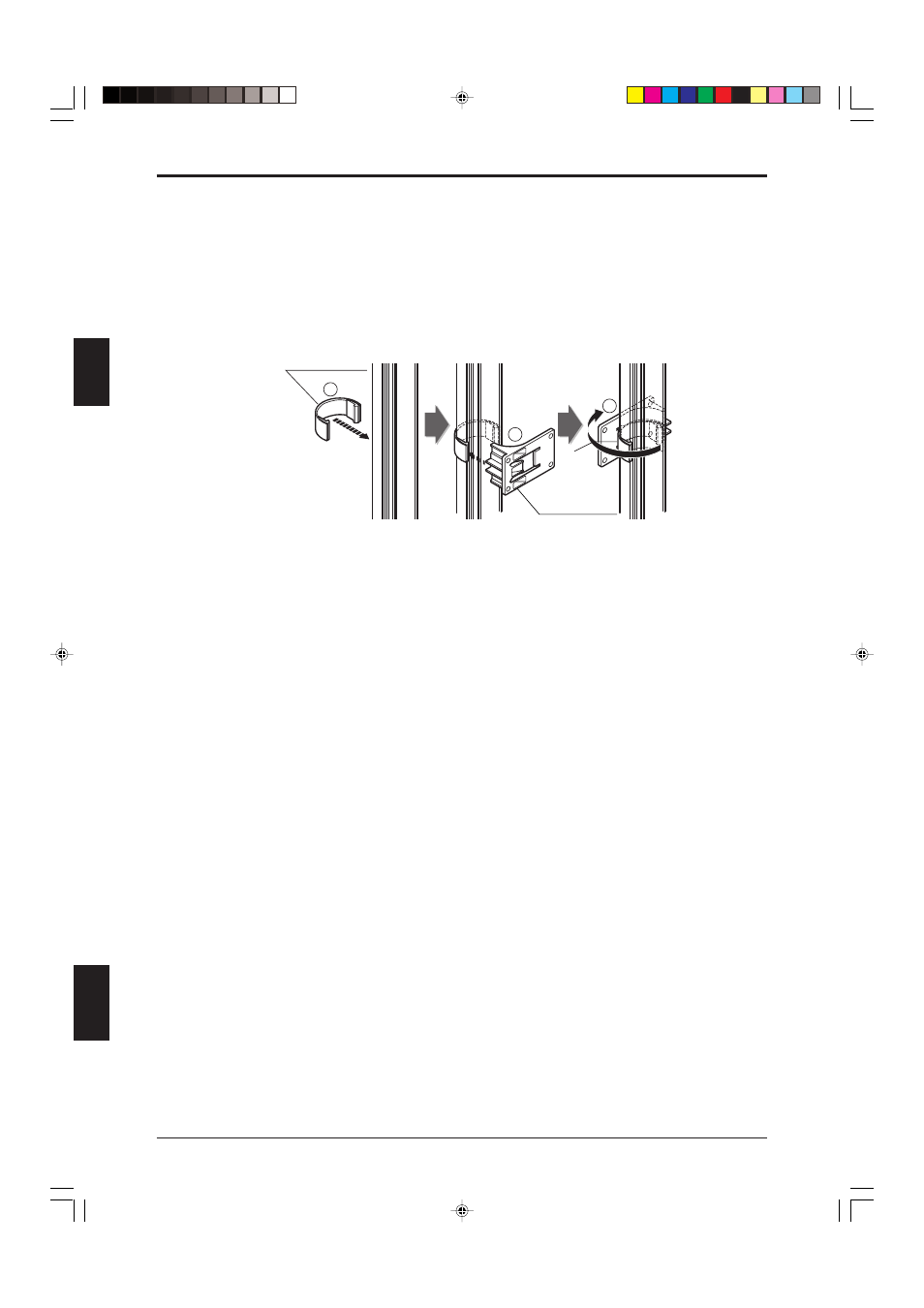

1. Mount the intermediate support bracket A on the SL-CHS.
2. Slide the intermediate support bracket B onto the intermediate support bracket A, and determine its
mounting position.
3. Attach intermediate support bracket B using four screws.
1
2
3
Intermediate
support bracket A
Intermediate
support bracket B
