Readweight ladder logic example, Readweight ladder logic example -6, Readweight ladder logic example/local – Hardy HI 1746-WS User Manual
Page 80
HI 1746-WS WEIGH SCALE MODULE
6-6
READWEIGHT
Ladder Logic
Example

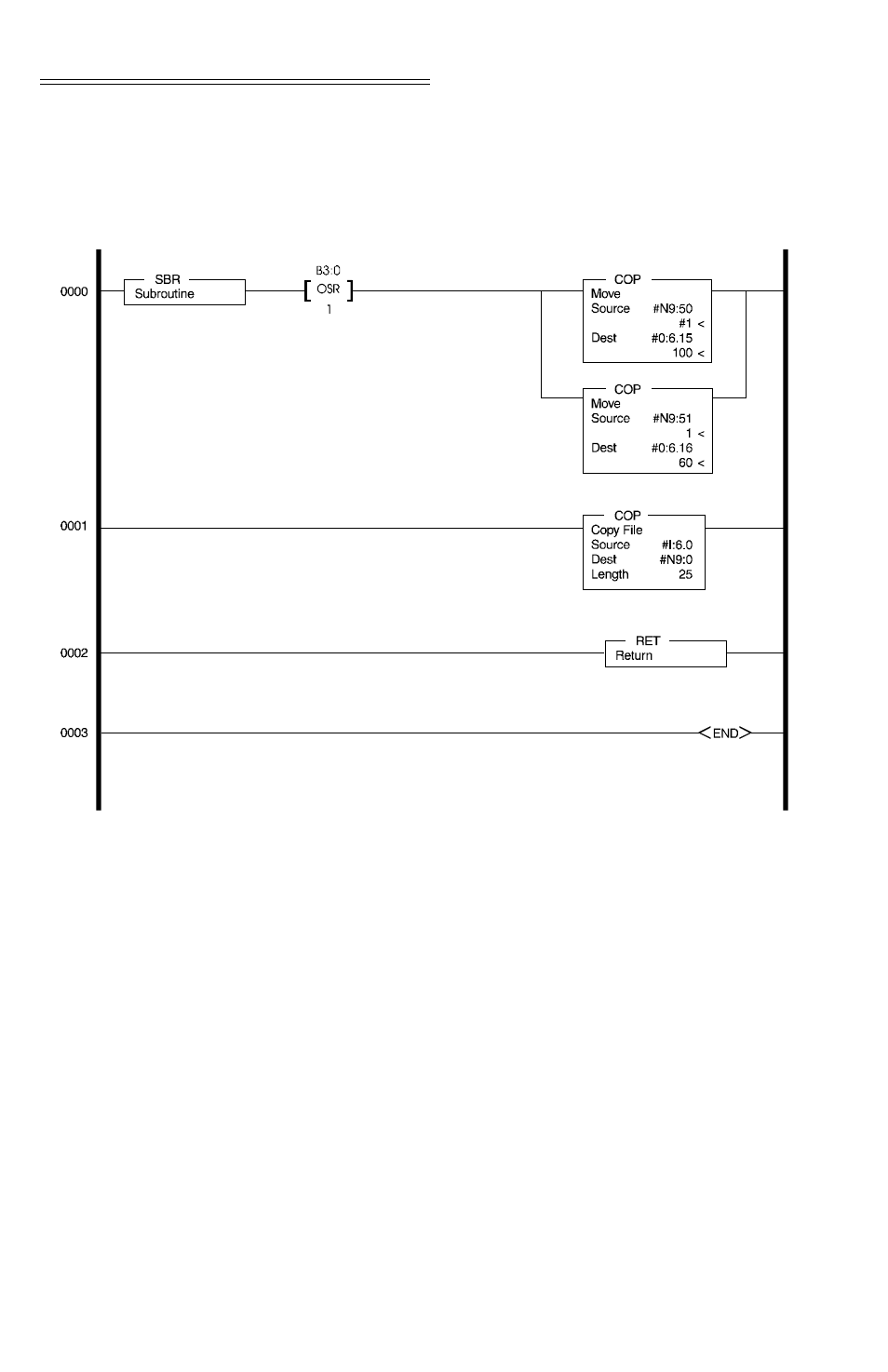

FIG. 6-1 READWEIGHT LADDER LOGIC EXAMPLE/LOCAL MODE OF
OPERATION
Block Transfer, Read
Ladder Logic Example
for Remote Mode
Operation
For Remote Mode Operation Block Transfer, Read
Examples go to the Hardy Website (http://www.har-
dysolutions.com) and Click on Support.
