HI 1746-WS WEIGH SCALE MODULE
4-2

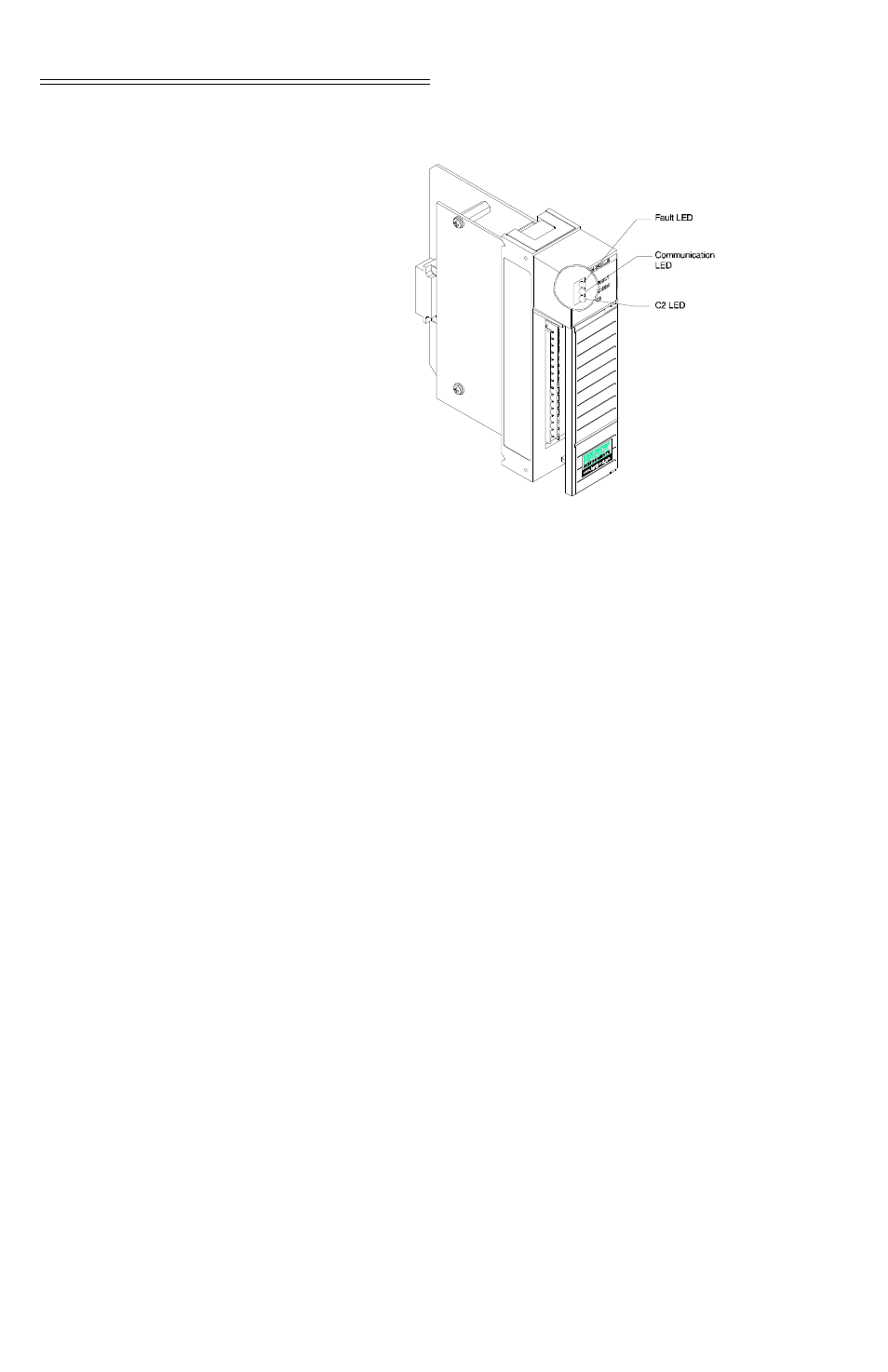

FIG. 4-1 MODULE LEDS
LEDS
Run/Fault LED Flashing Green Self-Test is running.
Flashing Green (5Hz Flash Speed) - Self-Test
Failed, or no calibration.
Steady Green Self-Test Passed
Flashing Red Weigh Scale Module has a fault.
Steady Red Module has a major problem.*
NOTE: * Contact Hardy Customer Support for assistance.
Comm. LED Steady Green Normal Operation
Flashing Green Block transfer is being performed.
LED is Off No Communication
C2 LED Steady Green A C2 load cell(s) has been found.
LED is Off No C2 load cells have been found.
Steady Red Unable to read loadcell data or the
loadcell data is in error.
Setting Up
Communications
Between the SLC and
the HI 1746-WS Weigh
Scale Module To set up communication between the SLC 5XX and
the HI 1746-WS Weigh Scale Module you will need
to select or enter the following information into the I/
O Configuration section of your software:
