Page 29: Hardy hi 215it junction box wiring diagram - 3-9
Chapter 3 - Installation
3-9
Hardy Load
Sensor with C2

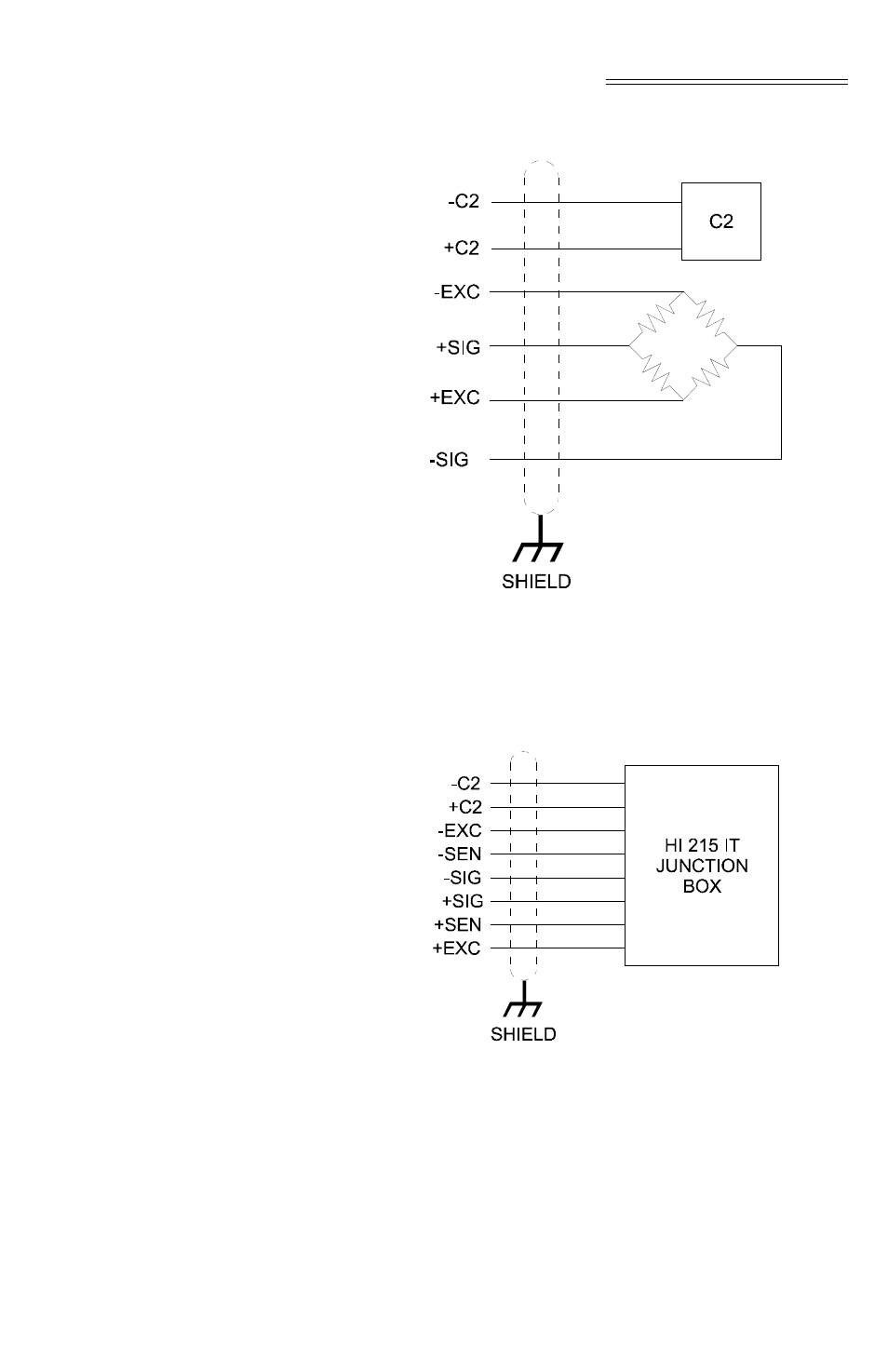

FIG. 3-8 HARDY LOAD SENSOR/C2 WIRING
DIAGRAM
Hardy HI 215IT
Junction Box
FIG. 3-9 HARDY HI 215IT JUNCTION BOX
WIRING DIAGRAM
NOTE:
When connecting the Hardy HI 215IT Junction Box
you must remove the two factory installed jumpers
that are connected to contacts 2&3 and 6&7 on the
module and install sense lines.
