HI 1746-WS WEIGH SCALE MODULE
3-2
•
Wear an approved wrist-strap
grounding device when handling
the module.
•
Touch a grounded object or sur-
face to rid yourself of any elec-
trostatic discharged prior to
handling the module.
•
Handle the module from the
bezel in front away from the con-
nector. Never, NEVER touch the
connector pins.
•
Never install, remove, or wire
any module while the power is
on. Always disconnect the power
from the SLC when working on
the module.
•
Do not install the module right
next to an AC or high voltage DC
module.
Setting the Jumper
for Local or
Remote Mode of
Operation
Step 1.
Remove the module from its package by
grasping the front cover. (See Fig. 3-1)

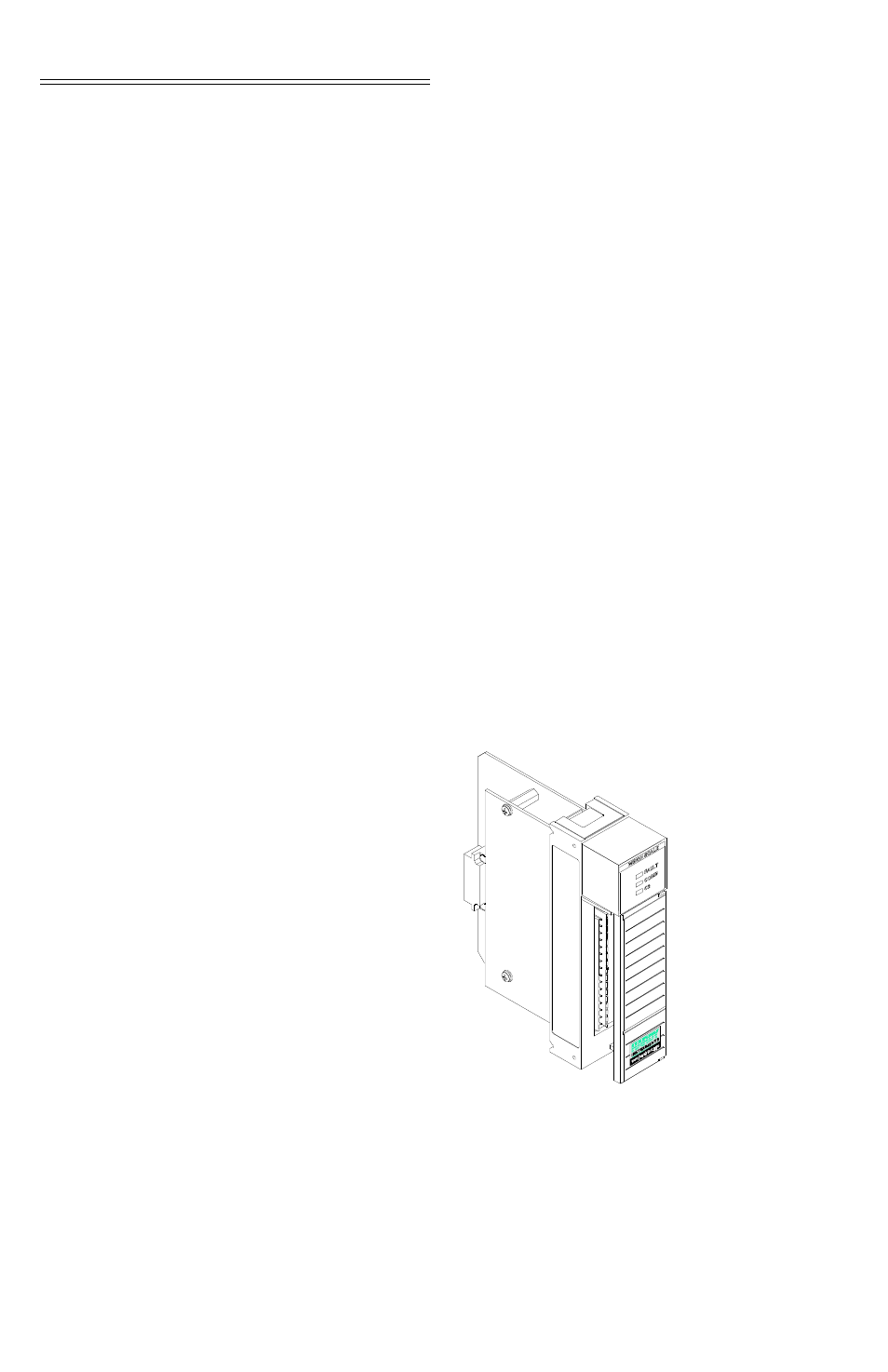

FIG. 3-1 HI 1746-WS WEIGH MODULE IN
PROPER ORIENTATION
Step 2.
Place the jumper either on OFF (Default)
for Local or ON for Remote operation.
(See Fig. 3-2)
