64 b
uildiNg A
P
ro
64 N
etwork
The diagrams that follow use generic input and output module icons. Any
Pro64 I/O device can be substituted unless otherwise noted.
Auto Mode Connections
In Auto Mode, the 6416o’s A‑Net ports on the rear panel can be connected in
any combination to other Pro64 devices. In the following examples, network
performance and functionality are unaffected by the changes in cabling.

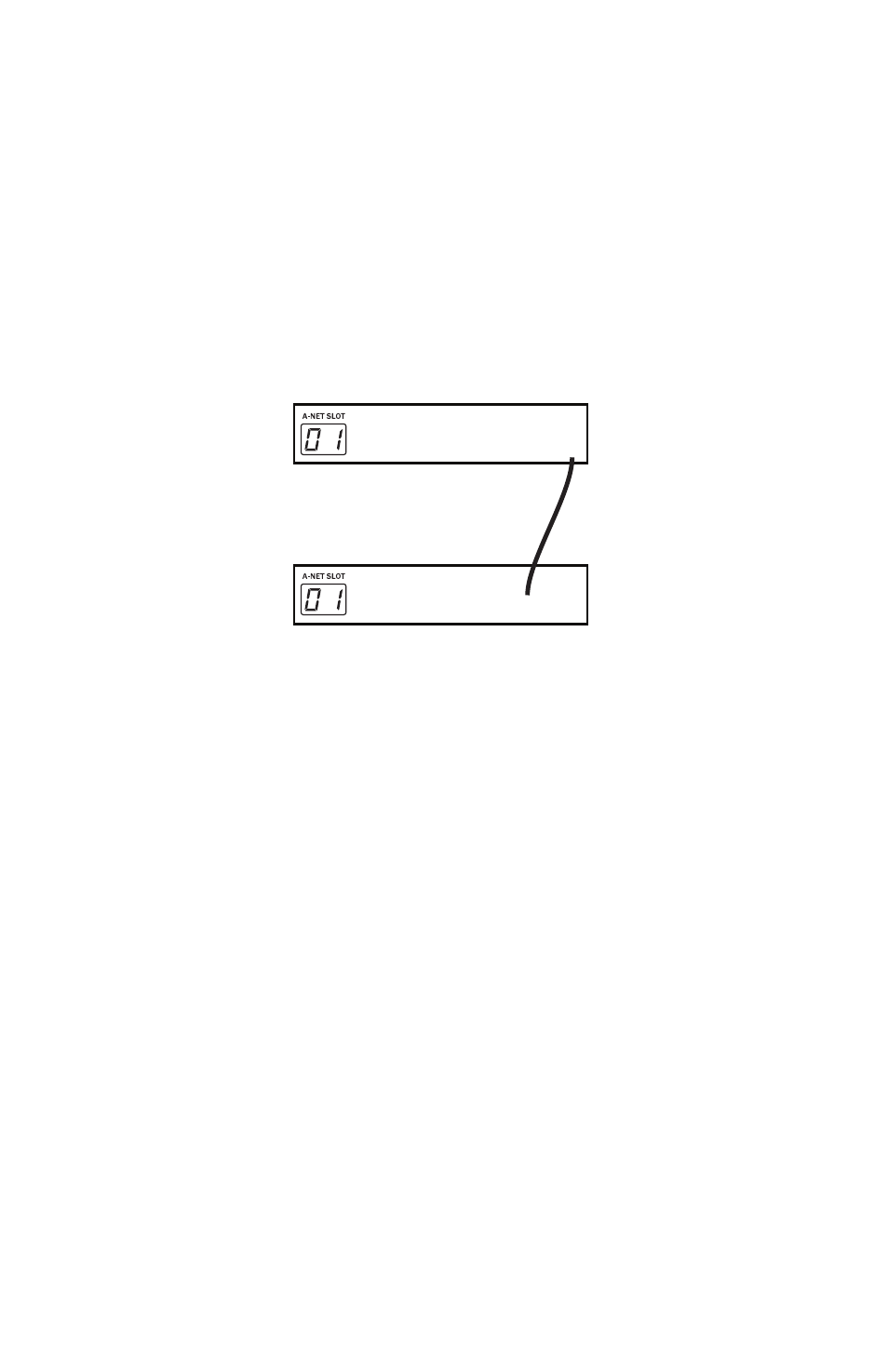

Example 1: Port A connected to Port B
B A
B A
Input
B A
Output
B A
Input
B A
Output
B A
Input
B A
Input
B A
Output
1 2
Merger
3 4 5 6 7 8 9 10
B A
B A
Input
B A
Output
B A
Input
B A
Output
B A
Input
B A
Input
B A
Output
1 2
Merger
3 4 5 6 7 8 9 10
The A-Net cable can be connected to either Port A or Port B. Reversing the
A-Net connections causes the same results. Either port can be used to
expand the network.
Up to 16 audio Slots can be output as analog signals from the 6416o Output
Module. The Pro64 devices shown can be connected using either Port A
or Port B. In both cases, the channels made active on the network’s input
modules will be available at the output module.
Remember that the entire 64‑channel A‑Net stream (at 48kHz) is always
received and transmitted through every Pro64 module. The A‑Net Slot
selection simply tunes a module in to a specific range of channels.
