34 vdc c
oNFigurAtioN
Query Functions (Get Info)
When a module is edit locked, its front‑panel channel buttons can be used to
get Slot info. Pressing any channel button will display the selected channel’s
A‑Net Slot number in the A‑Net Slot display.
For example, if an input module is set to the A‑Net Slot range starting at 17,
pressing channel button 2 will display “18,” channel button 3 will display “19,”
etc.

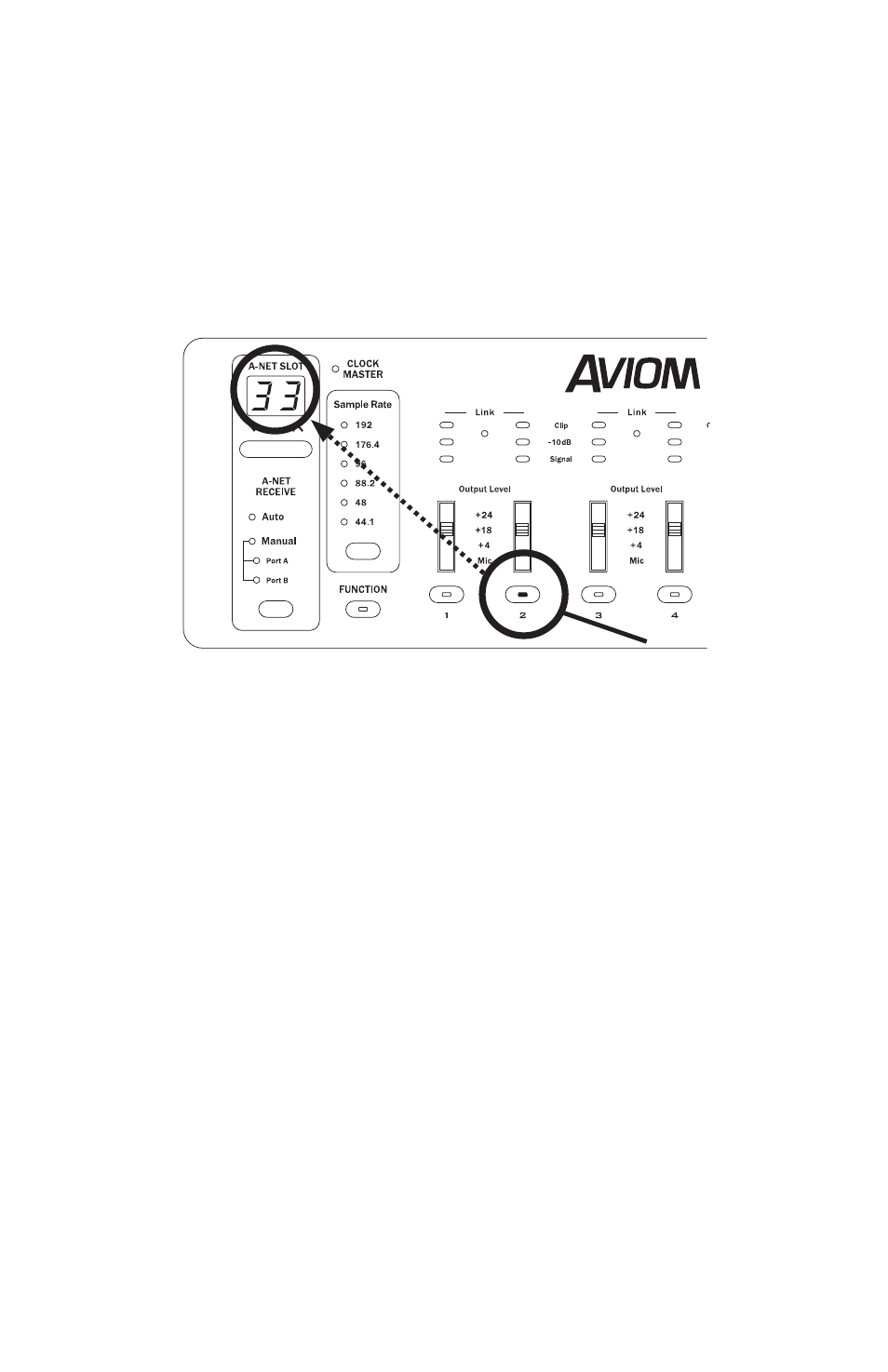

On a 6416o module set to the A-Net Slot range starting at 33, pressing the
Channel 2 button displays A-Net Slot 34 when the module is edit locked.
Pressing the Channel 3 button will display “35,” pressing the Channel 4
button will display “36,” etc.
Channel activation status is not affected by the use of the query function. It
is used for information only.
To exit the query function, press E
dit
l
oCk
followed by E
ntEr
to return to
normal operation.
Pro64 modules are set to provide query information whenever the network
is in Managed Mode.
