A-Net Slot Configuration

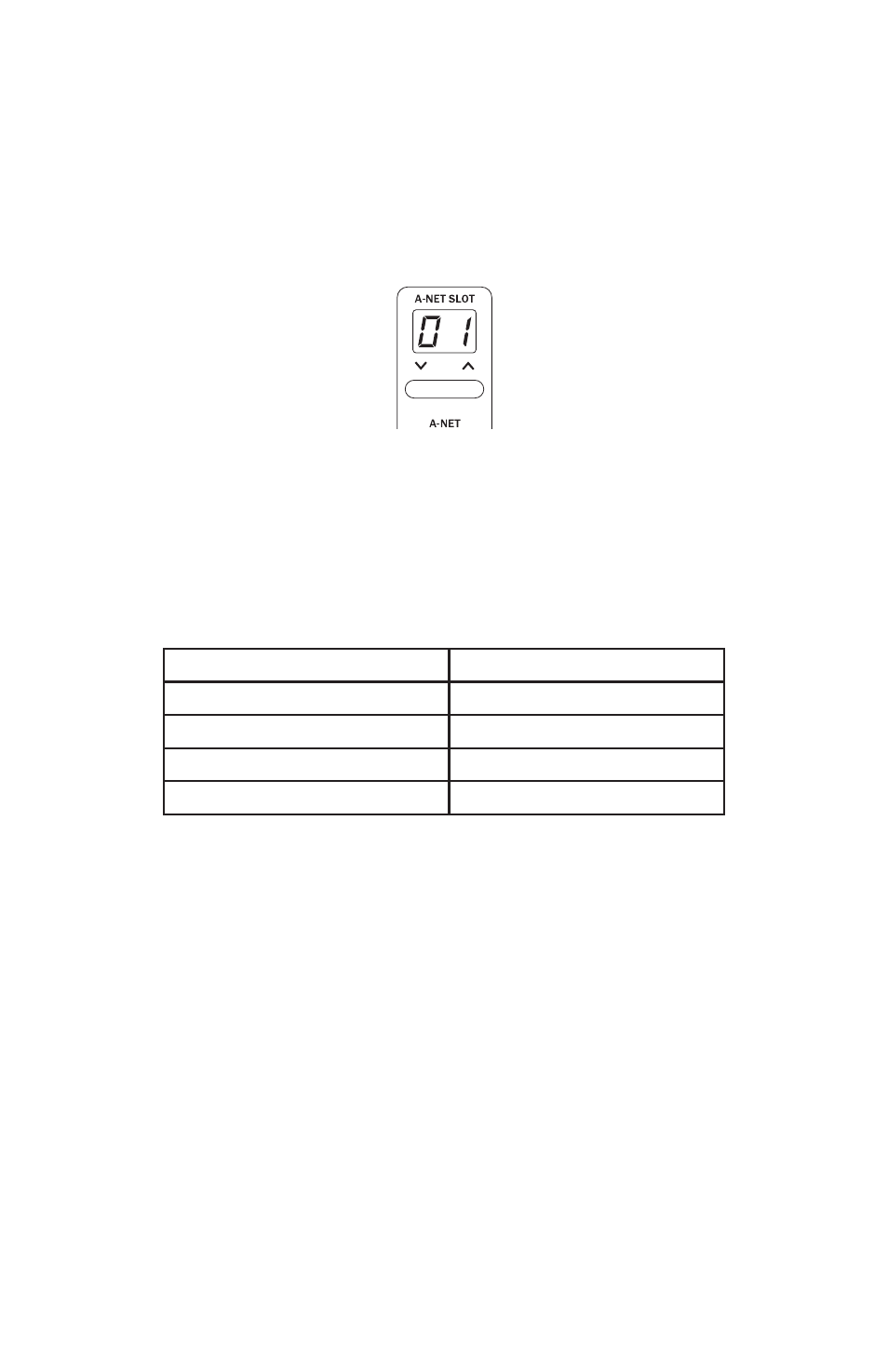

The A‑Net Slot section of the interface is used to set the range of A‑Net
Slots from which the 6416o will draw its audio channels. There are two
components: the A‑Net Slot display and the inc/dec buttons used to select
a value.
Press the up/down buttons to select an A-Net Slot range.
On a sixteen‑channel module like the 6416o, the A‑Net Slot display will move
in increments of sixteen Slots. The A‑Net Slot range display will wrap as it
reaches the end of the list of available values. The number shown in the
display corresponds to the first Slot in a group of sixteen sequential Slots,
one per channel button. The available base Slots are 1, 17, 33, and 49.
Starting Slot Displayed A-Net Slot Range
01 Slots 1‑16
17 Slots 17‑32
33 Slots 33‑48
49 Slots 49‑64
Keep in mind that the number of available Slots is determined by the current
network sample rate as set by the Clock Master.
Setting the A-Net Slot Range
To set a Slot range, use the inc/dec selection buttons found below the A‑Net
Slot display to select the desired range. When the selection button is pressed,
the new range displayed will start to blink, as will the Enter/Cancel button’s
LED. This indicates that confirmation is required to complete the change.
Press E
ntEr
to set a new range or press C
anCEl
to exit without changing the
A‑Net Slot range and return to the previous setting. If no press of the Enter/
Cancel button is detected within a brief period of time, the interface will
automatically cancel the range change request, returning to the previous
state.
