Page 66
57
r
eAr
P
ANel
F
eAtures
a mic‑level input signal, set the front‑panel output level switch to the
M
iC
position which includes a ‑40dB pad.
The 6416o outputs can be individually set to output line- or mic-level analog
audio signals.

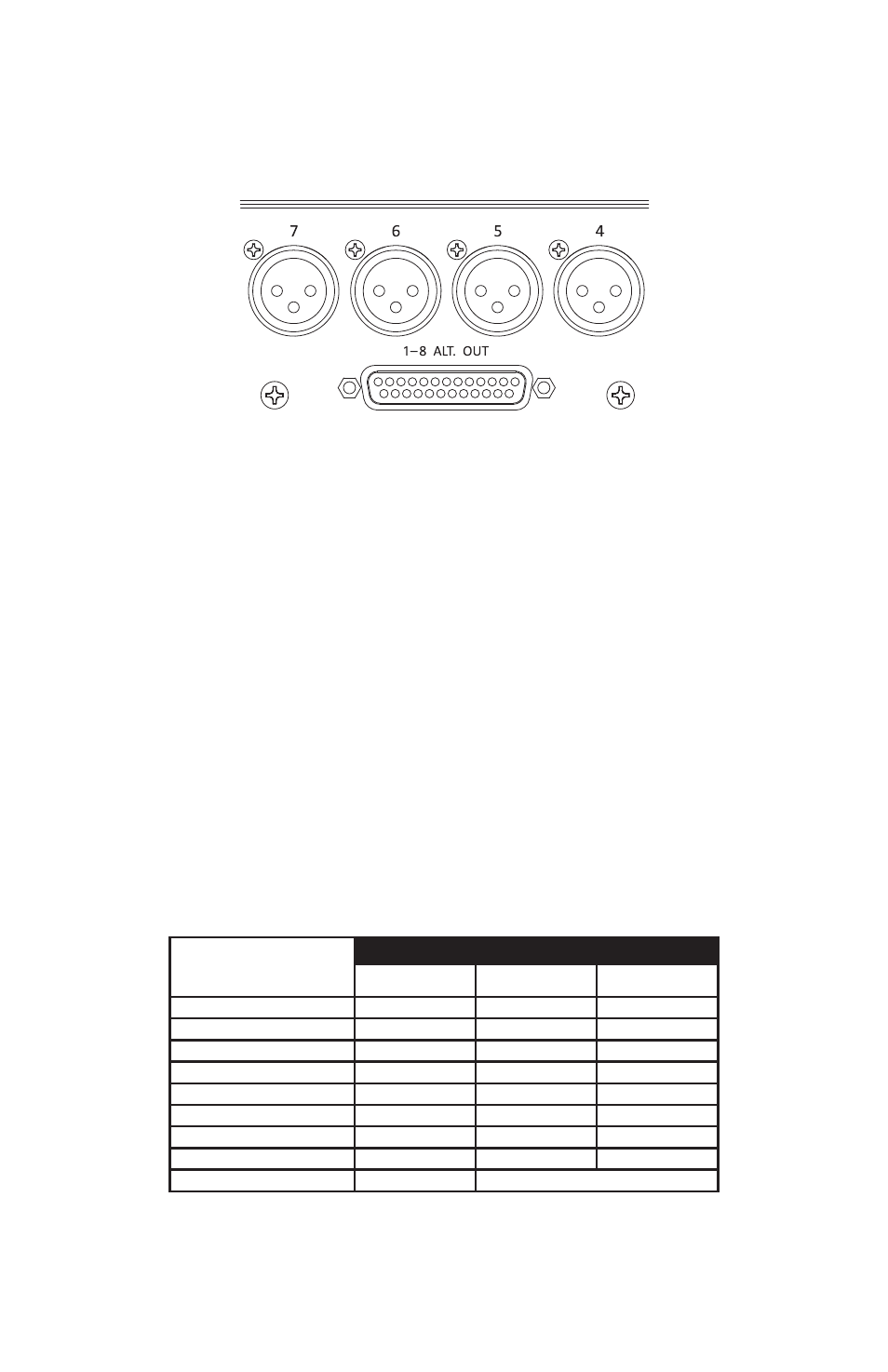

DB25 Alternate Audio Out
Two female DB25 multipin connectors are provided as an optional audio
output on the 6416o. Channels 1‑8 appear on one jack and channels 9‑16 on
the other. The DB25s are wired to the industry accepted Tascam® compatible
analog wiring standard. Always use DB25 cables wired to analog audio
standards; never connect multipin cables wired for AES3 digital connections.
N
ote
: Do not use the XLR jacks and DB25 Alternate Out connections for
the same set of channels on the 6416o simultaneously.
DB25 Pinout
Breakout cables for DB25‑to‑TRS, DB25‑to‑XLR connections, etc., are readily
available. To create a custom cable for the Audio Thru/Alternate In function,
use the following table and diagram.
Cable Number
DB25 Pin Number
Hot
Cold
Ground
1
24
12
25
2
10
23
11
3
21
9
22
4
7
20
8
5
18
6
19
6
4
17
5
7
15
3
16
8
1
14
2
No Connect
13
