36 vdc c
oNFigurAtioN
When a rear-panel VDC port has been assigned to a VDC Slot, its In Use
LED will be on.
Selecting a VDC Slot is done with the inc/dec buttons below the display.
Pressing the inc/dec buttons will cause the display to scroll, and will wrap at
the end of the numeric list.
As the VDC Slots are displayed, any VDC Slot with an active input will light
the In Use LED. If the In Use LED is not lit for a selected VDC Slot, no input is
assigned to that VDC Slot and all of the VDC type LEDs in the Assign Port list
will be unlit when the VDC out has been assigned locally.
The available VDC data types for the 6416o are:
• RS‑232
• MIDI In
• MIDI Out
• GPIO In
GPIO Out •

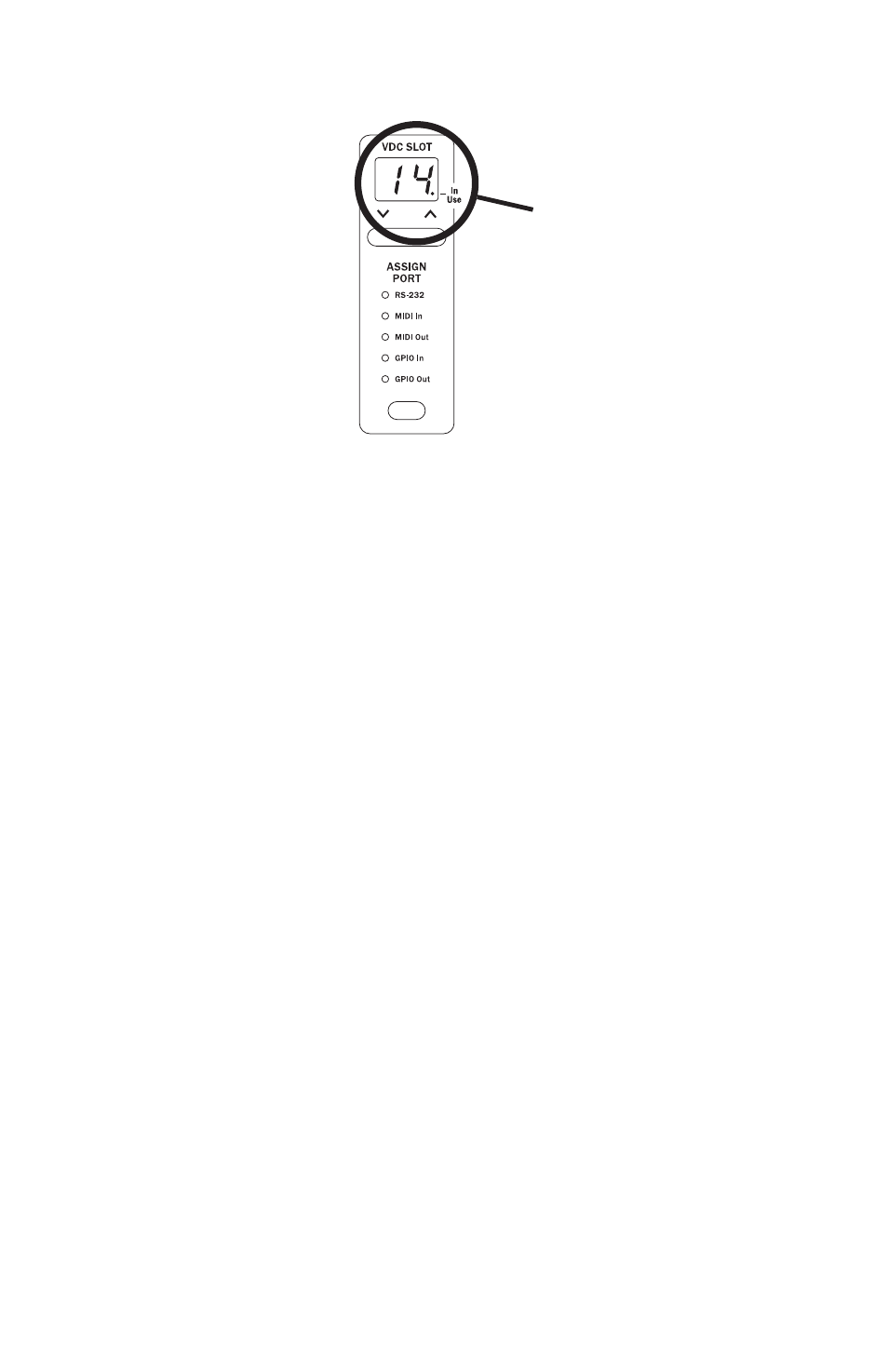

VDC In Use LED
The VDC In Use LED serves to indicate that a Virtual Data Cable Slot has a
current active input assignment. Output assignments for MIDI Out or GPIO
Out will not light the In Use LED.
The In Use LED will light whenever a valid assignment (GPIO In, MIDI In, or
RS‑232) has been made anywhere in the network. The VDC Slot can only be
used for the assigned data type until it has been deactivated at the point in
the network where the input source has been assigned.
