56 r
eAr
P
ANel
F
eAtures
Rear Panel Features
All 6416o rear‑panel features and functions are described in this section. The
rear panels of the 6416o and 6416o v.2 are identical.
AC Power
Pro64 modules use switching power supplies that can operate at 100‑240V
and from 50‑60Hz, meaning that they can be used with most of the world’s
AC power systems by simply changing the line cord. The 6416o is equipped
with a standard grounded IEC power inlet (with fuse), which can accept the
interchangeable IEC power cord.
Fuse
The fuse holder is spring‑loaded and has space for two fuses, one main and
one spare (optional). Press the fuse holder cover to access the fuse. When
checking or replacing a fuse, always power off the Pro64 unit and remove the
line cord from the AC power source.
Always replace the fuse with one of the same rating as that being changed.

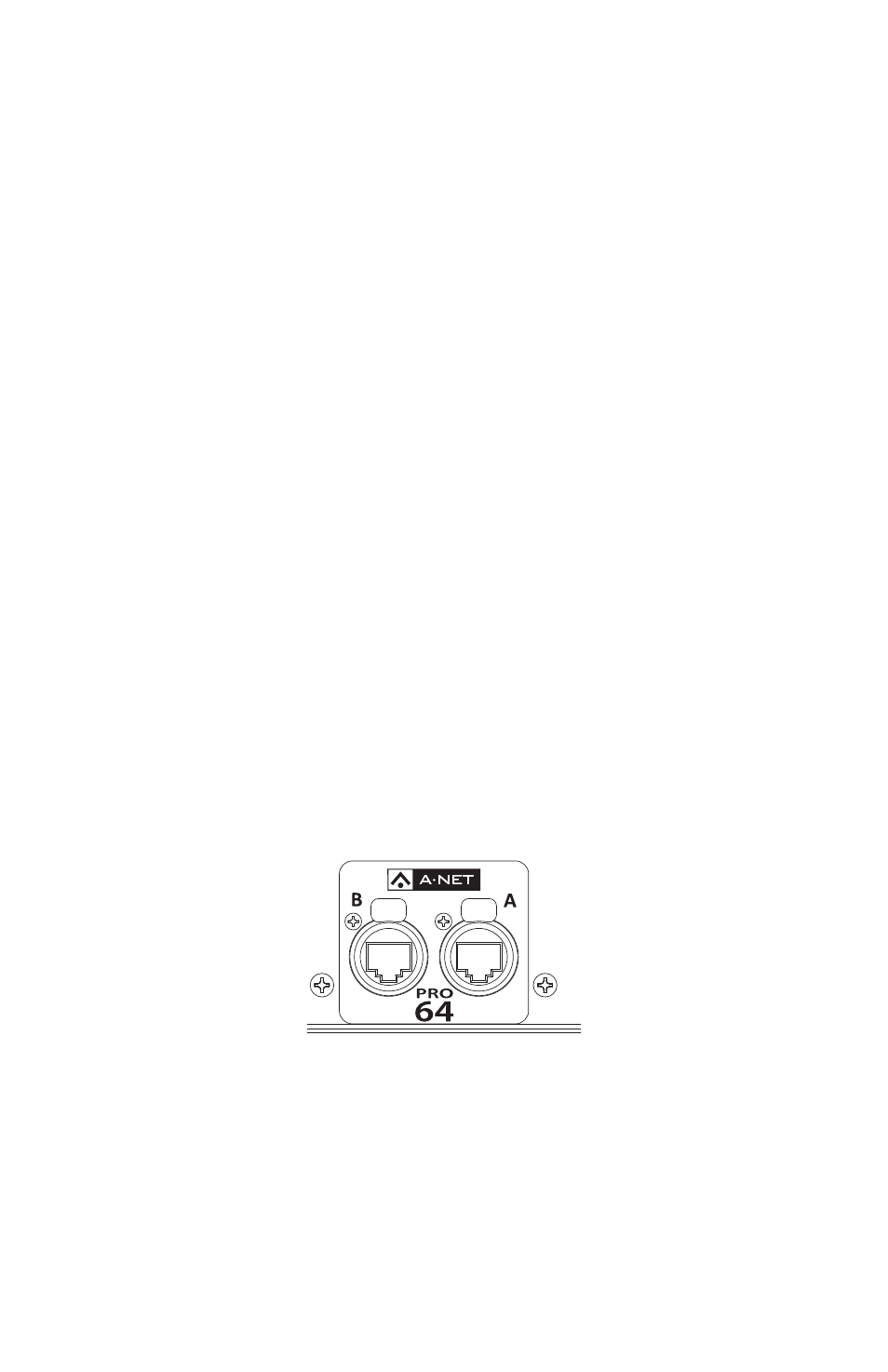

A-Net Ports
Two EtherCon jacks are provided for A‑Net connections, labeled A and B.
Connections can use standard RJ45‑style cables or cables outfitted with
the locking EtherCon connector. Refer to the section on network modes for
additional information about using these jacks.
Each Pro64 device has two A-Net ports.
Balanced Line-Level Outputs
The sixteen male XLR line‑level output jacks on the 6416o can deliver
balanced audio signals to mixing consoles, recording devices, etc. To use
either version of the 6416o Output Module with audio devices that require
