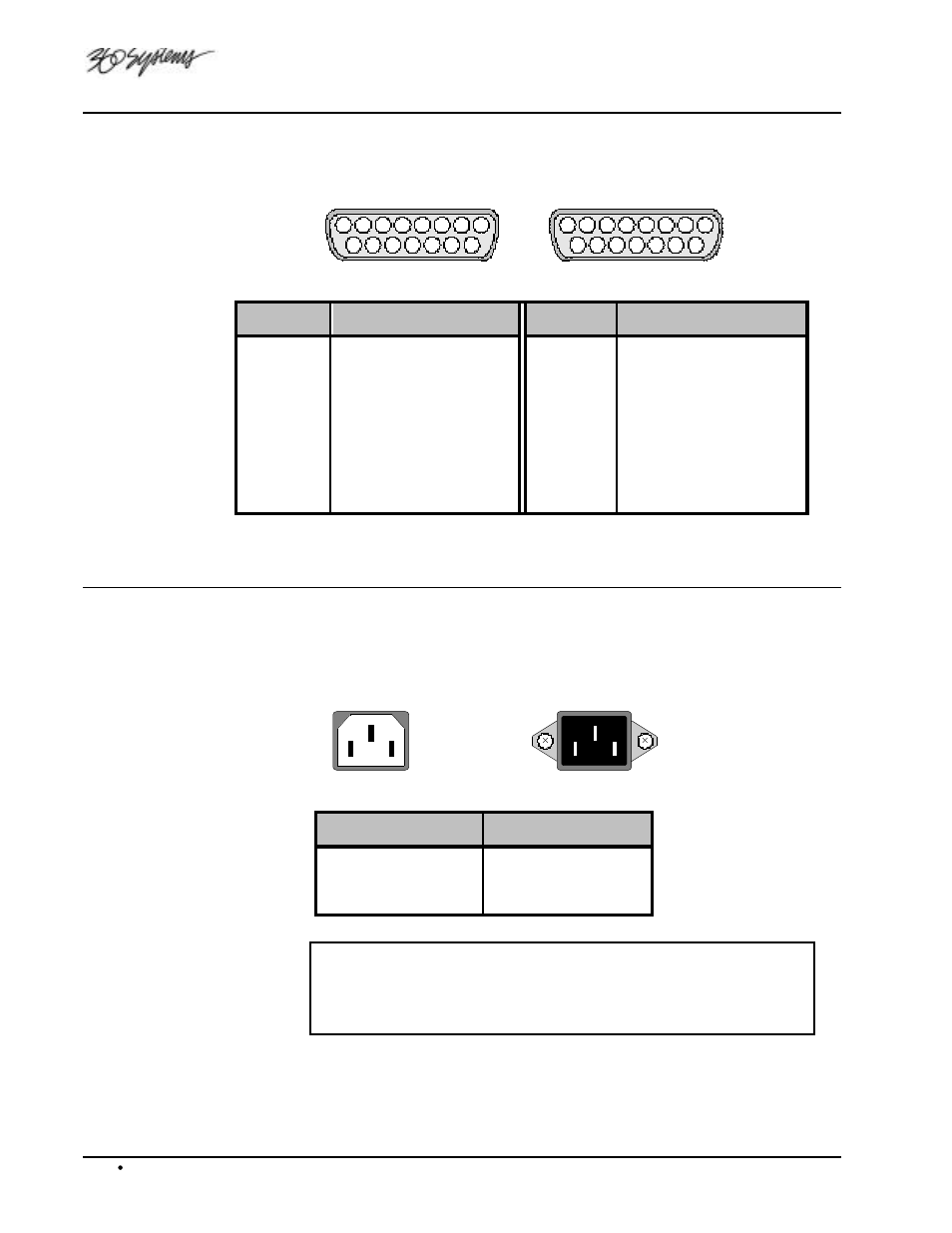

GPI/O Connector Pinouts
Connector type: 15-pin D
5
4
3
2
1
9
10
11
12
6
7
8
13
14
15
Female on Chassis
5
4
3
2
1
9
10
11
12
6
7
8
13
14
15
Male on Cable
Pin #
Signal
Pin #
Signal
1
Ground
9
In 1
2
N/C
10
In 2
3
N/C
11
In 3
4
N/C
12
N/C
5
In 4
13
Out 1
6
In 5
14
Out 2
7
In 6
15
Out 3
8
+ 5V, 100 mA Max
Note: N/C = not connected
AC Power Connector Pinouts
The table below lists pinouts for the AC POWER connector.
Connector type: 3-Pin IEC Male, latching.
1
3
2
2
3
1
Female on Cable
Male on Chassis
Pin #
Function
1
Neutral/Line 2
2
Line
3
Ground
Note
Latching works only with factory-supplied latching cord. Standard
non-latching IEC-320 cords will fit, but will not latch. If necessary,
replace the power cord only with Underwriters Laboratories Listed
cord of the same ratings.
