Hitachi Lightning 9900™ User and Reference Guide 83
5.2.2 Power Plugs

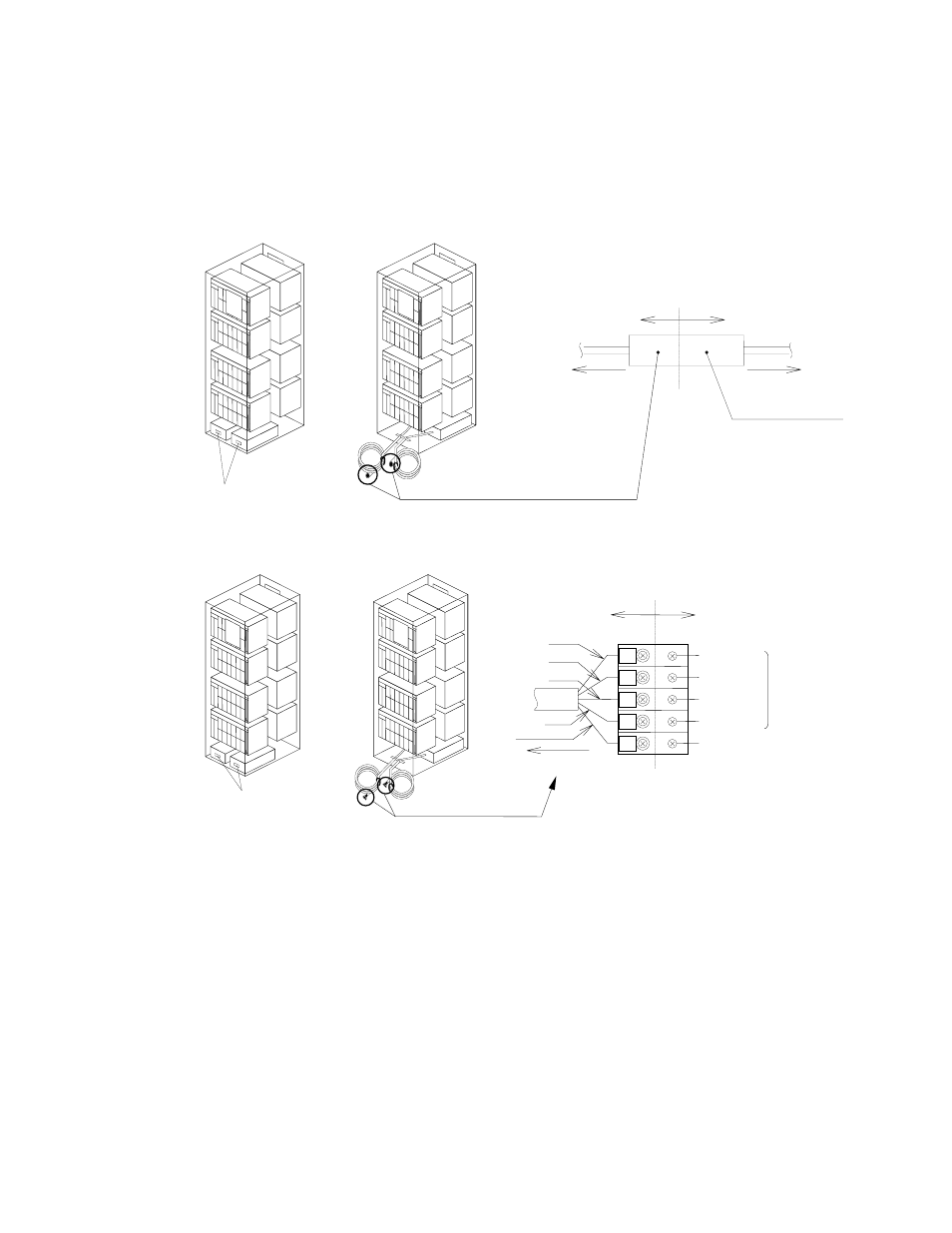

Figure 5.2 illustrates the power plugs for a three-phase 9960 disk array unit (USA). Figure 5.3
illustrates the power plugs for a three-phase 9960 disk array unit (Europe).
Rear View of
9960 Disk
array
CB101
to Disk Array
to power
distribution board
R&S 3760 or 3760PDG
R&S 3754 or 3934
To be prepared
as apart of power facility Provided
with DKU-F405I-3UC
Front View of
9960 Disk
Array
Figure 5.2 Diagram of Power Plugs for Three-Phase 9960 Disk Array Unit (USA)
CB101
Rear View of
9960 Disk
Array
Front View of
9960 Disk
Array
L3
L1
L2
Hot Line
Hot Line
380/400/415V
or
200/220/230/240V
AC Power
Protection Earth
to Disk Array
Black
Blue
Provided
with DKU-F405I-3EC To be prepared
as a part of power facility
Green/Yellow
G
N
Hot Line
Neutral Line
Brown
Black
Figure 5.3 Diagram of Power Plugs for Three-Phase 9960 Disk Array Unit (Europe)
