PC Input Connections (Front)

Helpful Hint

An input signal must be connected to
the input terminals of the monitor, in

order to access PC and DTV mode

Icon menus.

Operation

1. Select PC (Front) from the TV/PC/DTV menu (located in the TV/PC/DTV Icon).

NOTE:

To select PC (Rear) press the INPUT button, while PC (Front) is highlighted in the TV/PC/DTV

menu.

Connect a 15-pin Connector cable

(the supplied cable meets FCC standards)

from the computer

15-pin output terminal to the monitor PC INPUT 15-pin terminal, as shown.

3. Connect an Mini-jack cable from the computer Audio output sound source jack to the monitor AUDIO

INPUT jack, as shown.

NOTE:

To operate your Monitor and computer properly, refer to the instructions furnished with the computer.

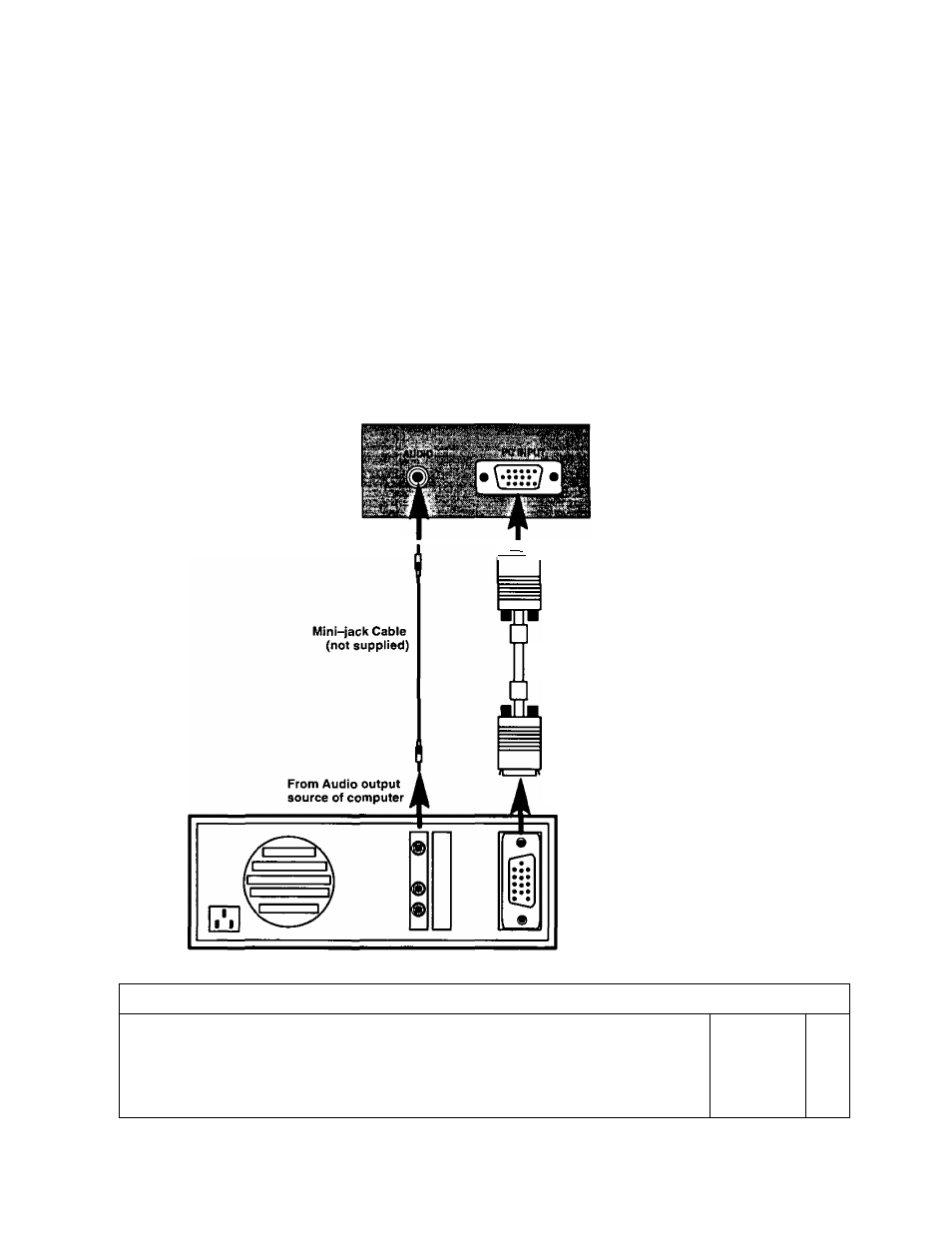

TERMINALS ON FRONT OF MONITOR

(LOCATED BEHIND FRONT CONTROL DOOR)

To front Audio

Input of monitor

ri *

To 15-pin input

terminal of computer

15-pin Connector Cable (TSXX4515-3)
(Use of the supplied cable is recommended)

From 15-pin output

terminal of computer

TERMINALS ON BACK OF COMPUTER

Helpful Hints:

If the monitor image is scrambled after connecting to a computer,
refer to the troubleshooting section for changing the computer
resolution.

scrambled image

■
