Inserting / Removing the RAM module
-0 Insert the RAM module at an angle.
X
note
)------------------------------------------------------------
Be aware of the direction and angle of the RAM module when inserting it. It will be
difficult to insert the module if there is a mistake in the direction and angle between
the RAM module and the slot.

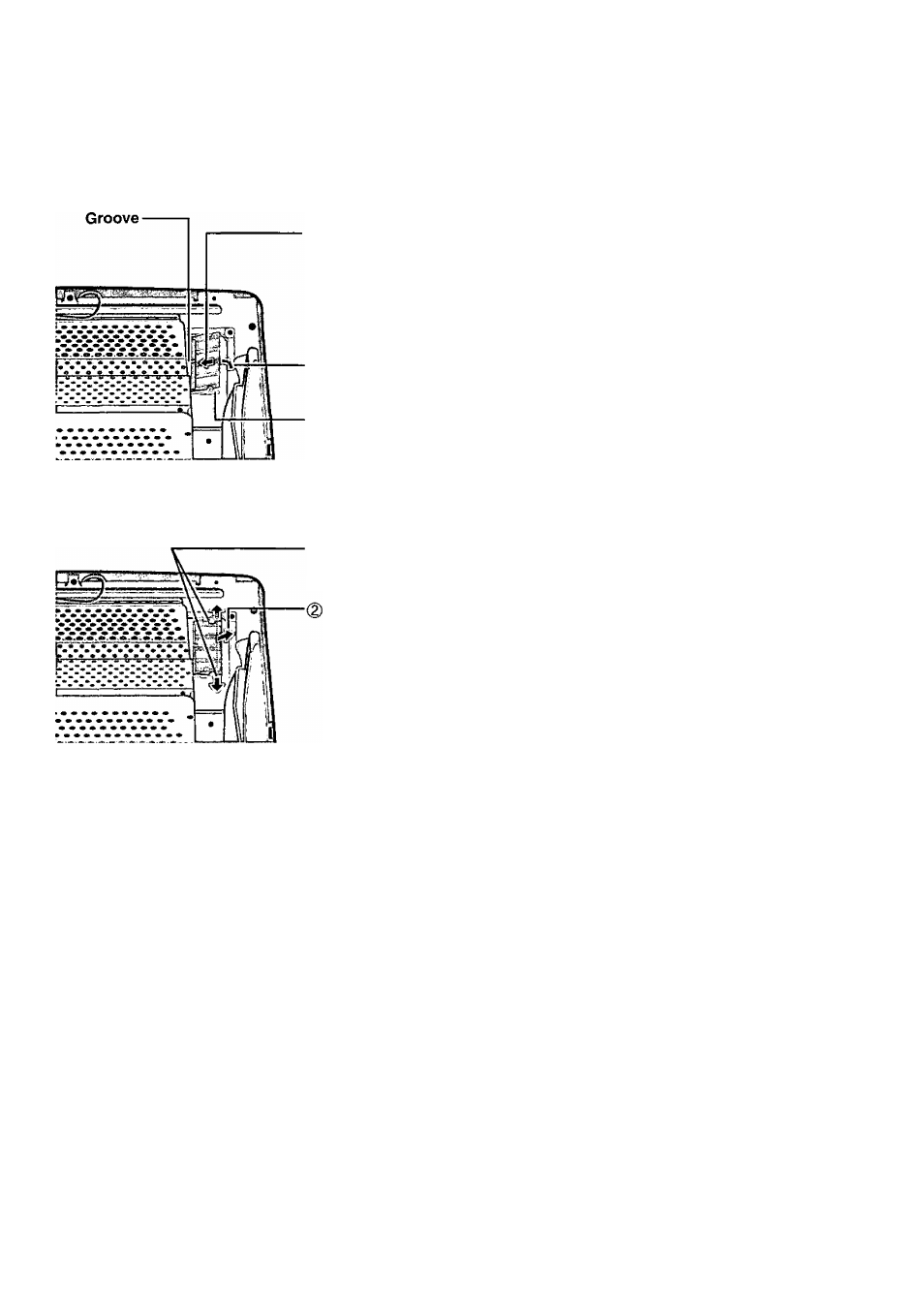

Push down on the RAM module until it locks with the top and bottom
hooks.
Hooks (on both sides)
0
Move the hooks on both sides to the outside direction.
The RAM module will rise at an angle (dotted line).
Remove the RAM module at an angle.
Repiace the cover and screws removed in Steps 3to 5
