Network Camera User’s Manual 38

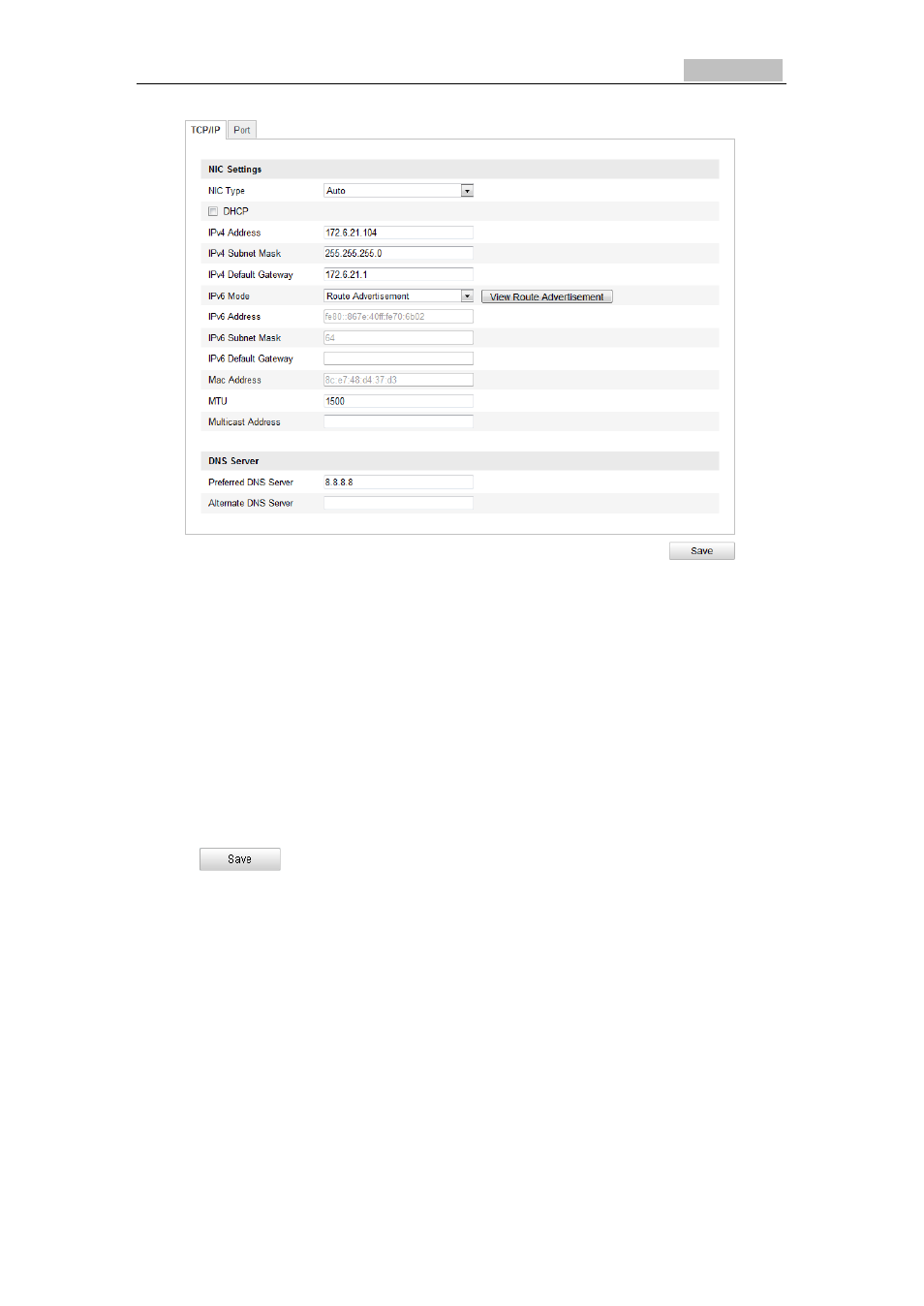

Figure 6-6 TCP/IP Settings
2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address,
IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and
Multicast Address.
Notes:
●The valid value range of MTU is 500 ~ 1500.
●The Multicast sends a stream to the multicast group address and allows multiple
clients to acquire the stream at the same time by requesting a copy from the
multicast group address. Before utilizing this function, you have to enable the
Multicast function of your router.
3. Click to save the above settings
.
Note: it will ask for a reboot for the settings to take effect.
6.3.2 Configuring Port Settings
Purpose:
You can set the port numbers of the camera: the HTTP port, the RTSP port and the
Server/SDK ports.
Steps:
1. Enter the Port Settings interface:
Configuration > Basic Configuration > Network > Port
Or Configuration > Advanced Configuration > Network > Port
