8. Configuration
0000
C112
7865p04/0200
Limit comparator
No function (lk off)
0
lk1, input 1
1
lk2, input 1
2
lk3, input 1
3
lk4, input 1
4
lk5, input 1
5
lk6, input 1
6
lk7, input 1
7
lk8, input 1
8
lk7, input 2
9
lk8, input 2
A
lk7, input 3
b
lk8, input 3
C
Controller type
Floating controller
0
Modulating controller DC 0…20 mA
1
Modulating controller DC 4…20 mA
2
Modulating controller DC 0...10 V
3
Setpoint «SP1»
«SP1» via buttons
0
«SP1» with outside sensor (analog input 3 must be configured)
1
Locking
No locking
0
Locking of configuration level
1
Locking of parameter level
2
Locking of buttons
3
*
Locking of the buttons can be entered only
once and adapted with
PGM
. Then, all
button operations will be locked and can only be enabled again by the manufacturer!
Factory setting
0
0
1
0

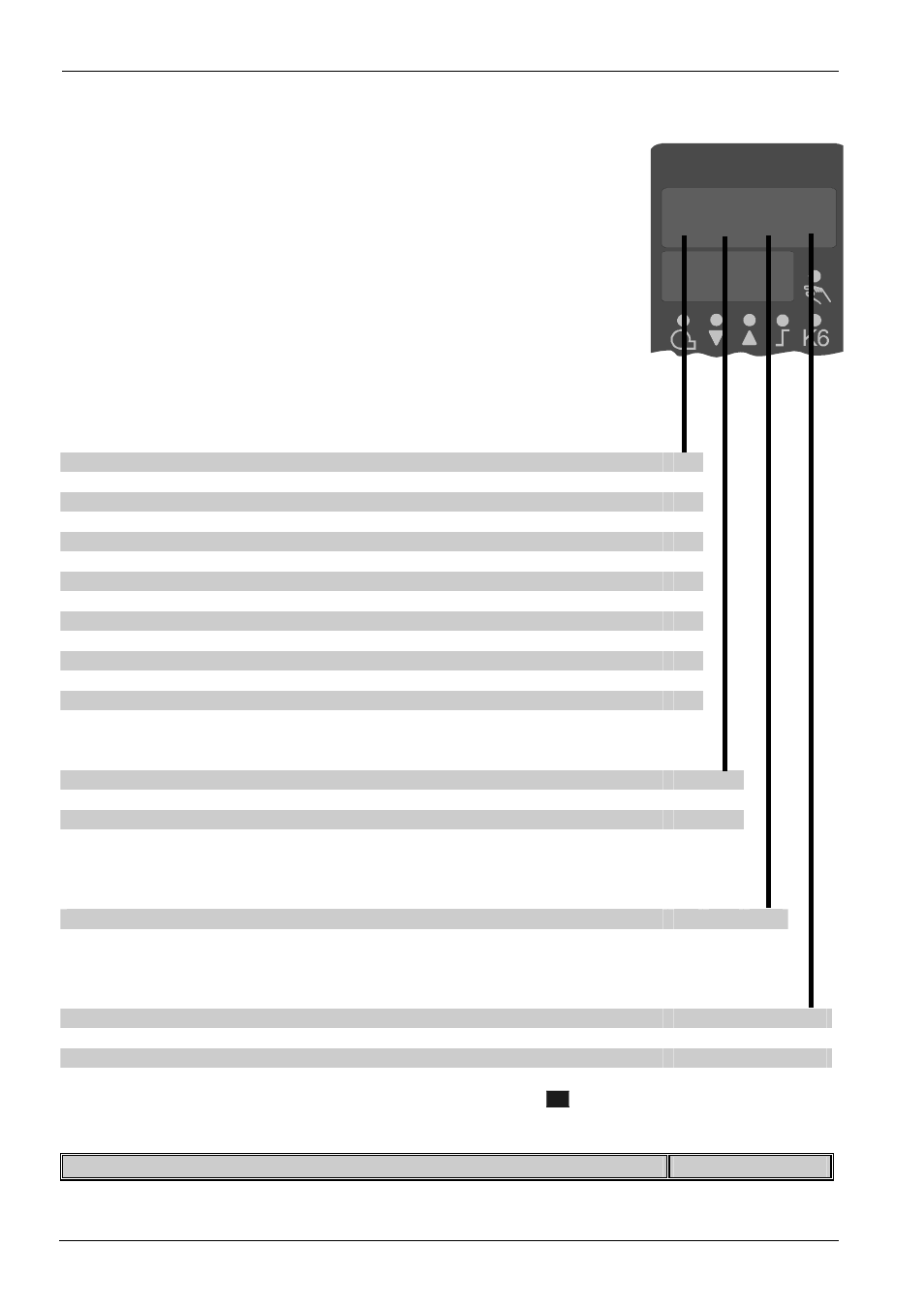

8.2 C112 limit comparator, controller type, setpoint «SP1», locking
