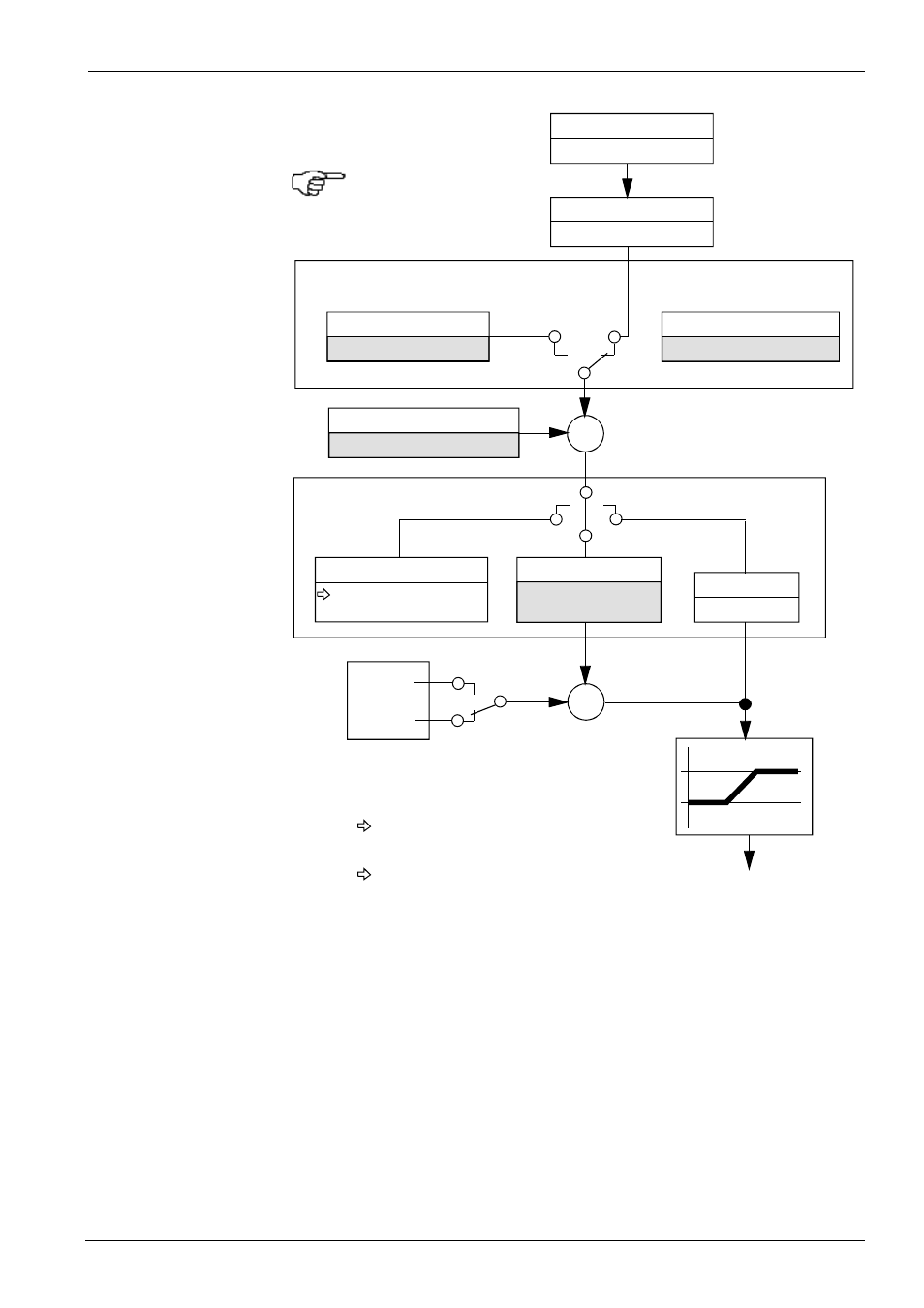

5. Operating modes
C111: XX1X ... XX3X
Outside sensor
Heating curve slope H
Setting: 0.0 ... 4.0
C112: XX0X
SP1 via buttons
C112: XX1X
SP1 via outside sensor
C111: XXX1
Sections 5.4.1 and 5.4.2
"Setpoint changeover ..."
C111: XXX2
Binary setpoint shift
C111: XXX0
No function
C111: X6XX ... XAXX
Analog setpoint shift
SPL / oLLo
SPH / oLHi
C111 and C112 are
described in chapter 8
Weather-dependent
setpoint shift:
No Yes
D2 open
D2 closed
Active setpoint
Values dSP and SP1 are entered
on the user level
Section 6.2 "User level"
Connection of binary input D2
Section 4.2 "Assignment of terminals"
+
dSP
0,0
+
78
65
f0
4
e
/1
2
0
2
1)
1)
¹) Only with RWF40.0X2B97
5.4.3 Setpoint «SP1», analog / binary setpoint shift
