PNOZ s6.1
Operating Manual PNOZ s6.1
21692-EN-08
7

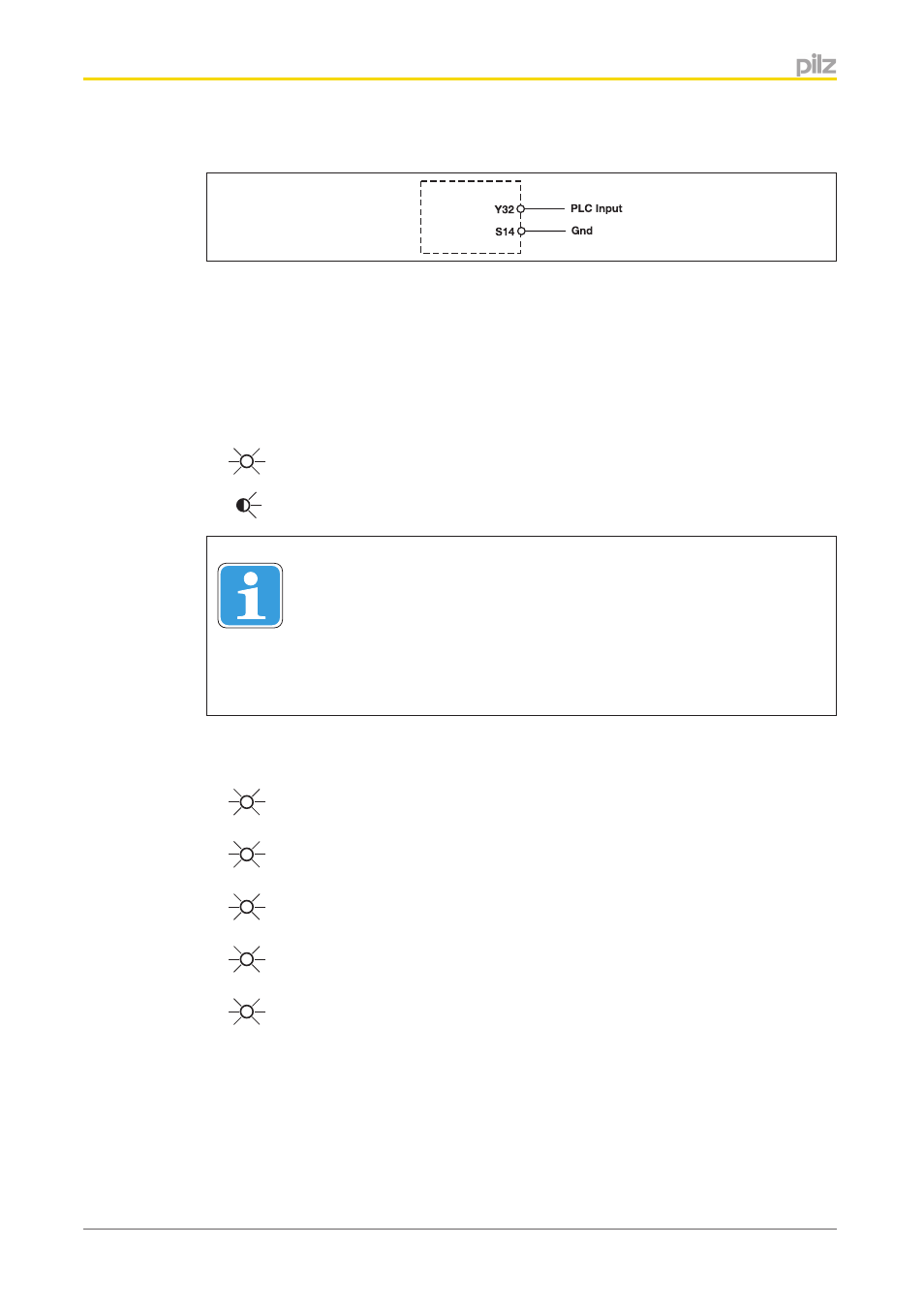

} Semiconductor output
Legend
} S1/S2: Two-hand pushbuttons
Operation
The unit is ready for operation when the Power LED is permanently lit.
LEDs indicate the status and errors during operation:
LED on
LED flashes
Information
Status indicators and error indicators may occur independently. In the case
of an error display, the "Fault" LED will light or flash (exception: "Supply
voltage too low"). An LED that is also flashing indicates the potential cause
of the error. An LED that is lit and is static indicates a normal operating sta-
tus. Several status indicators and error indicators may occur simultaneously.
Status indicators
Power
Supply voltage is present.
In1
Pushbutton at S13 is operated.
In2
Pushbutton at S23 is operated.
Out
Safety contacts are closed and semiconductor output Y32 carries a high signal.
Reset
24 V DC is present at S34.
