1002909-EN-02

PSEN op Protective Column 2-4/1
Operating Manual

6

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany

Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected] Original document

Use of a deviating mirror reduces the effective operating range by

about 15%. This percentage increases further when using two or

three deviating mirrors.
In the table below the operating ranges are indicated, based on
the number of the mirrors used.

Number of mirrors

Operating range Operating range

Without mirror

6 m

19 m

1

5.1 m

16.5 m

2

4.3 m

13.7 m

3

3.7 m

11.6 m

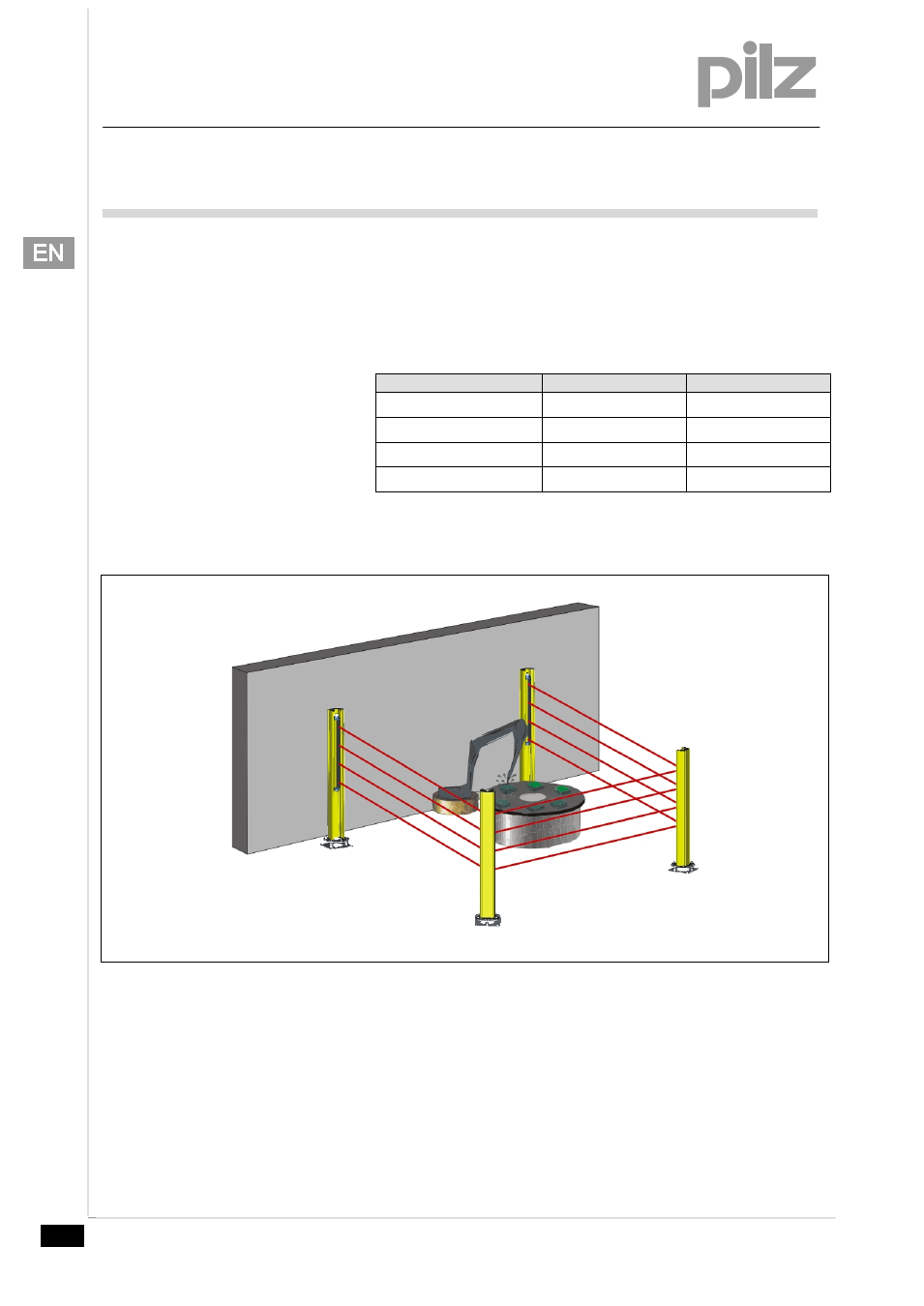

Installing PSEN op Protective Column 2-4/1 with PSEN op Mirror/1

Fig. 5

Define the area to be protected and the exact positions where the

deviating mirrors, the transmitter and receiver units of the light

curtain are to be installed. The "Order reference" table combines

the recommended pairs of product and corresponding accessory.

Fix the PSEN op Protective Column 2-4/1 on the floor in the

required position. When using an additional plate (PSEN op

Protective Base/1) perform the installation as described in the

"Installing the PSEN op Protective Base/1 accessories" section.

Transmitter

deviating

mirrors

deviating

mirrors

Receiver
