Assembly
The profile of PSEN op Protective Column 2-4/1 is supplied with
pre-installed deviating mirrors and does not require mechanical
installation.
Levelling and angular adjustment of the plates
The grooves on the base plate are used to define the required angle
position. Tighten the slot holes on the bottom plate with the screws
M10 on the floor (not entirely). Slightly loosen the counter nuts on
the top plate and align any unevenness using the spirit level. Then
fix the screws M10 completely. Finally, check again whether the
protective column is straight, readjust if necessary and tighten the
counter nuts again (Fig. 2).

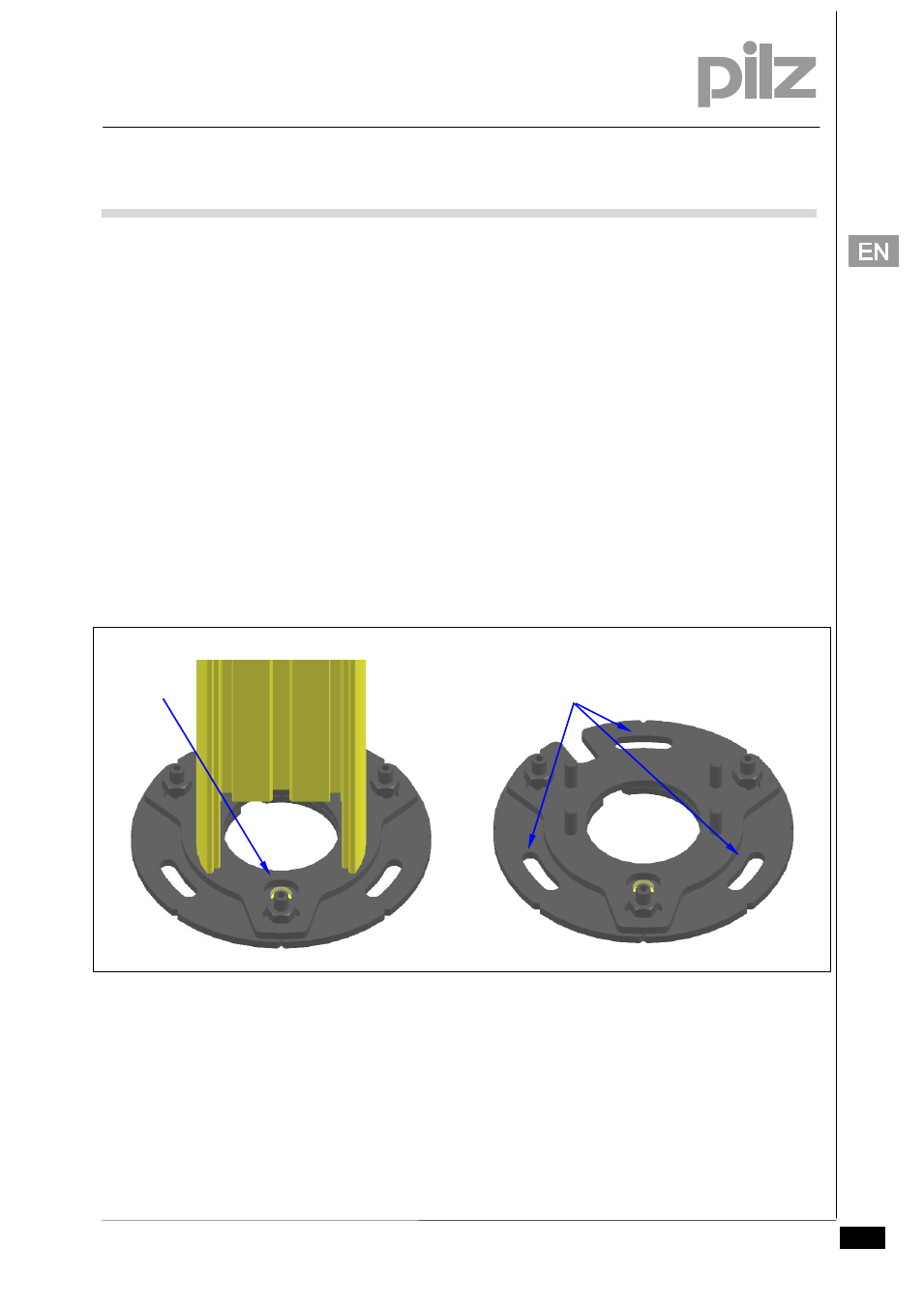

Fig. 2
Slot holes for
bottom screws
Spirit level
