Installing the PSEN op Protective Base/1 accessories

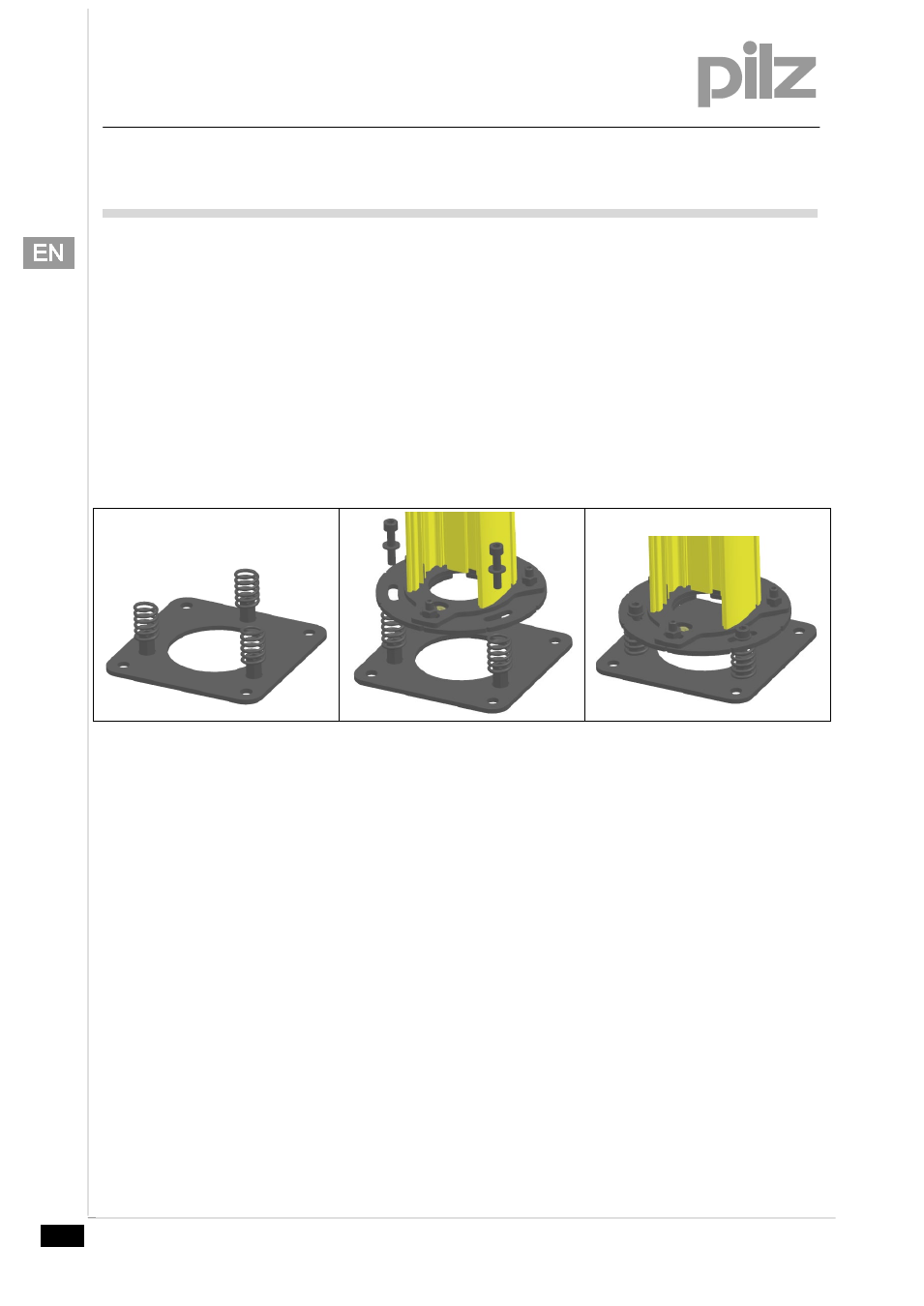

Screw the additional plate to the floor and mount the 3 springs on
the spacers. Fix the protective column with the base plate so that
the slot holes of the bottom plate are right above the springs. Insert
the screws M10 together with the washers (PSEN op Protective
Base/1 accessories) into the slot holes and compress the 3 springs
equally when affixing the screws (Fig. 3). Align the protective
column as described in "Levelling and angular adjustment of the
plates".
The optimum working height of the springs (distance between base
plate and additional plate) is ca. 42 mm.
Fig. 3
