Aligning the deviating mirrors
To adjust the height of the deviating mirrors loosen the screws
M5x12 and position the deviating mirrors in the protective column as
required. Then tighten the screws again. If the protective column is
in vertical position, make sure that the deviating mirrors do not slip
downward.

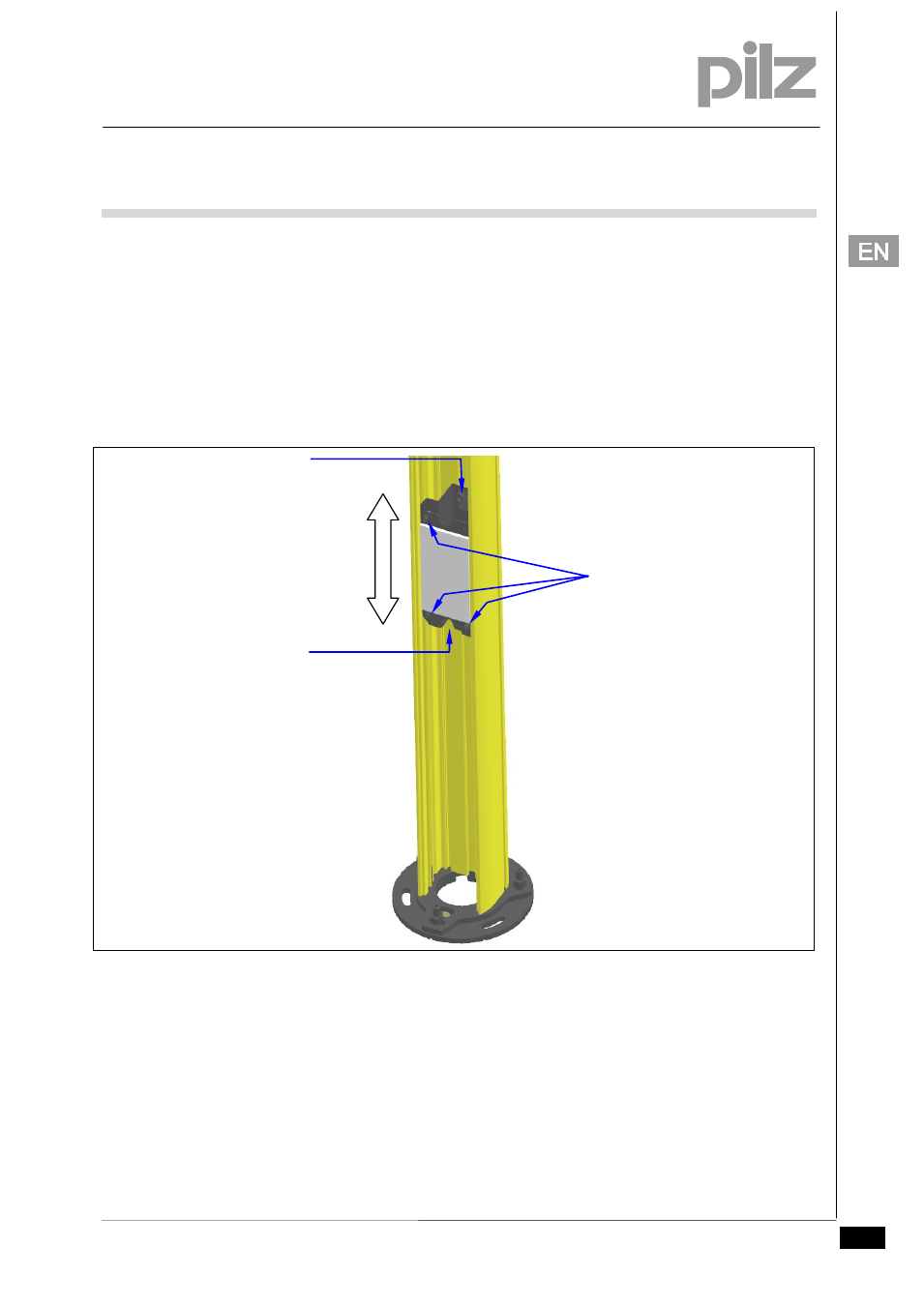

The 3 screws M4x20 are used to level the deviation mirrors (Fig.4).
Fig. 4
Screws M8x12
Screws M4x20
Screws M8x12
