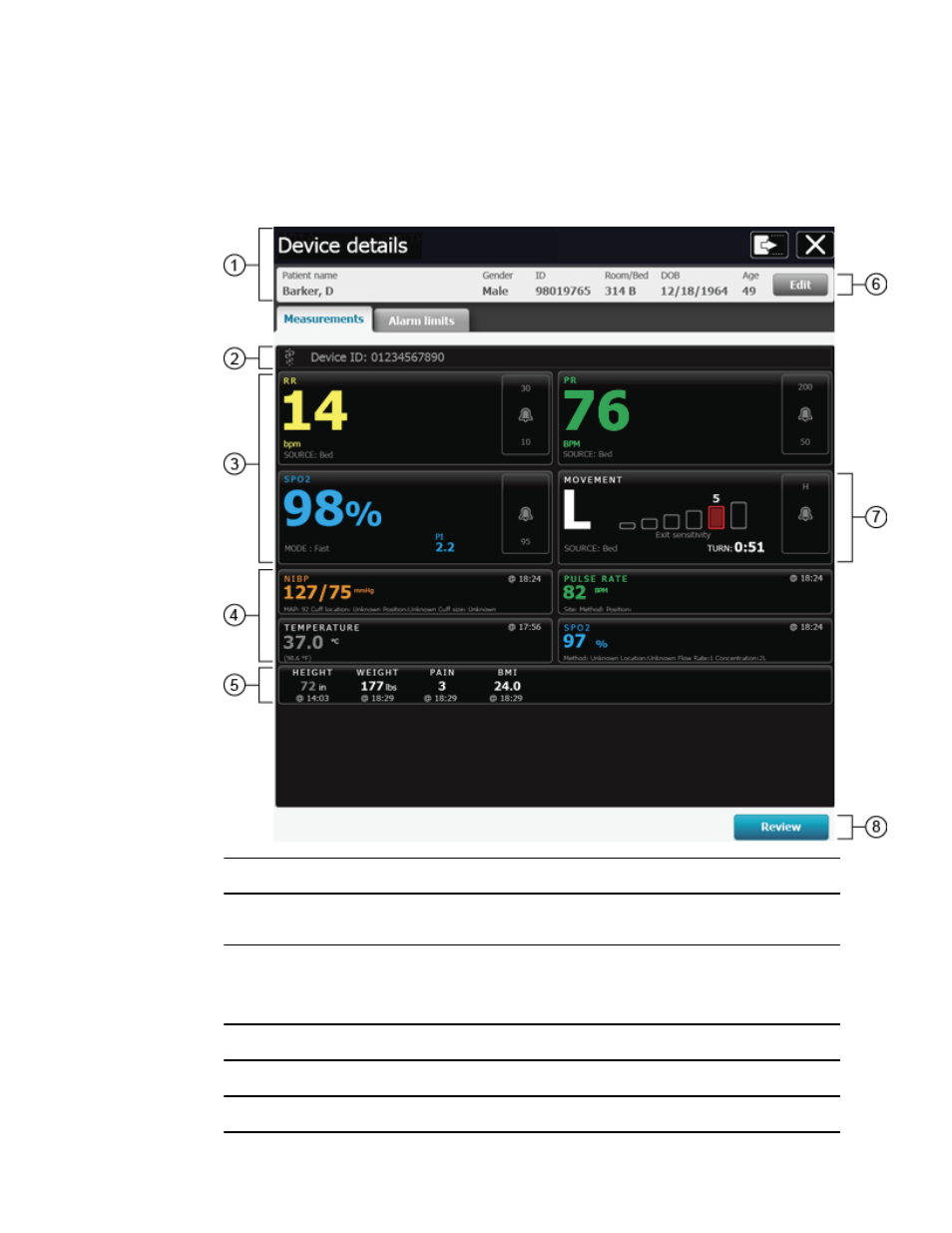

Device details – Measurements tab
This window displays information on the devices and measurements associated with a
patient. Click a patient tile to open the Device details window.
1. This area displays the patient summary.
2. This area displays the device message area. This includes the device serial number, or any alarms or messages
associated with the patient's connected continuous monitor.
3. This area displays the continuous patient data. Click the alarm limits button to pause an alarm or adjust that
parameter's alarm limits.
Where applicable, the source for the parameter data is displayed in the lower left corner of the parameter tile.
4. This area displays the episodic patient data.
5. This area displays the manual parameters.
6. Click Edit to open the Patient Details window and edit the patient information.
56 EarlySense sensor Welch Allyn Connex ® Central Station
