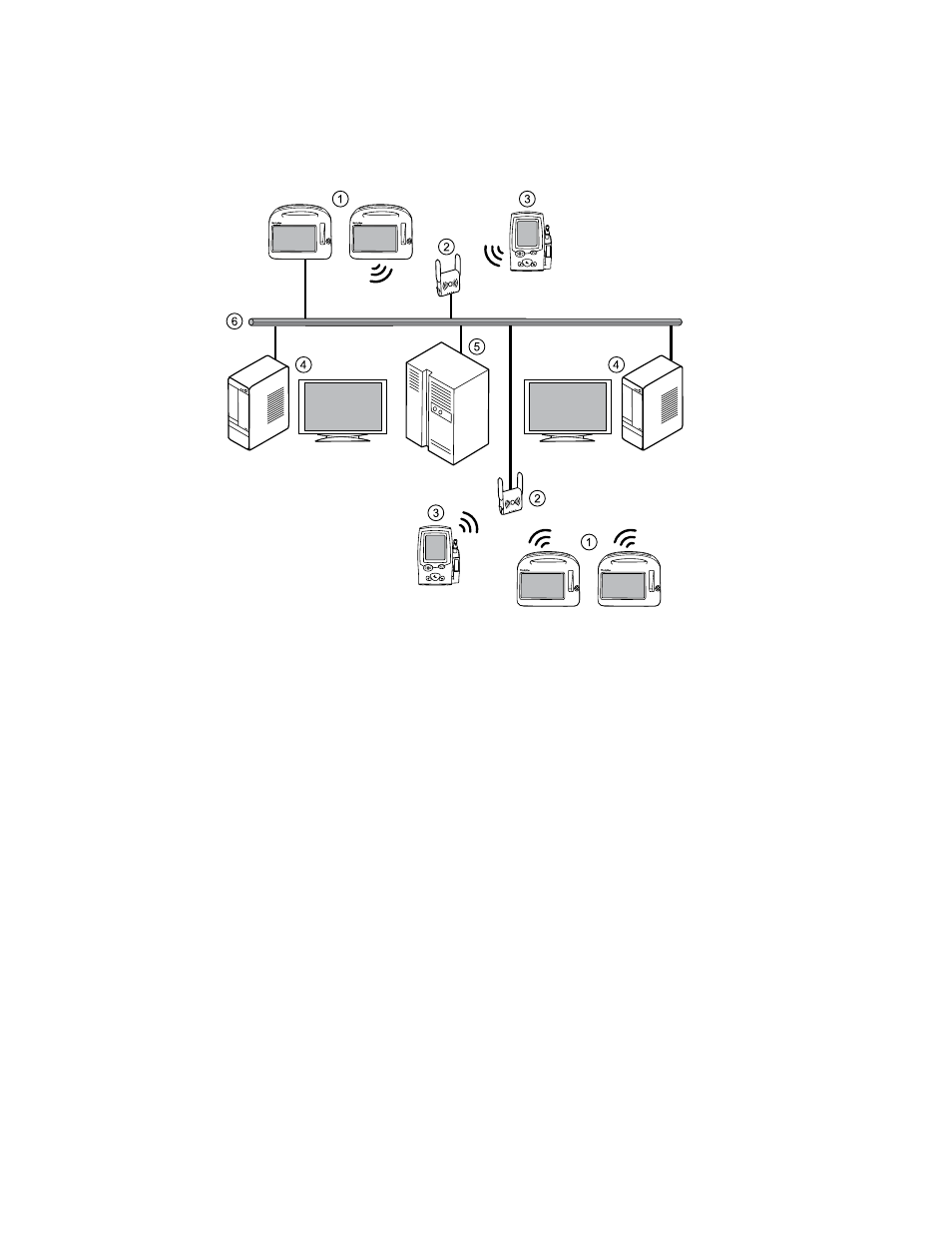

Server-based system diagram
1. Wired or wireless
monitors
2. Wireless access
point
3. Wired or wireless
episodic device
4. Central station
5. Central station
server
6. Network
In this configuration, one or more central stations are connected to a single Connex
server. The central stations share common data, such as configuration data, user
definitions, and patient information by maintaining it on the Connex server.
Continuous devices communicate over the network and are routed to the central station
whose coverage area includes the device’s location. Episodic devices communicate over
the network to the Connex server which stores all episodic data.
An optional read-only repeater display can also be connected to the central station, which
displays a visual and audible duplication of the central station.
10 System configuration Welch Allyn Connex ® Central Station
