The West Wheel Cover
1.
Use a 3/16” hex key to remove the direction indicator for the West wheel.
2.
Use a 1/4” hex key to remove the screw in the side of the West wheel cover.
3.
Use a 5/16” hex key to remove the two screws in the top of the West cover.
4.
Have an assistant close by to disconnect the E-Stop switch harness and
bumper sensor harness. Carefully lift the cover up and off a few inches, dis-
connect the E-Stop harness connector and the bumper sensor connector
5.
Remove the cover.

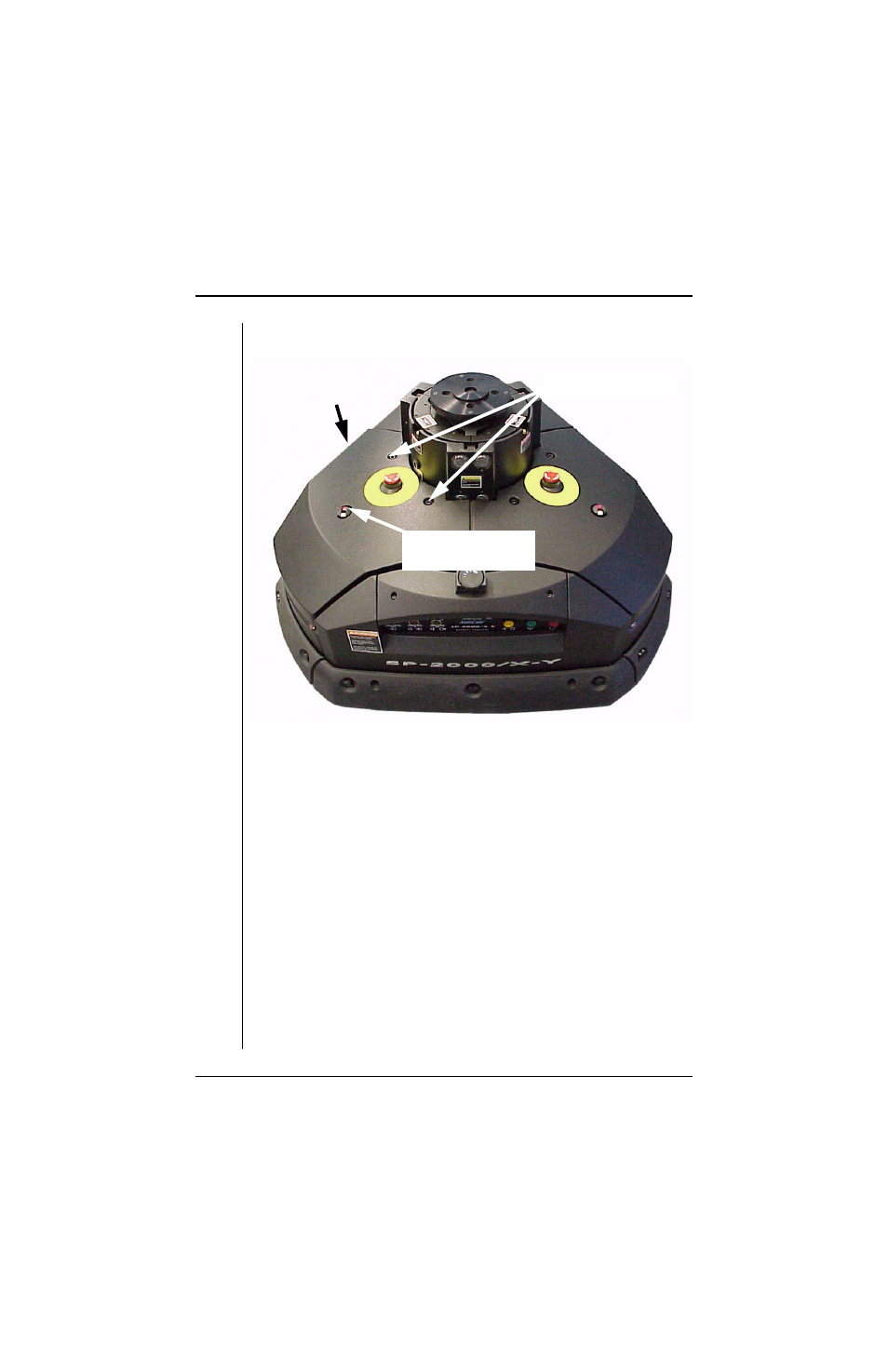

Direction Indicator
(3/16” hex)
Screws (5/16” hex)
(1/4” hex)
Screw on the side
