SP-2000/X-Y Maintenance And Repair
User Manual 4-9

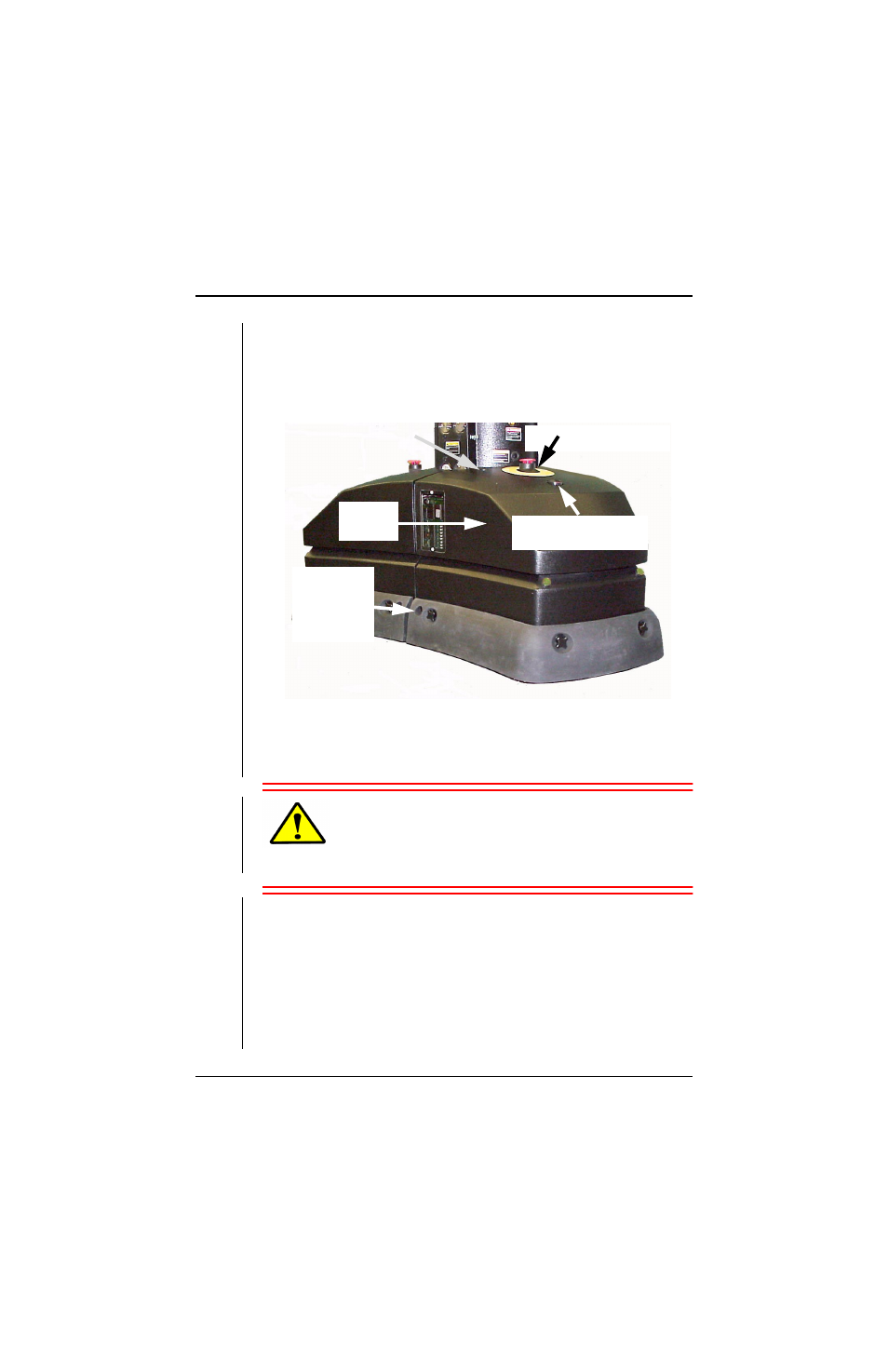

Removing The Covers
The North Cover
1. Press the Stop button to power down the pedestal
2. Use a 3/16” hex key to remove the direction indicator for the North wheel.
3. Use a 1/4” hex key to remove the two screws in the sides of the North
wheel cover.
4. Use a 5/16” hex key to remove the two screws in the top of the North cover.
When you remove any of the wheel covers, lift the cover up
and off carefully. Otherwise you may damage the electrical
harnesses that are attached to the cover, or other hardware
under the cover. Ue similar caution when you replace the
cover.
5. Have an assistant close by to disconnect the E-Stop switch harness and
bumper sensor harness. Carefully lift the cover up and off a few inches, dis-
connect the E-Stop harness connector and the bumper sensor connector.
6. Remove the cover.
Screw (5/16” hex)
Direction Indicator
(3/16” hex)
Screw
(1/4” hex)
Cover
North
Screw (5/16” hex)
1 each side
of cover
