Typical Applications
The SP-2000/X-Y servo pedestal will typically be installed with the HS-2010R
or HS-2010MH pan & tilt head. Up to eight pedestals and heads can be con-
trolled remotely with the AutoCam™ ACP-8000P touchscreen controller. Com-
munication between the head and the controller is by RS-422 data.
Refer to the User Manuals for your specific heads and controller for more infor-
mation.
ACP-8000P System

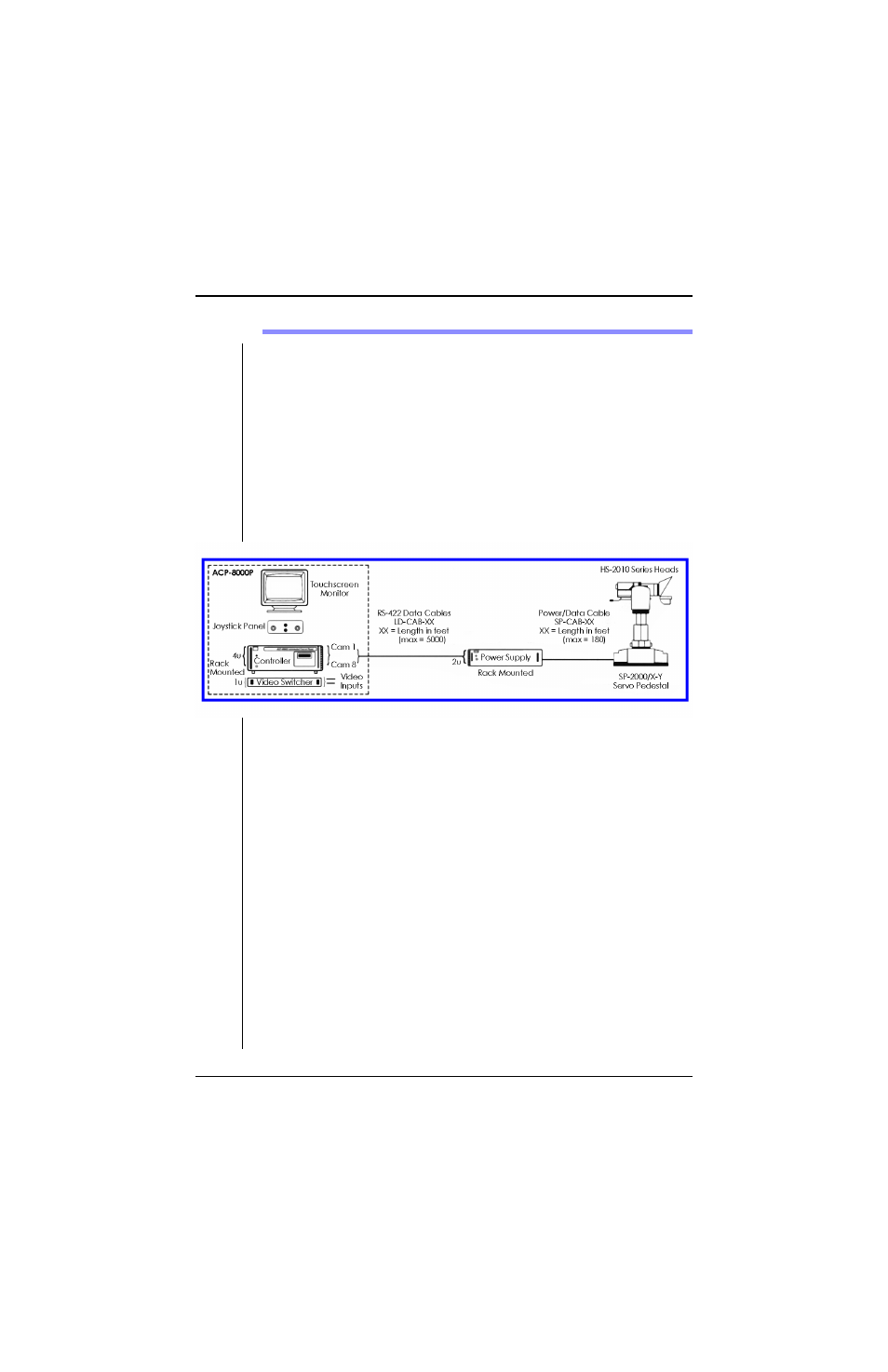

In systems with one or more (up to eight) servo pedestals, the ACP-8000P con-
troller is used as shown below
The distance between the controller and rack mounted power supply for the data
connection can be up to a maximum of 5000 ft. (1500 m). The power/data con-
nection from the power supply to the pedestal can be up to a maximum of 180 ft
(55 m). The power and data is looped from the pedestal up to the head.
