Configuration F

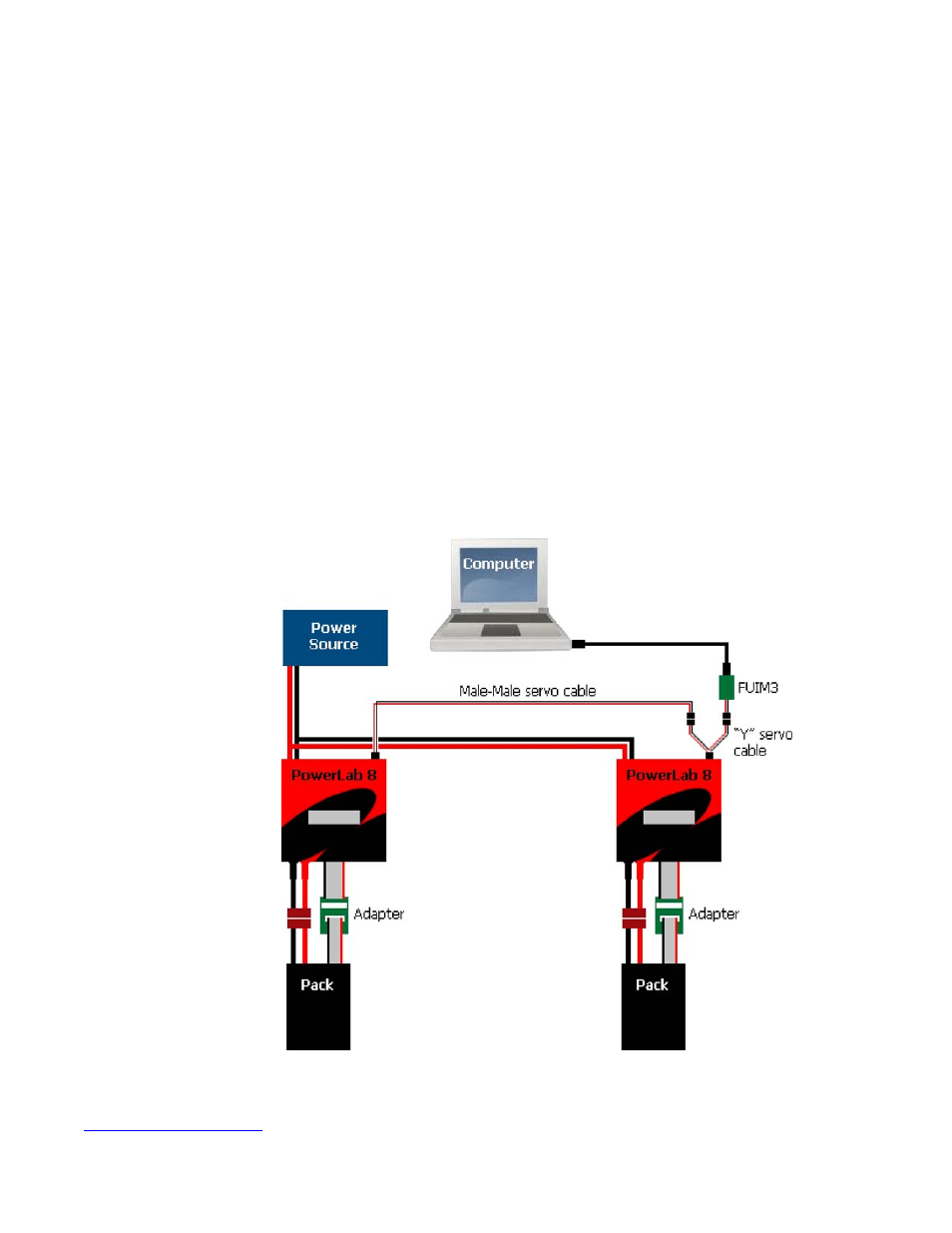

Summary:
two PowerLabs charging separate packs, one power source, Expansion
Channel Mode.
Components:
2
PowerLabs
1 power source
2 standard adapters or Safe Parallel Adapters (1 adapter per pack)
2 packs (Safe Parallel Adapters require same cell count for both packs)
1 optional FUIM3 for computer support
1 optional “Y” servo cable (required for Expansion Channel operation with
computer support)
Male-male servo cable (required for Expansion Channel operation; required for
computer support)
PowerLab 6 mode:
Expansion Channel.
PowerLab 6 maximum charge power:
up to 1000W to each pack (6s) using
30VDC/2400W power source. Standard house circuit would likely not provide enough
power; would require 240VAC power supply for full power.
Note: above illustrations may read “PowerLab 8” because for purposes of these illustrations, both
models are identical.
