Connect packs: basic
Connect the pack to PowerLab 6’s Output jacks, Balance Port or both.
The Balance Port accepts a 9-pin Cellpro balance connector, which supports packs up to
6s. If the pack has a different style balance connector, REVOLECTRIX offers a variety
of adapters for most popular connector types and brands (visit the
section
in the REVOLECTRIX Web site).
For all balance charge operations, the pack you connect must have both heavy
discharge wires and a balance connector, you must connect both to PowerLab 6 (good
for any charge/discharge current). The PowerLab 6 does not support balance-wire-only
charging.
Note:
Best practice is to connect balance connector first, then connect
discharge wires. When the PowerLab 6 is set to
, you still
must connect both the balance connector and the discharge wires.

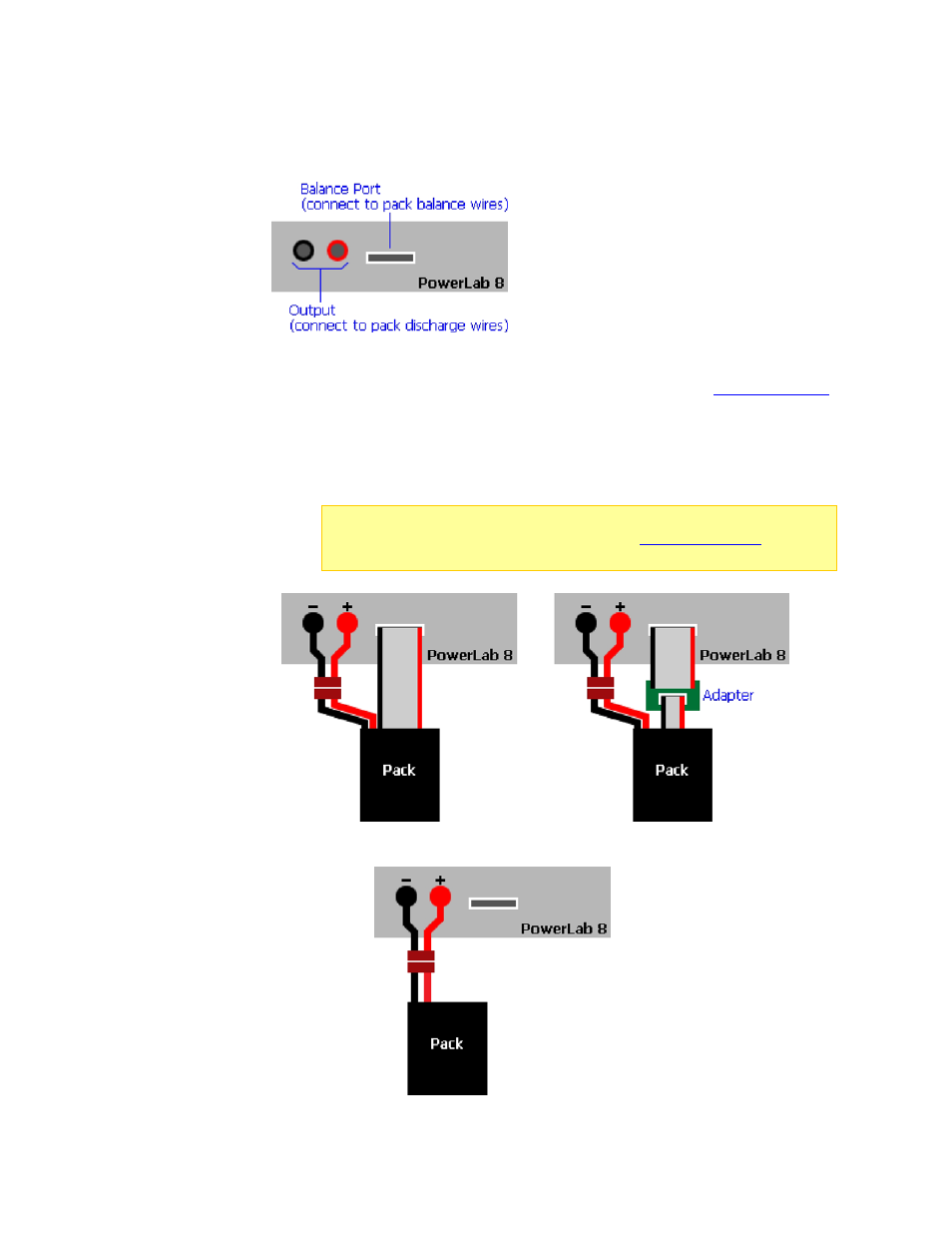

For non-balanced charge operations, connect the pack to PowerLab 6 like this:
Note: above illustrations may read “PowerLab 8” because for purposes of these
illustrations, both models are identicall.
