iCharger Synchronous Balance Charger/Discharger 4010DUO
- 6 -
Device Introduction
 4010DUO Parts & Interface Introduction
 4010DUO Buttons Function & Icons Description
Buttons allow quick access to certain features when using 4010DUO, familiarity with the icons on the interface will help
you better understand the working status of the charger, as shown in following chart:
Name Functions & Use
KNOB
Press: confirm
Counterclockwise rotation: up Clockwise rotation: down
Long press: pop up manage menu via long press on BATTERY
MEMORY SELECTION interface
exit the program after saving via long press on
BATTERY SETUP interface
TAB/SYS
Long press: enter SYSTEM MENU via long press on initial
interface, and return to the previous menu via long
press on the rest interface
Click: can act as backspace when editing program name on
MEMORY SETUP, and return to the previous menu via
clicking on the rest interface

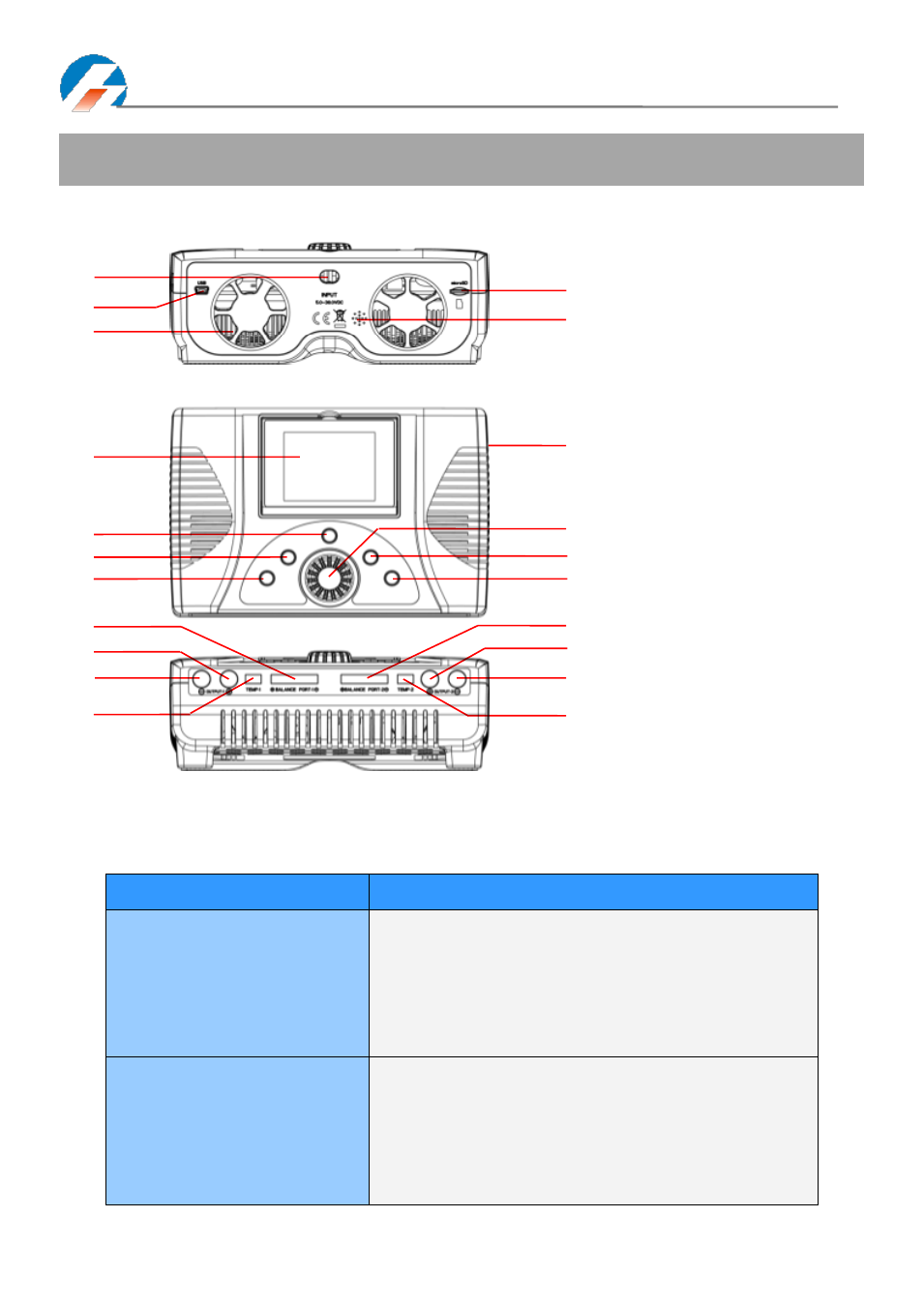

（1）OUTPUT-1﹣
（2）OUTPUT-1﹢
（3）TEMP-1
（4）BALANCE PORT-1
（5）BALANCE PORT-2
（6）TEMP-2
（7）OUTPUT-2﹢
（8）OUTPUT-2﹣
（9） LCD
（10）STOP/START-1
（11）STATUS-1
（12）TAB/SYS
（13）KNOB
（14）STATUS-2
（15）STOP/START-2
（16）J1,J2 PORT
（17）USB
（18）POWER OUTPUT LINE
（19）FAN
（20）BUZZER
（21）SD CARD SLOT
19
17
20
21
15
16
13
14
12
11
9
10
5 4
2
7
1 8
3 6
18
