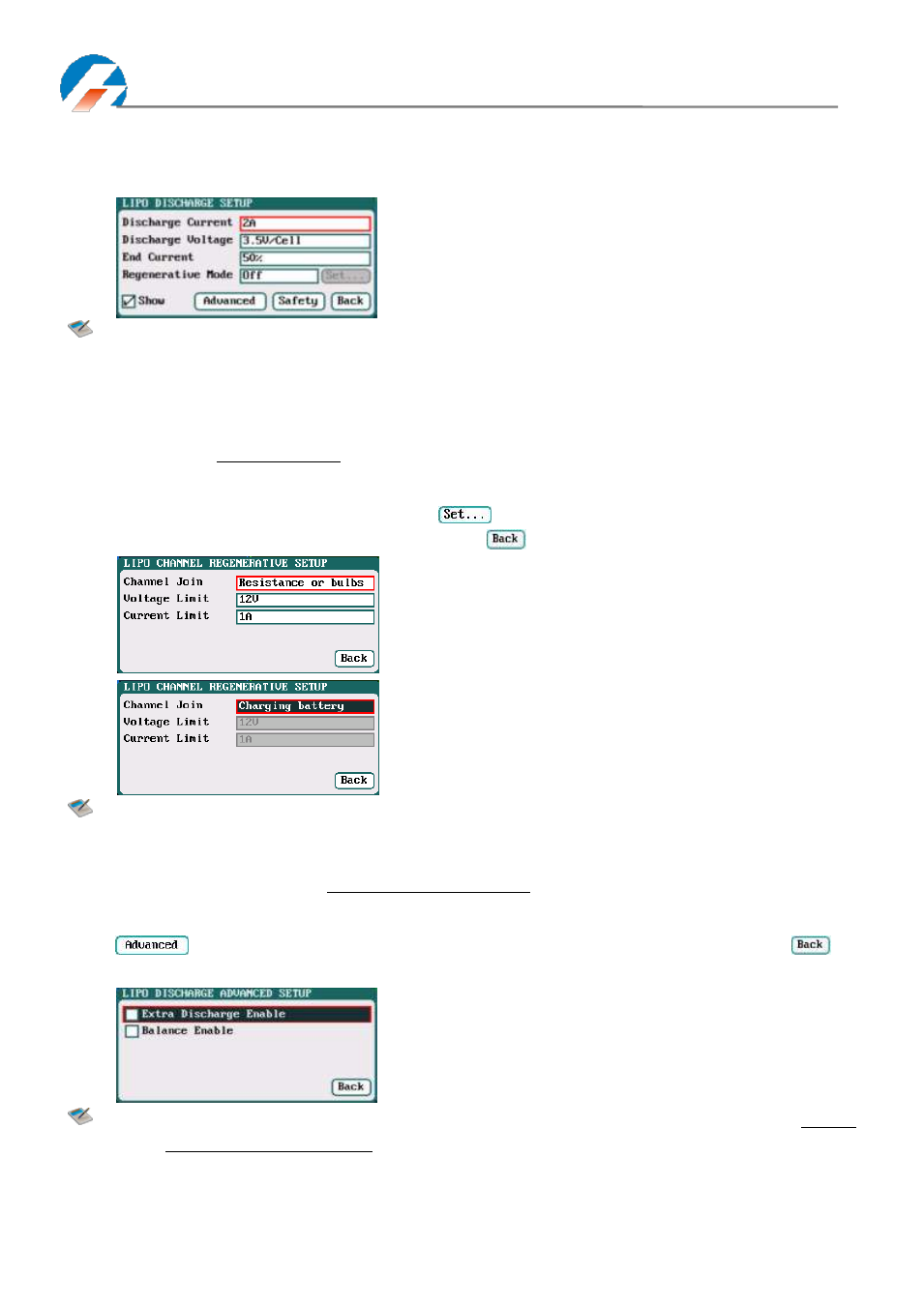

LiPo/LiIo/LiFe Battery Discharge Setup
Select Program→Discharge to enter Discharge setup interface.
Note: 1.The charger first discharges with constant current (CC) according to the user setting then turns
to constant voltage (CV) when it reaches the discharge voltage. In the CV phase the current
gradually falls, and the charger will terminate discharging when the current falls below the
percentage of the configured discharge current.
2. Regenerative mode has three available settings: OFF, To input, To channel, see more details on
Page38
To Channel Setup
When selecting to To channel on Regenerative Mode, “
"button changes from inactive to its operational status,
and click to enter To channel setup interface,
after setting click "
" to return to the previous interface
Note: 1.For example, a 12V/60W bulb as the load of To Channel, it should set Voltage Limit =12V;
Current Limit=60/12=5A.
2. When the battery as the load of To Channel, Voltage Limit and Current Limit are not settable，
LiPo/LiIo/LiFe Battery Discharge Advanced Setup
Click "
" to enter Lipo/LiIo/LiFE DISCHARGE ADVANCED SETUP interface, after setting click"
" to
return to the previous interface.
Note: 1. Tick Extra Discharge Enable to activate discharge enable, see more details on
Page39
2. Tick Balance Enable to activate balance discharge; when discharge enters the CV phase, it
starts to balance the cell voltages.
Discharge Current:
0.05A-40A; default: 2A
Discharge Voltage:
3V/Cell-4.1V/Cell;
Default: 3.5V/Cell
End Current:
1%-100%; default: 50%
Regenerative Mode:
OFF (default),To input, To channel
Channel Join:
Resistance or bulbs (default)
Charging battery
Voltage Limit:
0.1V-40V; default: 12V
Current Limit:
0.05A-40A; default: 1A
