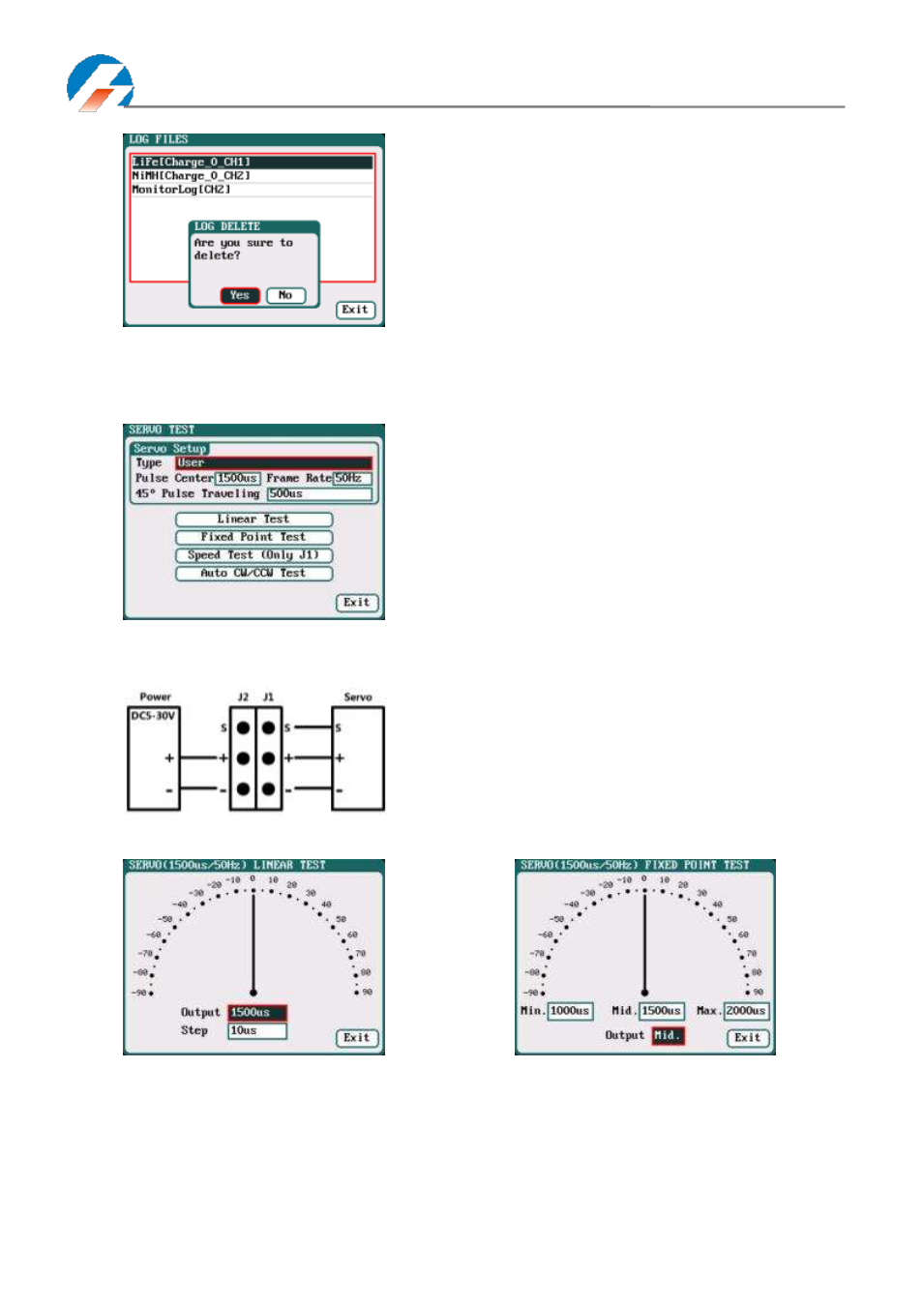

Select Delete to pop up the LOG FILE DELETE dialog box, Select Yes to delete this file, select No to cancel.
 Servo Test
Select SYSTEM MENU→Extra Function→SERVO TEST to enter servo test interface; insert Servo into J1 or J2 port
to test (only J1 port supports Speed Test, J2 can also be used as an external power source).
J2 can be used as an external power source: If J1(5V/1A) cannot provide the voltage needed for the servo, please
connect through J2 with external power source.
Select the test mode and go to the following corresponding interface.
Liner Test: When turning the knob, the pointer
deflects with the setting value of Step, and the
servo responds accordingly.
Fixed Point Test: When turning the knob, the
pointer deflects among each setting value and the
servo responds accordingly.
Type: Analog servo (1500us/50Hz)
Digital servo (1500us/333Hz)
Digital servo (760us/560Hz)
User: Pulse Center: 700us-1600us
Frame Rate: 40Hz-700Hz
45
°
Pulse Traveling:100us-1000us
