iCharger Synchronous Balance Charger/Discharger 4010DUO
- 10 -
 Connection for Two Battery Packs
 Dual-channel Connection Notes
 Connection for Channel Asynchronous Mode
Channel Asynchronous Mode: i.e. CH-1 and CH-2 work independently.
Go to MEMORY SETUP→Option→Channel Mode to select Asynchronous.

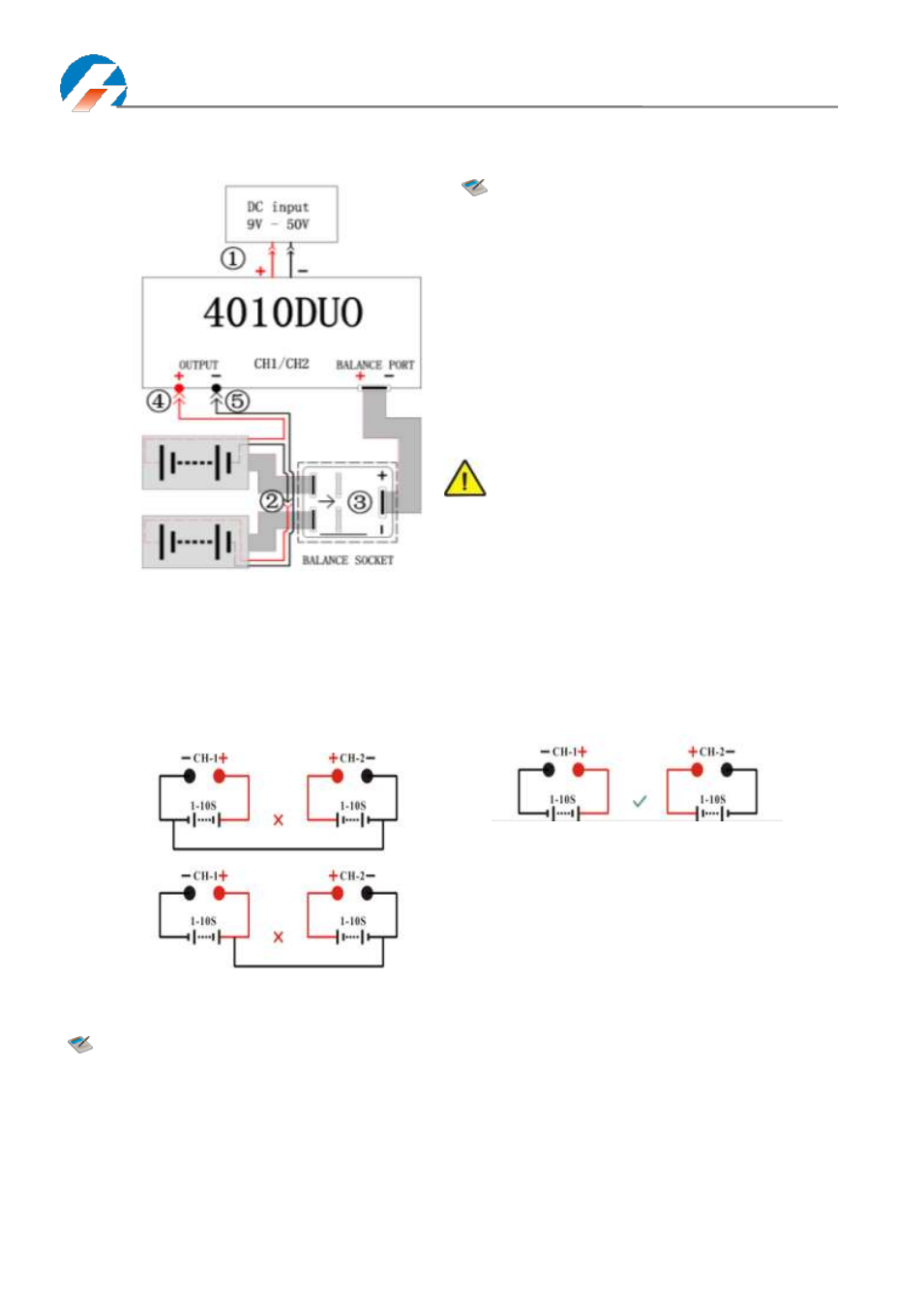

Picture1: Error Connection Picture2: Correct Connection
Note: In this mode, the two channels must not have any external electrical connection; otherwise it will
damage the charger. You cannot charge with connection shown in picture 1, the correct
connection is shown in picture2.
Note: The left picture shows the correct order of
connection, please be sure to follow the
recommended order.
1.The spark is a normal phenomenon when
connect with the power supply(The step①),
and the higher the input voltage, the greater
the spark; you can turn off the power supply
first, connect the step①, then turn on the
power supply to avoid the spark.
2. If connect in reverse order(step②, ③, ④,
⑤ ), It will cause a greater spark when connect
with battery.
3. If step ④, ⑤ connected at first, next you
must connect step ②, and then connect step
③
, otherwise it will cause damage to
the BALANCE PORT interface of the charger.
