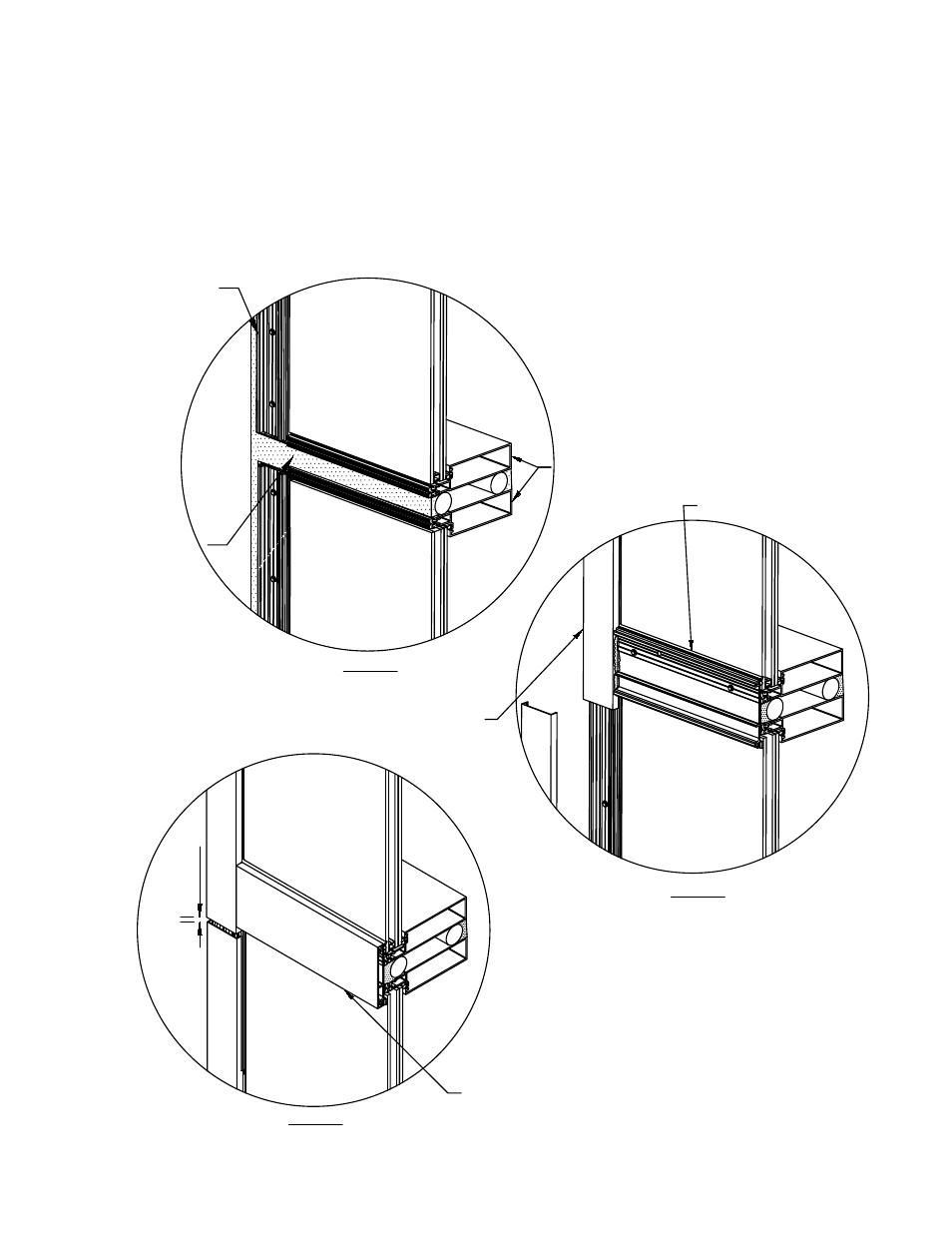

STACKED HORIZONTAL VERTICAL PRESSURE PLATE INSTALLATION
WW-162 Pressure
Plate
HW-102 Pressure Plate
HW-536 Stack Horizontal
Silicone Sealant
and Backer Rod



HW-100 Face Cap
.25"
5.3 a. Step 1 - After glazing has been temped in, install WW-162 vertical pressure plates.
b. Step 2 - Install WW-110 face cap and seal HW-102 pressure plate to WW-110 face cap.
c. Step 3 - Install vertical HW-100 face cap.
WW-110 Face Cap
