33



R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L
HW-500 Jamb or Mullion
WW-352 Zone Plug
HW-338 End Cap
FS-118 Fastener
GP-107 Isolator Gasket
HW-536 Stack Horizontal
5.1 a. Attach HW-536 stack horizontals to HW-500 jamb with FS-118 fasteners.
b. Shim 1.25" at splice sleeve. Remove shim once mid point anchor is installed
c. Gaskets and zone plug installation are similar to the instructions given in standard horizontal installation
given in Section 2.1.
HW-536 Stack Horizontal

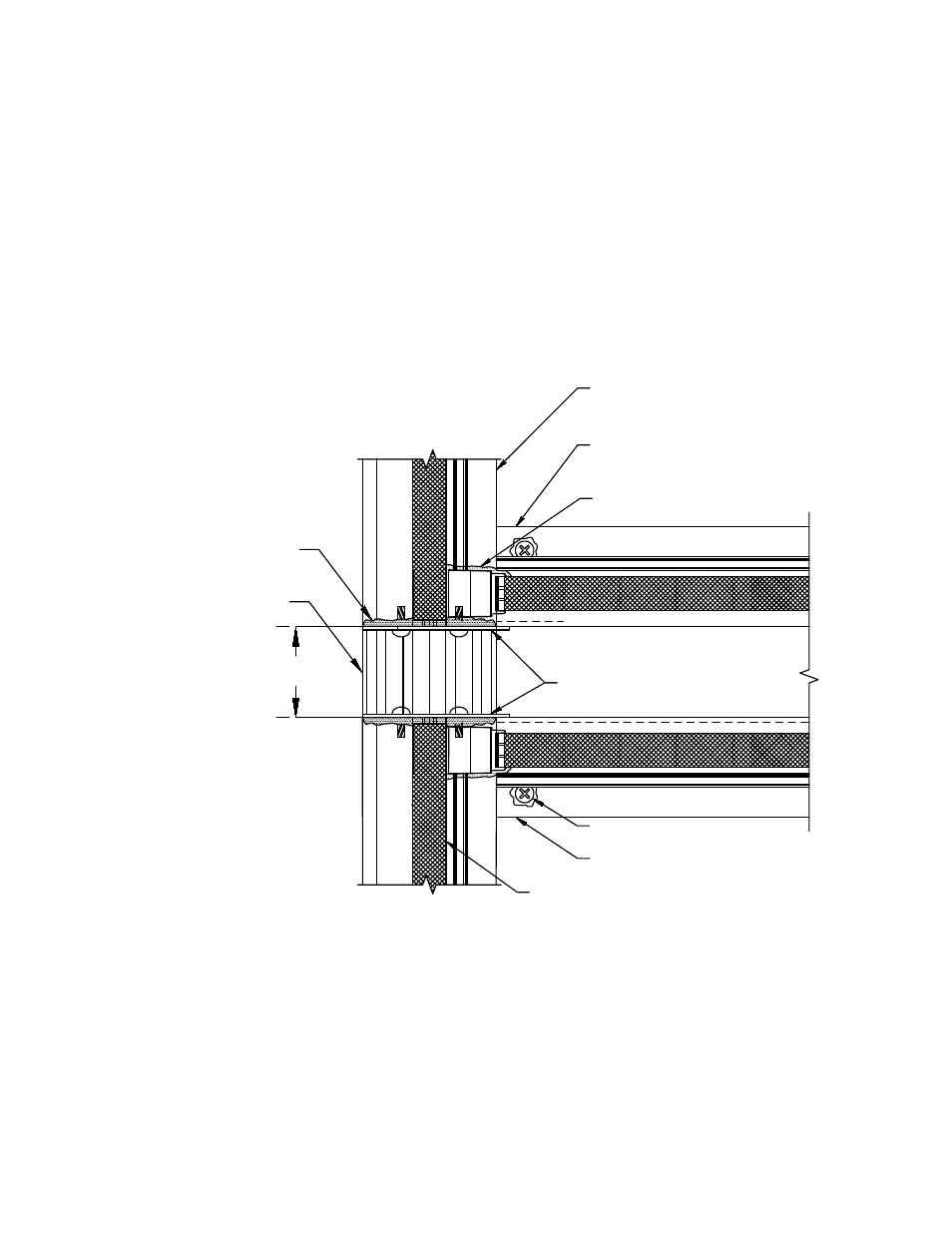

FIGURE 5.1
1.25" Expansion Joint
HW-194-01 Splice Sleeve
STACKED HORIZONTAL INSTALLATION
Silicone Sealant at End Cap
