Page 37






R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L

1.25"

1.00"

HW-500 Jamb

HW-536 Stack Horizontal

HW-194-01 Splice Sleeve

FG-5185 Gasket

Silicone Sealant

and Backer Rod

GP-107 Isolator

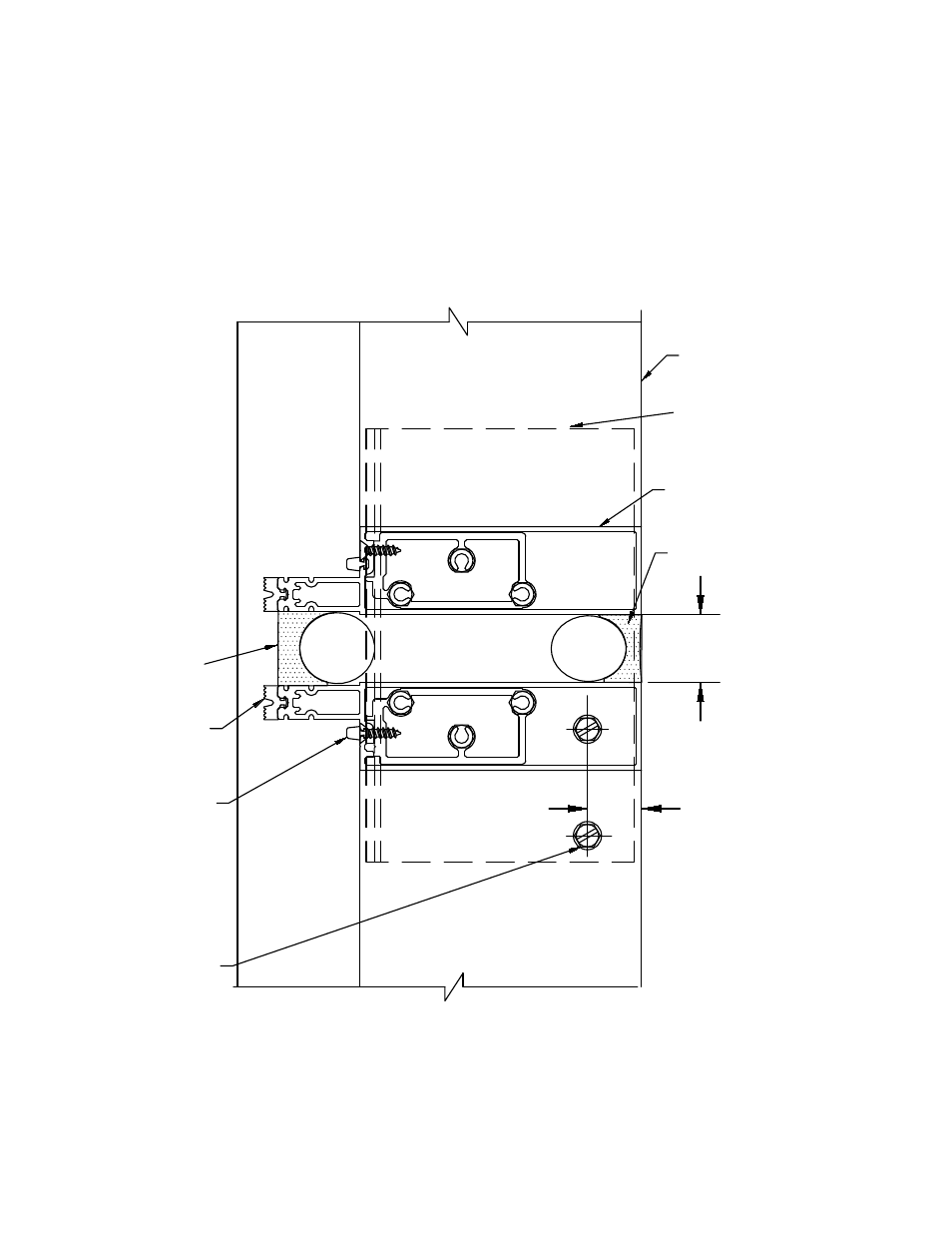

FIGURE 5.2

5.2 a. Once all bays have been installed, anchored and zone plugs have been installed then begin to install

backer rod and sealant as shown in FIGURE 5.2

b. At Jamb condition marry silicone sealant with perimeter sealant.

c. Remove splice stop fastener and seal hole.

Stop Fastener

Interior Seal

Expansion Joint

STACKED HORIZONTAL INSTALLATION
