R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L

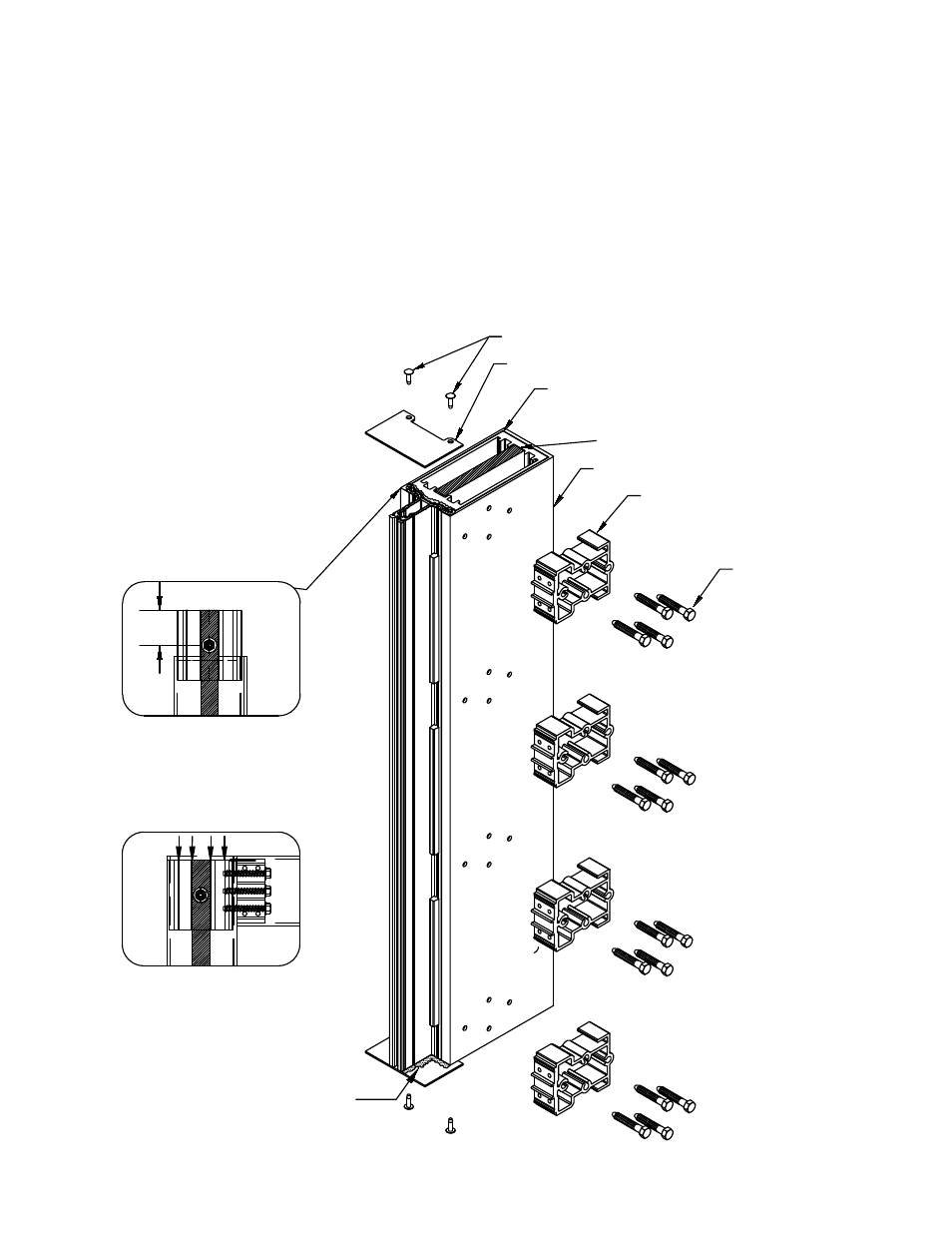

FIGURE 1.6

1.6 a. Insert and attach RS-15 reinforcement steel into HW-500 jamb or mullion

(Steel Height = Mullion Height) Attach RS-15 steel to HW-200-01 anchor sleeve using FS-322

at head and sill. See Figures 1.6a & b

b. Prior to HW-183-01 shear block attachment insert HW-200-01 anchor sleeves at

HW-500 vertical mullion ends and match drill .191 dia. hole.

c. Attach HW-183-01 shear block to HW-500 vertical mullion with FS-9 fastener.

d. Install FG-5185 interior spacer gasket cut to 2" from ends and 2" gaps at horizontal to allow

for WW-352 zone plugs.

e. Install and seal HW-325 end caps to top and bottom of HW-500 vertical mullion screw boss

with (2) FS-320 #10 x 1/2" drive screw .

HW-200-01 Anchor Sleeve

(for design pressures above 70 psf)

HW-500 Intermediate Vertical Mullion

HW-183-01 Shear Block

Drill #25 - .1495" to drill a

pilot hole into steel

for (1) FS-322 Fastener

(Repeat at Sill)

(2) FS-320 Drive Screw

HW-338 for Jambs and HW-325 for Mullions

Seal and tool sealant on end caps

RS-15 Reinforcement Steel

1-1/4"

Slide HW-200-01 Anchor Sleeve with

attached RS-15 Steel into the Mullion

and then attach

HW-183-01 Shear Block

(4) FS-9 Fasteners

ALTERNATIVE REINFORCEMENT STEEL BAR

FIGURE 1.6a

FIGURE 1.6b
