Page 30

27
R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L
WW-162 cut length =
D.L.O. minus 1/4"
5/16" O weep holes locate at 1/4 points
WW-110 face cap
Weep horizontal cap
at mid-lite.
See detail below
Seal ends of pressure plate to vertical cap
7/32"
Centerline
of D.L.O
5/16" O weep hole

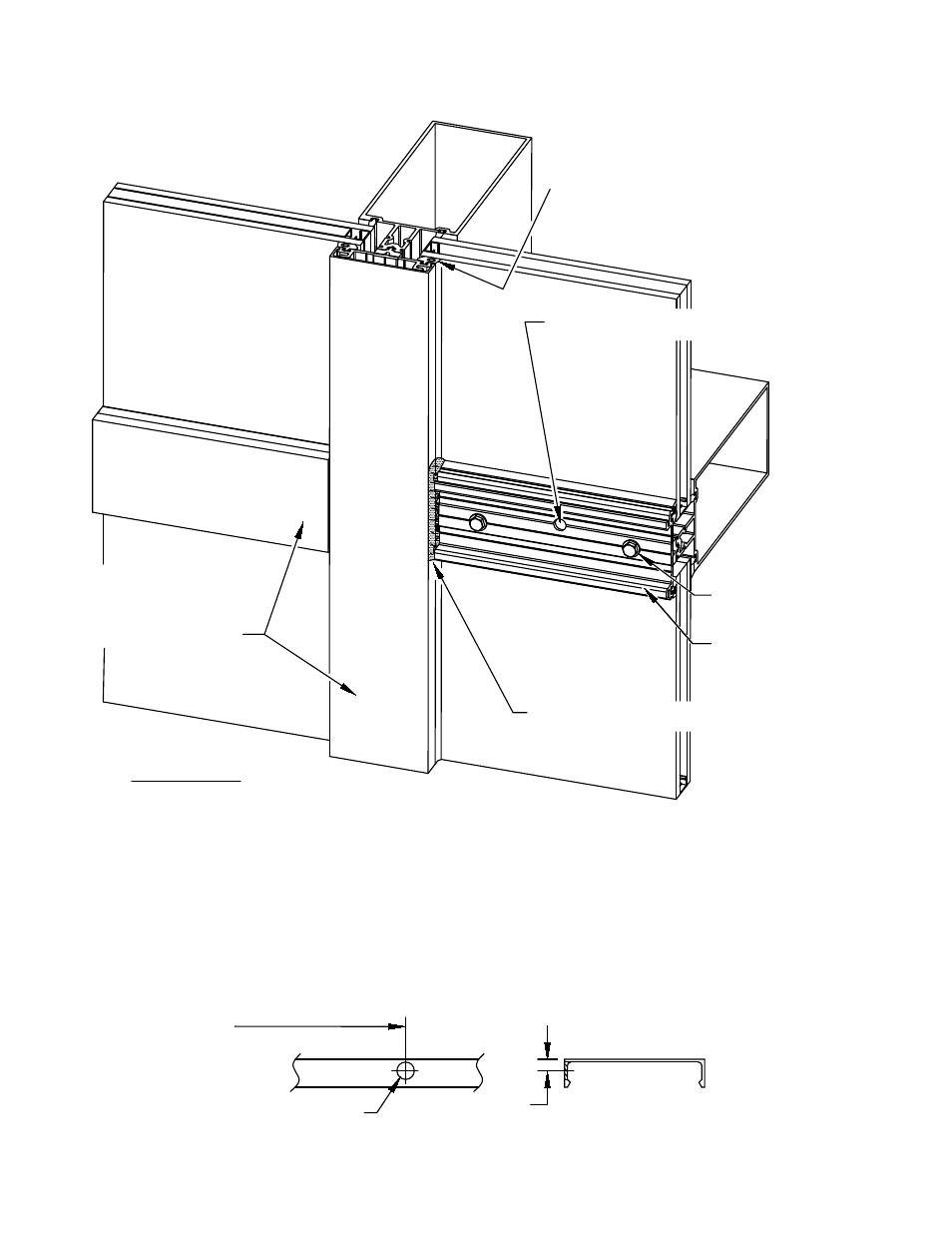

Horizontal Face Cap Fabrication
GP-117 gasket.
See notes below for
installation
Glazing Notes:
1. GP-117 gasket used on exterior of system.
2. Remove gaskets from reels and allow to relax overnight before installing.
3. Cut gaskets to allow minimum 1/4" per foot for any relaxation of gasket
that may occur after installation.
4. To ensure proper pressure on the glazing, 7/32" diameter holes may need to be drilled at the
ends of each horizontal pressure plate as required. locate at 1 1/2" maximum from the ends.
FS-325 screw
(FS-322 at 1/4" system)
FIGURE 3.5b
Glazing Instructions
GLAZING INSTRUCTIONS
