11



R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L
1.8 a. Cut all horizontal members as follows:
-HW-500 horizontal to D.L.O.
-HW-501 head, HW-502 Sill, HW-532 roll over horizontal, HW-533 roll
under horizontal, WW-237 filler to D.L.O. minus 1/16"
b. Drill (2) #11 - .191" holes and counter sink locate 3/4" from each end at "V" grooves
c. Slide FG-5185 spacer gasket into reglet on all horizontal members cut to D.L.O. size as
shown in FIGURE 1.8b.
D.L.O.
HW-500 horizontal mullion, (HW-501 head,
HW-532 roll over horizontal, HW-533 roll
under horizontal WW-237 filler and
HW-502 sill will have the same fabrication
except D.L.O minus 1/16")
3/4"
Drill (2) #11 - .191" holes and
counter sink. Locate .75" from
each end of member.
D.L.O.
FG-5185
Spacer Gasket

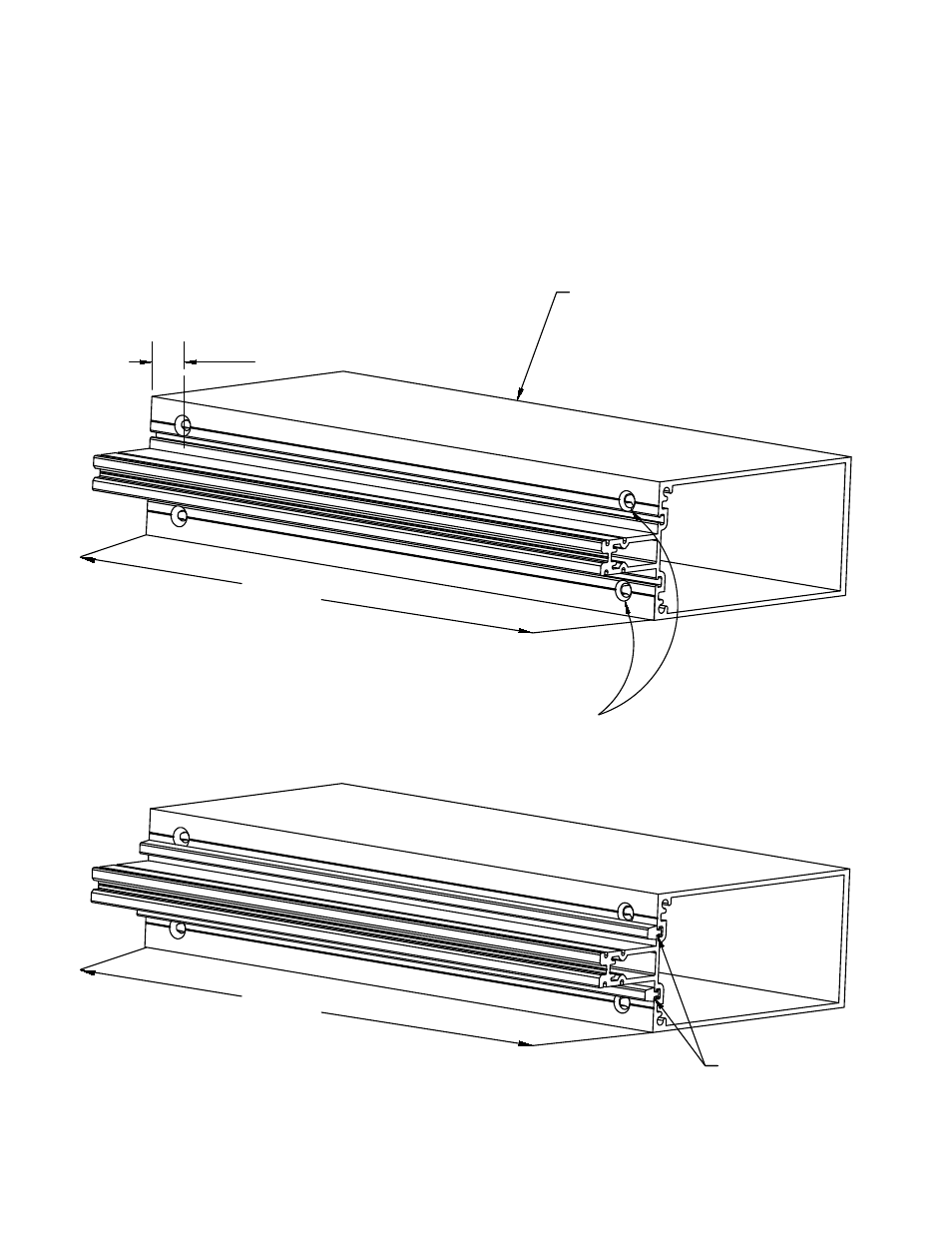

FIGURE 1.8a
FIGURE 1.8b
HORIZONTAL MEMBER FABRICATION
