R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L

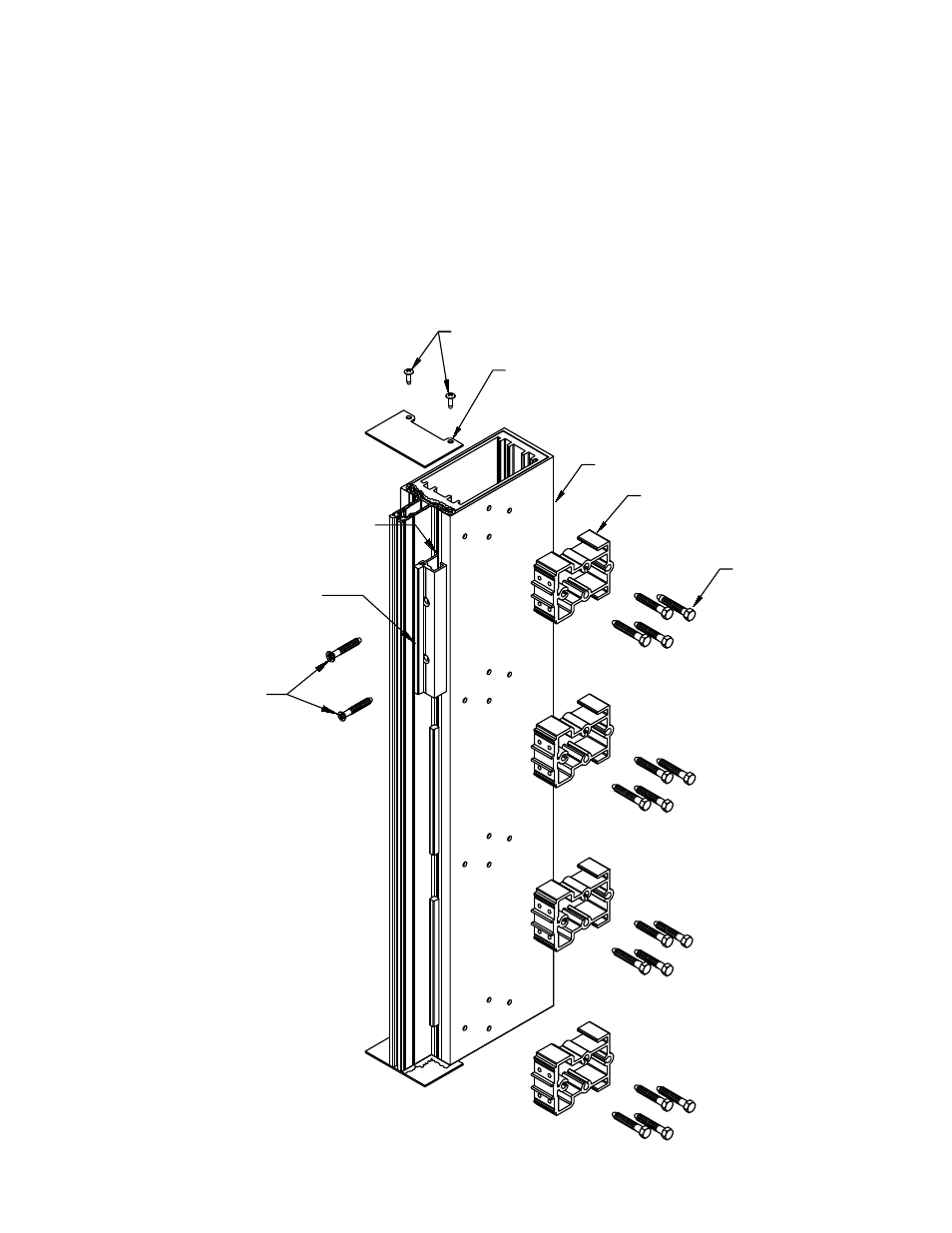

FG-5185 Interior Spacer Gasket
Apply Dow 795 sealant bed to
riglet prior to placing
HW-130 Glazing Adaptor in riglet
Attach with
FS-119 Fasteners
HW-500 Intermediate Vertical Mullion
HW-183-01 Shear Block
(4) FS-9 Fasteners
(2) FS-320 Drive Screw
HW-338 for Jambs and HW-325 for Mullions
1.7 a. Cut HW-130 glazing adaptor to D.L.O. plus 1 5/8".
b. Drill #9 (.1960") fastener hole 12" O.C. 1" off ends.
c. Bed glazing reglet with Dow Corning 795 Sealant.
d. Drill a hole and attach HW-130 glazing adaptor with FS-119 fastener.
e. Install FG-5185 interior spacer gasket cut to same length as HW-130 glazing adaptor.
f. HW-130 glazing adaptors for horizontal members are cut to D.L.O.
9/16" OPTIONAL GLAZING ADAPTOR FABRICATION
FIGURE 1.7
