32



R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L

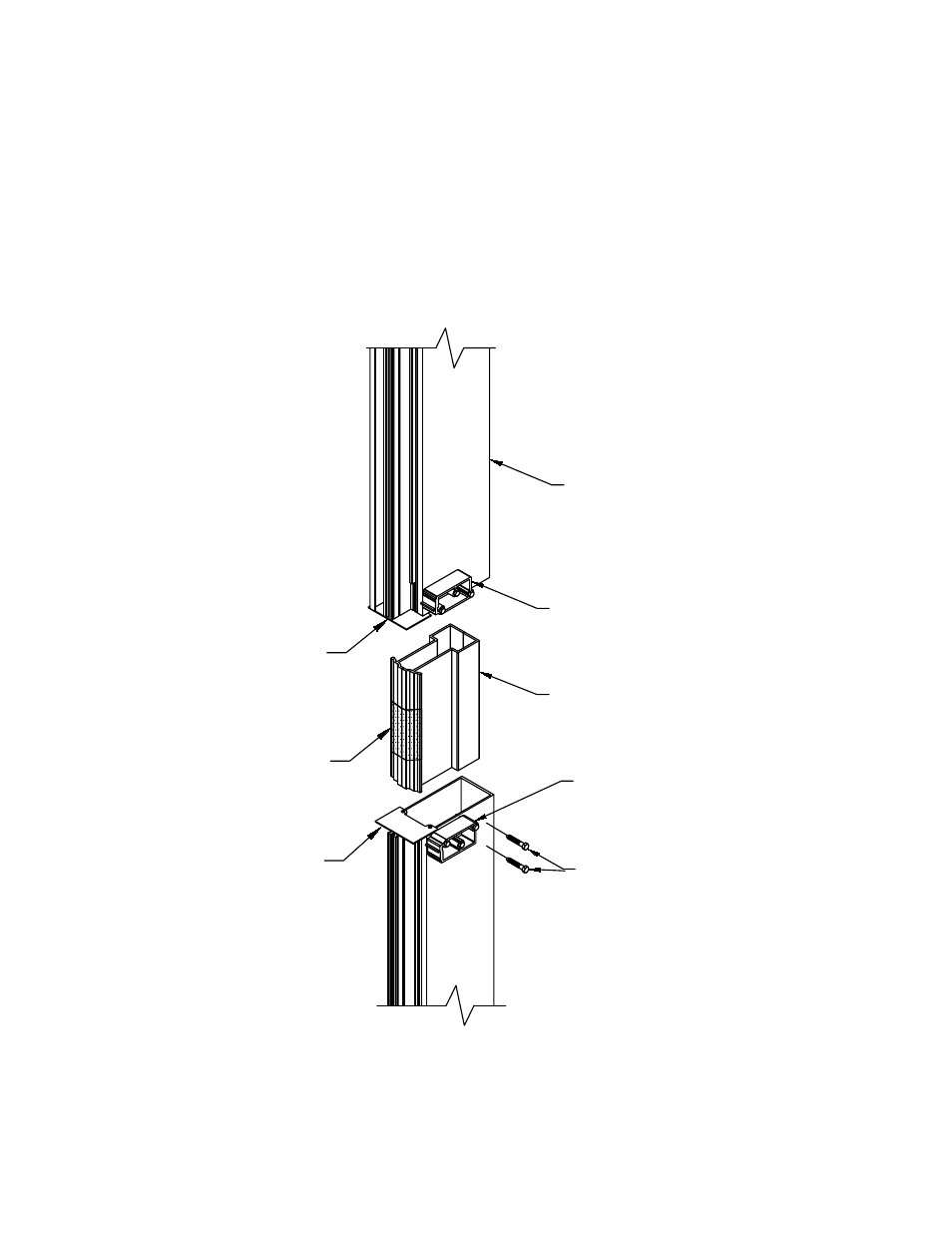

STACKED HORIZONTAL INSTALLATION
HW-500 Jamb
HW-184 Stack Shear Block
HW-194-01 Splice Sleeve
Apply Bond Breaker Tape
along face of splice
5.0 a. Apply bond breaker tape to HW-194-01 splice
b. Insert HW-194-01 splice into bottom half of HW-500 mullion.
c. Attach splice to bottom half of HW-500 mullion with FS-8 fastener (2) per side.
d. Insert top half of HW-500 mullion on to splice. Insert anchors on both ends and install into opening.
Corner mullion has similar assembly.
FS-8 Fastener
HW-184 Stack Shear Block
FIGURE 5.0
HW-338 End Cap
HW-338 End Cap
