Oldcastle BuildingEnvelope Reliance StormMax - Manual (Page 15)

12



R E L I A N C E S T O R M M A X I N S T A L L A T I O N M A N U A L
1.9 a. Cut WW-162 pressure plate to D.L.O. minus 1/4" for horizontal members.
b. Drill (2) 5/16" weep holes at 1/4 points on "V" grooves of WW-162 pressure plate. See Figure 1.9a
c. Cut WW-162 pressure plates vertical members to frame height minus 1/4".
d. Cut GP-117 gasket to D.L.O. plus 1/4" for relaxation on horizontal members. Vertical members
are cut to frame height plus 1/4". Crowd gasket into riglet. See FIGURE 1.9b
PRESSURE PLATE FABRICATION
WW-162 Pressure Plate
Locate weep holes at quarter points
Drill (2) 5/16" holes
Locate at 1/4 points
each end of member.
D.L.O MINUS 1/4"
GP-117 Gasket
WW-162 Pressure Plate

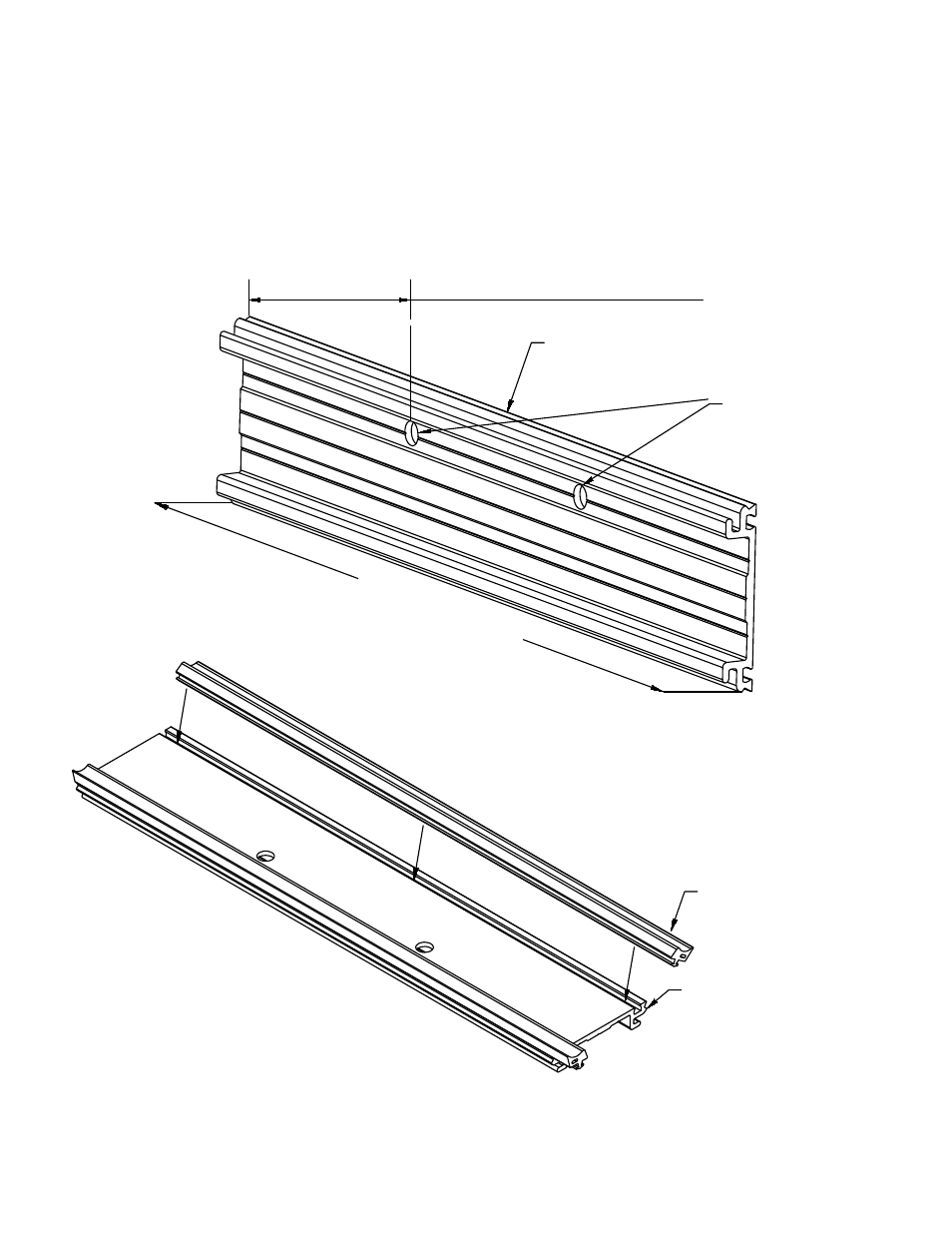

FIGURE 1.9a
Horizontal Pressure
Plate Fabrication
FIGURE 1.9b
Gasket Installation
