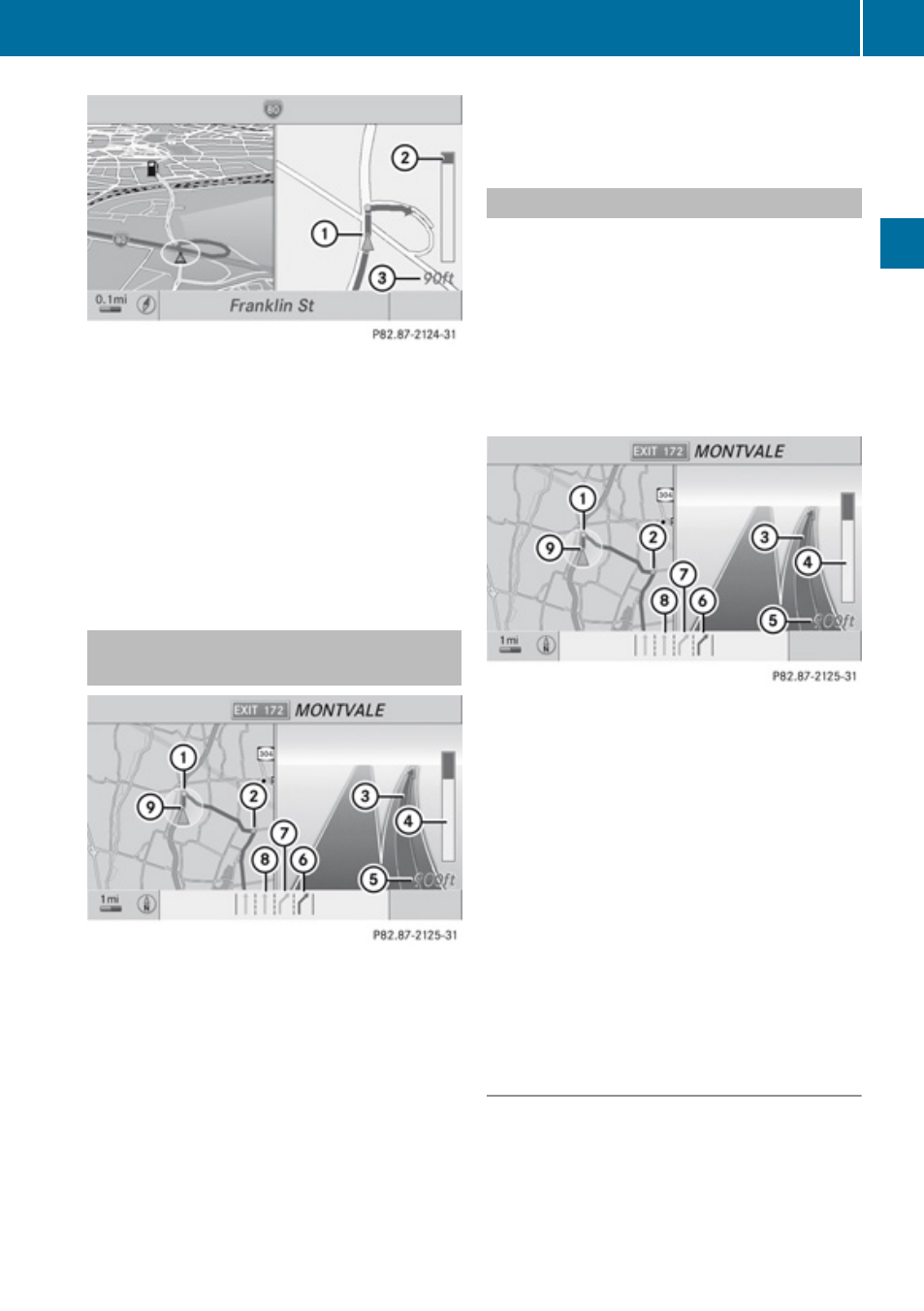

1 Current vehicle location, tip of the triangle
points in the vehicle’s direction of travel
2
Visual distance indicator to the next
driving maneuver
3 Distance information to the driving
maneuver
Once the driving maneuver is complete,
COMAND will automatically switch back to
full-screen display.
Example Display without Driving
Maneuver
1
Route (highlighted in blue)
2 Current vehicle location
3 Road currently being driven down
4 Set map orientation, for explanation and
setting see (
Y page 53)
5 Set map scale, for explanation and setting
see (
Y page 53)
i The map may display other symbols, e.g.
the destination < or the stopover
destination = (if a stopover destination
has been entered).
Traffic Lane Recommendations
On multi-lane roads, COMAND may display
traffic lane recommendations for imminent
driving maneuvers. For this there must be
corresponding data available on the digital
map.
With respect to the next two driving
maneuvers, COMAND displays the traffic lane
recommendations 6, 7 and 8.
1 Point of the next driving maneuver
2 Point of the second driving maneuver.
3 Next driving maneuver, exit on right here
4 Visual distance indicator to the next
driving maneuver
5
Distance information to the next driving
maneuver
6 Recommended lane
7 Possible lane
8 Lane not recommended
9 Current vehicle location, tip of the triangle
points in the vehicle’s direction of travel
Explanation of the Traffic Lane
Recommendations
R
Recommended lane 6:
From this lane it is possible to carry out the
next two driving maneuvers without
changing lanes.
R
Possible lane 7:
