Bag e (continued) – Losi XXX-S Sport User Manual

Page 24

background image

27

136

30

APPLY CHASSIS
TAPE (158) HERE

BAG E (Continued)

21

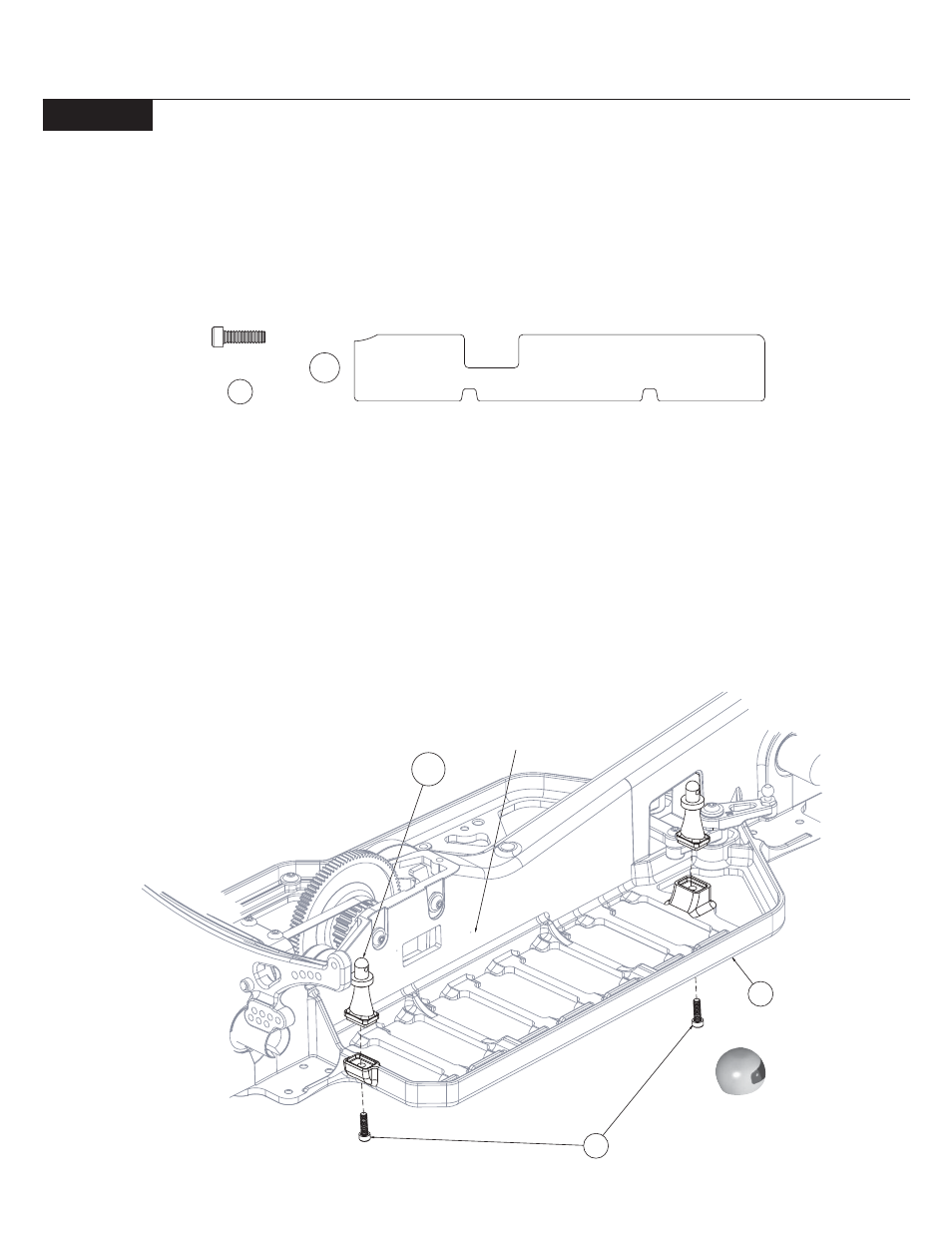

Step E-11

Figure 49

q

1. Install the Battery Strap Posts (136) to the Chassis (27), as shown, by placing the square base of the Post in the countersunk pockets on

the drivers right side of the Chassis.

q

2. Thread a 4-40 x 3/8" Cap Head Screw (30) through the bottom of the Chassis into each of the Battery Mounting Posts and tighten.

q

3. Peel the backing off of the Chassis Tape for the Battery (158) and align the cut-outs in the tape with the appropriate places on the Chassis

and apply the Tape to the Chassis as indicated in Figure 49.

30

Battery Post Install

158
