BAG D (Continued)
13
Step D-3
Step D-4
Figure 29
Figure 30

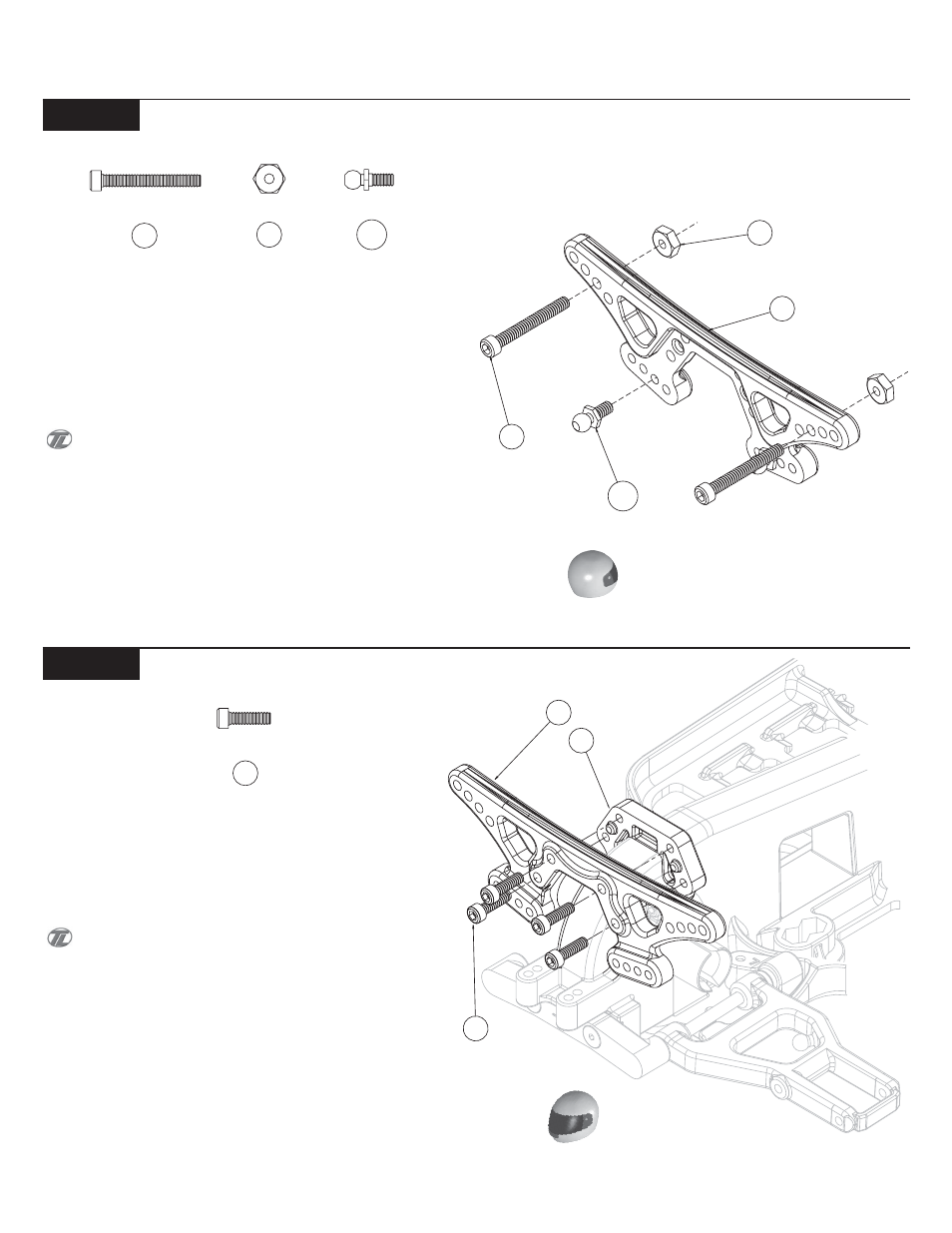

q 1. Insert a 4-40 x 7/8" Cap Head Screw (66) on either side of the
Shock Tower (69) through the second hole out from the middle on the
top of the Shock Tower. Secure the Screws to the Tower by threading
a 4-40 Zinc Nut (67) over each Screw and tightening.
The screws should extend away from the recessed area in the
front shock tower.
q 2. Thread a 0.200" Short Head Ball Stud (155) into the second
hole out from the middle of the Shock Tower in the lower four holes
on either side of the Shock Tower.
66 67
q 1. Attach the Front Shock Tower (69) to the Front of the Chassis
(27) with four 4-40 x 3/8" Cap Head Screws (30). The Screws thread
into the top-most and bottom-most holes, surrounding the posts,
which stick out of the front of the Chassis (27). The Shock Tower
should interlock with the posts on the Chassis.
There is a short thread-cutting screw included in the wrench
bag. This screw can be used to tap threads in the holes in the main
Chassis. Pre-tapping these holes makes it easier to install the screws
during assembly.
30
Front Shock Tower Assembly
Front Shock Tower Install
