BAG C (Continued)
Step C-6
Step C-7
Figure 26
Figure 25B
Step C-8
Figure 25A
11

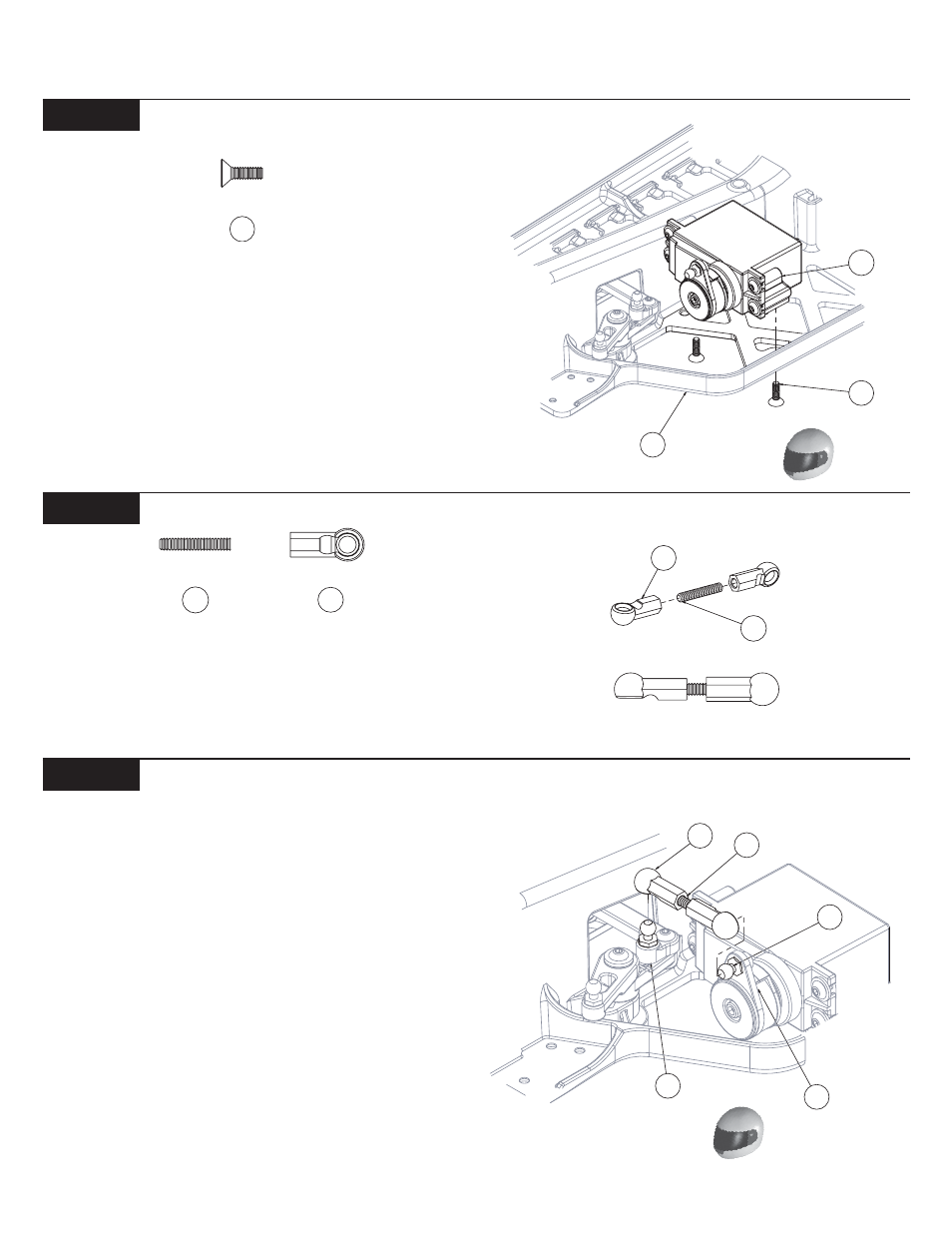

q 1. Install the servo into the Chassis (27) as shown in Figure 24.
The pins from both Servo Mounting Posts (55), (56) should fit into
the holes and sit flat against the Chassis.
q 2. Secure the servo to the Chassis with two 4-40 x 3/8" Flat Head
Screws (31).
31
q 1. Thread a Short Plastic Rod End (58) onto each end of the 4-40
x 5/8" Threaded Rod (57). Tighten both sides equally until the Turn-
buckle is the same length as the one shown in Figure 25B.
58 57
q 1. Attach the Rod End (58) to the Ball Stud (43) in the Servo Saver
Arm and the other to the Ball Stud in the Draglink (48) as indicated in
Figure 26.
Servo Install
Servo to Draglink Turnbuckle
Servo to Draglink Turnbuckle Install
55
27
31
Figure 24
53
48
43
57
58
