10. AMI BIOS Configuration
PCI-760 – User’s Guide (V1.10) 73
10.7.1.3. Configure DRAM Timing by SPD
The available settings are: Enabled and Disabled.

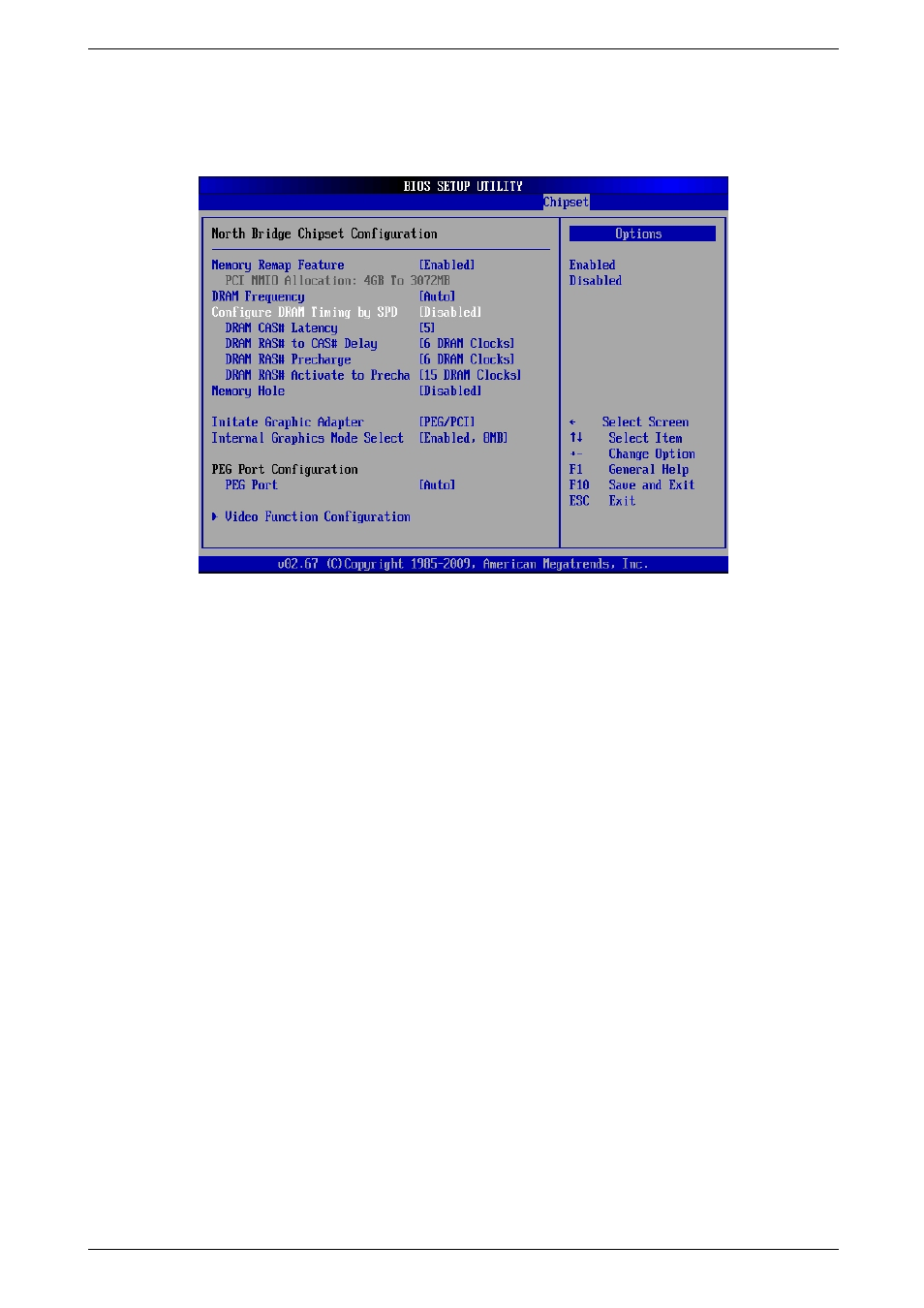

If the [ Configure DRAM Timing by SPD ] option is set to “disabled” are available additional settings (refer to the
picture below).
10.7.1.4. DRAM CAS# Latency
Available settings: 3, 4, 5 and 6.
10.7.1.5. DRAM RAS# to CAS# Delay
Available settings: 3 DRAM Clocks, 4 DRAM Clocks, 5 DRAM Clocks and 6 DRAM Clocks .
10.7.1.6. DRAM RAS# Precharge
Available settings: 3 DRAM Clocks, 4 DRAM Clocks, 5 DRAM Clocks and 6 DRAM Clocks .
10.7.1.7. DRAM RAS# Activate to Precha
Available settings: 9 DRAM Clocks, 10 DRAM Clocks, 11 DRAM Clocks,
12 DRAM Clocks, 13 DRAM Clocks, 14 DRAM Clocks and 15 DRAM Clocks .
10.7.1.8. Memory Hole
In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped
into the memory space 15MB-16MB.
The available settings are: 15MB-16MB and Disabled .
10.7.1.9. Initiate Graphic Adapter
These settings allow you to select the graphics controller used as primary boot device.The available settings are: IGD,
PCI/IGD .
PEG : PCI Express Graphics
PCI : PCI Device
10.7.1.10. PEG Port Configuration
PEG Port: Available settings are: Disabled and Auto .
